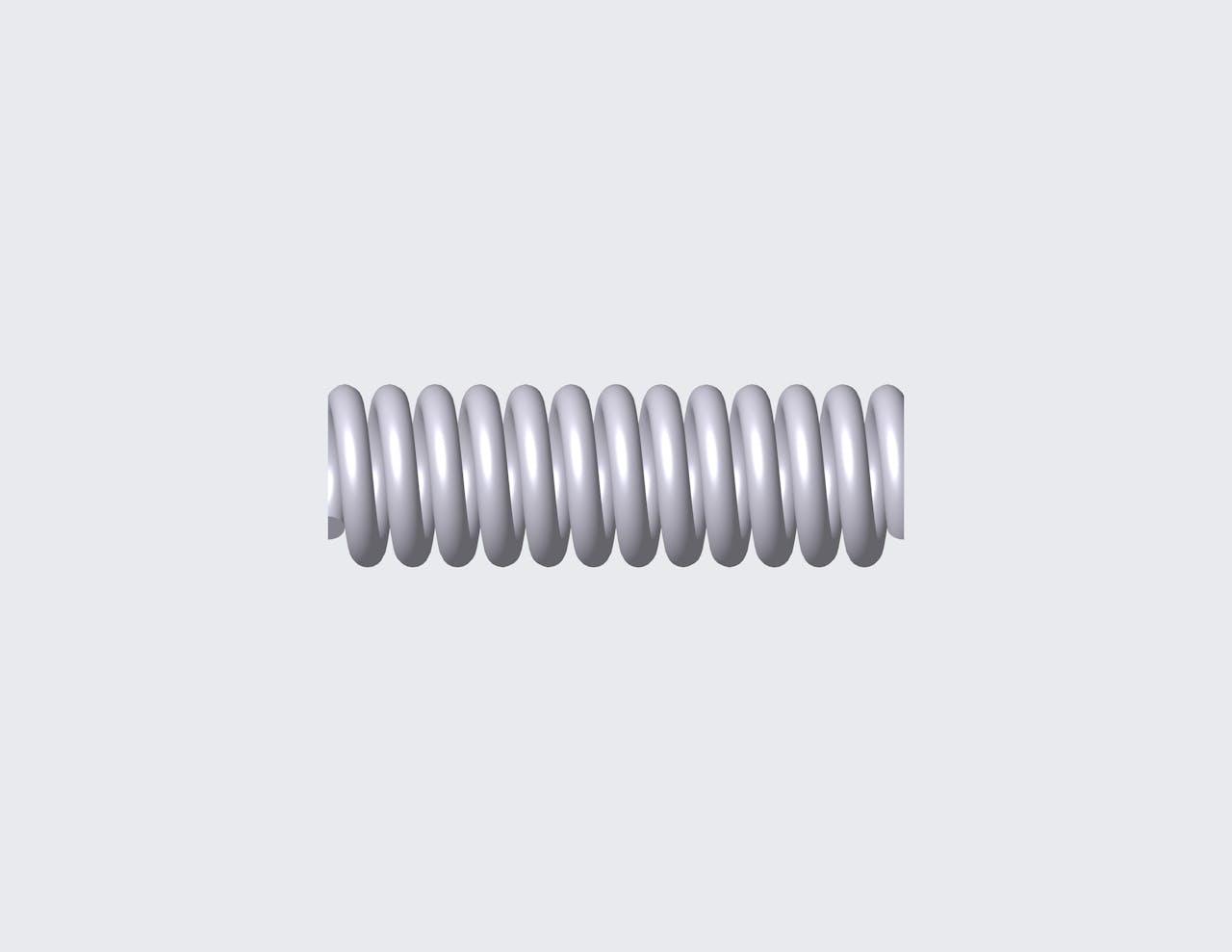

50871SCS - 3.543" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 1.128", and an I.D. of 0.714".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50871S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.543 in |
| Inside Diameter | 0.714 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 1.128 in |
| Rate | 294.018 lbs/in |
| SKU | 50871SCS |
| Solid Length | 2.485 in |
| Suggested Max Deflection | 0.533 in |
| Suggested Max Load | 156.63 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.207 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50871S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 89.99 mm |
| Inside Diameter | 18.14 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 28.65 mm |
| Rate | 51.48 N/mm |
| SKU | 50871SCS |
| Solid Length | 63.12 mm |
| Suggested Max Deflection | 13.54 mm |
| Suggested Max Load | 696.69 N |
| Total Coils | 12 |
| Wire Diameter | 5.26 mm |
The 50871S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 50871SCS compression spring is designed with a free length of 2.953" total of 10.1 coils, and a rate of 362.986 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50871S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 50871SCS compression spring is designed with a free length of 2.953" total of 10.1 coils, and a rate of 362.986 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50871S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
