B14-68CS - 1.13" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

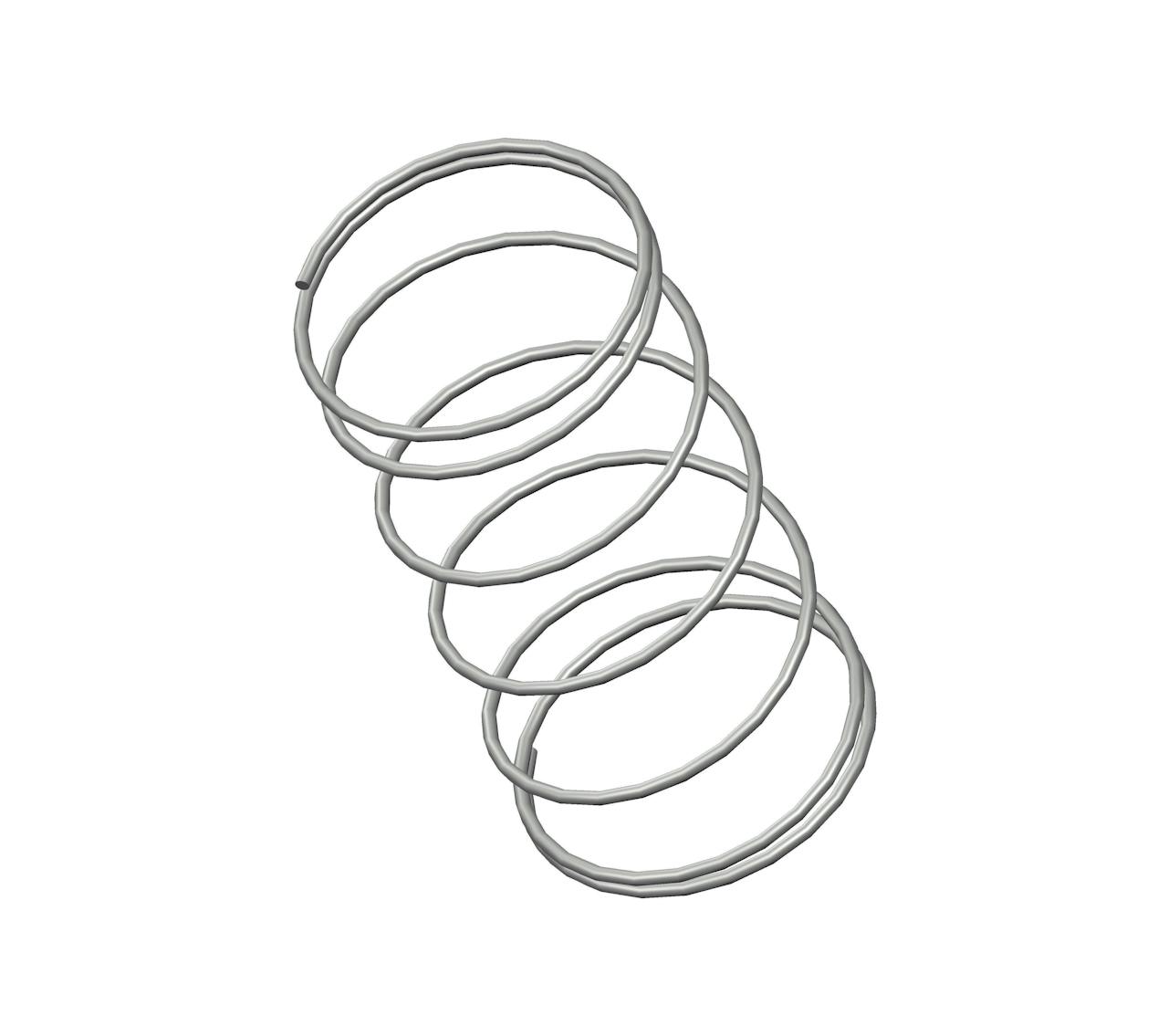

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.562", and an I.D. of 0.518".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B14-68
Ends Closed
Finish Zinc
Free Length 1.13 in
Inside Diameter 0.518 in
Material Music Wire
Outside Diameter 0.562 in
Part Type Standard
Rate 0.43 lbs/in
SKU B14-68CS
Solid Length 0.18 in
Suggested Max Deflection 0.95 in
Suggested Max Load 0.41 lbf
Total Coils 7
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B14-68
Ends Closed
Finish Zinc
Free Length 28.7 mm
Inside Diameter 13.16 mm
Material Music Wire
Outside Diameter 14.27 mm
Part Type Standard
Rate 0.08 N/mm
SKU B14-68CS
Solid Length 4.57 mm
Suggested Max Deflection 24.13 mm
Suggested Max Load 1.82 N
Total Coils 7
Wire Diameter 0.56 mm
The B14-68CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.022" diameter music wire, the B14-68 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 0.41 lbf without succumbing to fatigue.

We manufacture the B14-68 design to provide a compression spring that is 1.13" long at rest and provides a consistent rate of 0.43 lbs/in along its recommended maximum of 0.95" deflection. For best results, your application should fully accommodate the inner (0.518") and outer (0.562") diameters of this spring and be designed for its closed end configuration.
