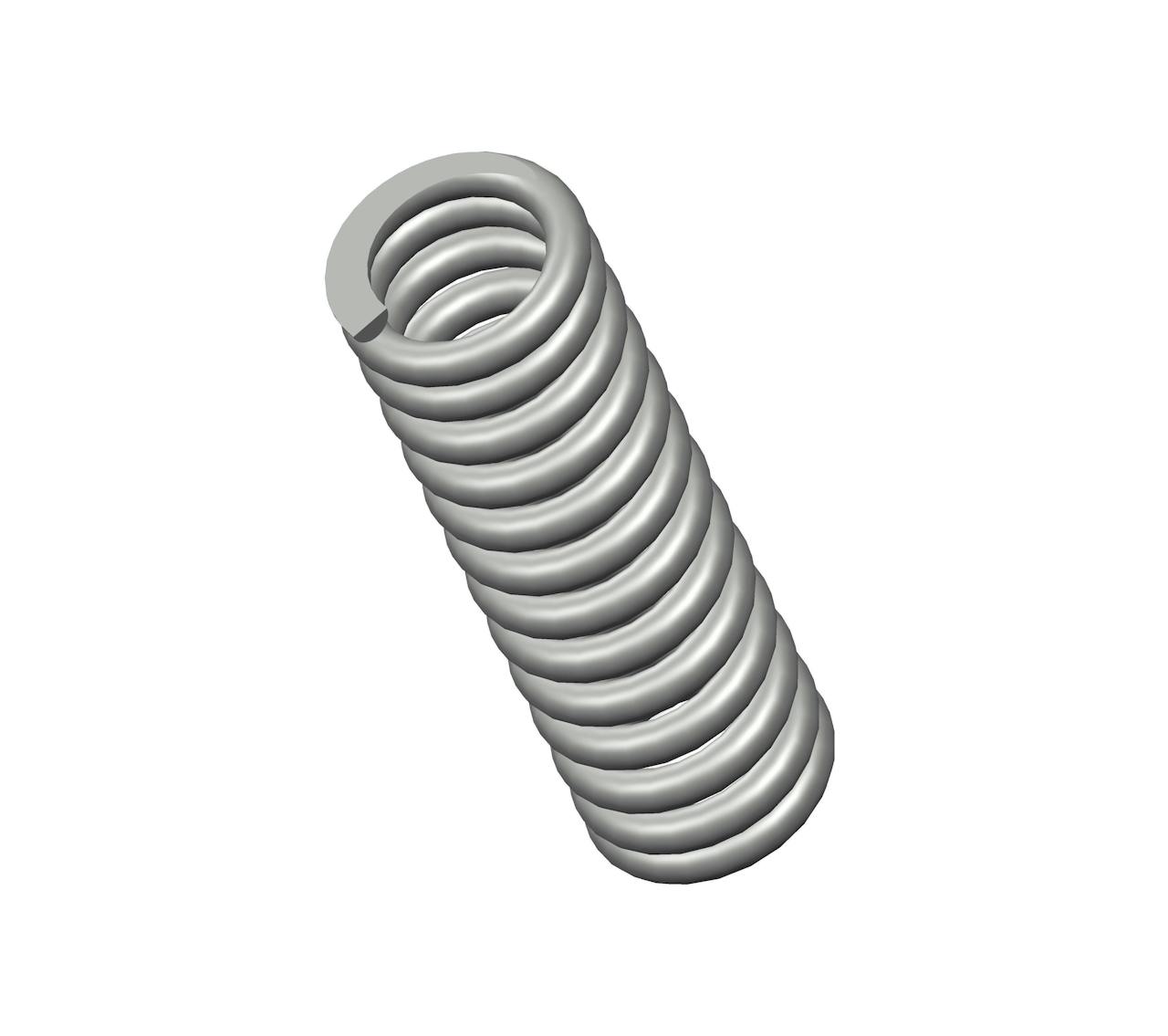

73295CS - 10" Oil Tempered Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from oil tempered with 13.3 coils and closed & ground ends. This spring features an O.D. of 3.156", and an I.D. of 2.094".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73295
Ends Closed & Ground
Finish None
Free Length 10 in
Inside Diameter 2.094 in
Material Oil Tempered
Outside Diameter 3.156 in
Part Type Standard
Rate 559 lbs/in
SKU 73295CS
Solid Length 7.06 in
Suggested Max Deflection 2.1 in
Suggested Max Load 1188 lbf
Total Coils 13.3
Wire Diameter 0.531 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73295
Ends Closed & Ground
Finish None
Free Length 254 mm
Inside Diameter 53.19 mm
Material Oil Tempered
Outside Diameter 80.16 mm
Part Type Standard
Rate 97.88 N/mm
SKU 73295CS
Solid Length 179.32 mm
Suggested Max Deflection 53.34 mm
Suggested Max Load 5284.22 N
Total Coils 13.3
Wire Diameter 13.49 mm
The 73295CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.531" diameter oil tempered, the 73295 spring design exhibits reliable strength across its 13.3 active coils, withstanding repeated compression cycles with a maximum load of 1188 lbf without succumbing to fatigue.

We manufacture the 73295 design to provide a compression spring that is 10" long at rest and provides a consistent rate of 559 lbs/in along its recommended maximum of 2.1" deflection. For best results, your application should fully accommodate the inner (2.094") and outer (3.156") diameters of this spring and be designed for its closed & ground end configuration.
