B14-28CS - 1.09" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

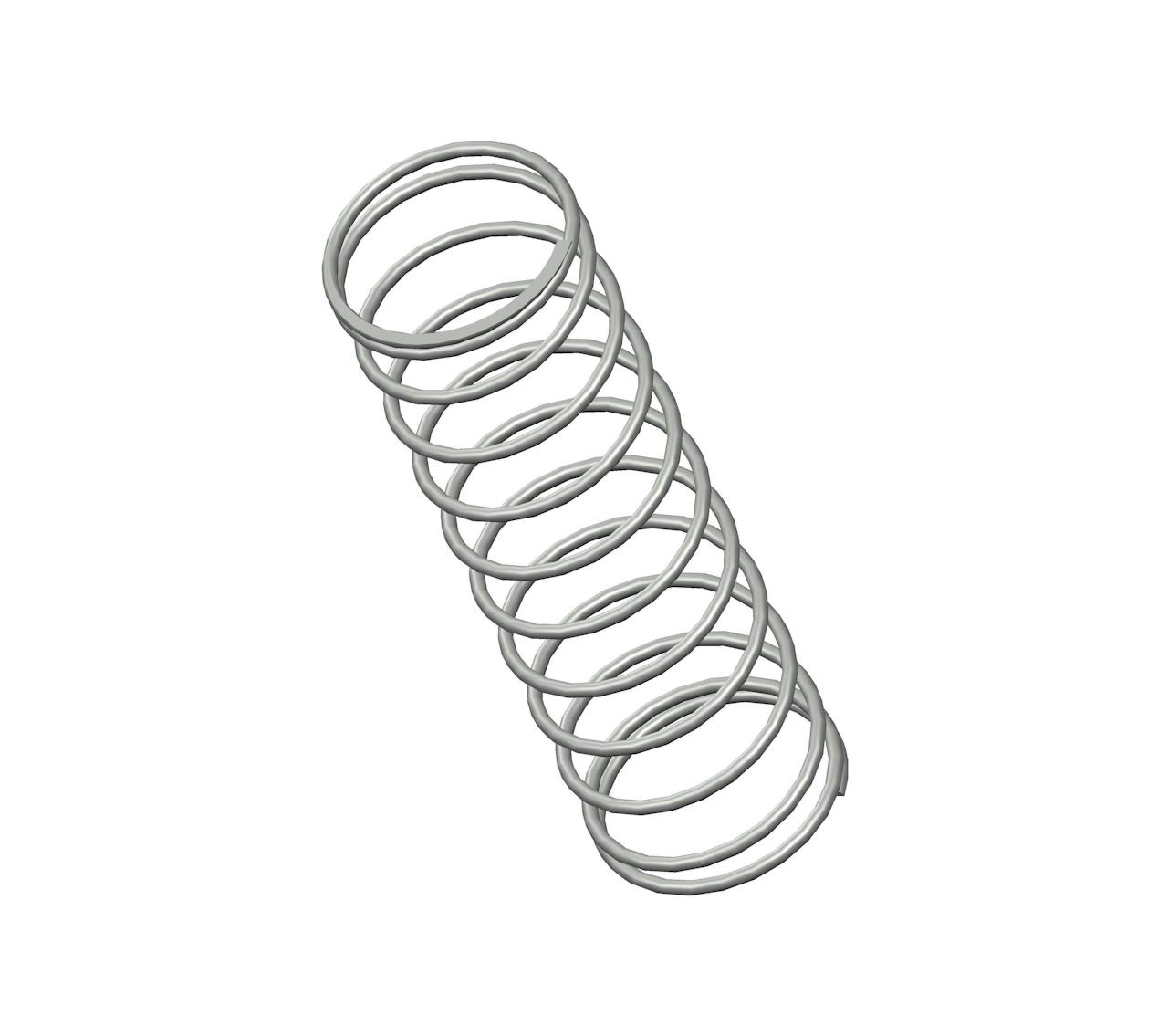

Compression spring manufactured from music wire with 12 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.29".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-28 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.09 in |
| Inside Diameter | 0.29 in |
| Material | Music Wire |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 0.63 lbs/in |
| SKU | B14-28CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.87 in |
| Suggested Max Load | 0.55 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.019 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B14-28 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 27.69 mm |
| Inside Diameter | 7.37 mm |
| Material | Music Wire |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 0.11 N/mm |
| SKU | B14-28CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 22.1 mm |
| Suggested Max Load | 2.45 N |
| Total Coils | 12 |
| Wire Diameter | 0.48 mm |
The compression spring B14-28CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B14-28 compression spring design exhibits exceptional tensile strength and resilience.
The B14-28 design is manufactured with a free length of 1.09", with an outer diameter of 0.328", an inner diameter of 0.29", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.63 lbs/in.
The B14-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B14-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B14-28 design is manufactured with a free length of 1.09", with an outer diameter of 0.328", an inner diameter of 0.29", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.63 lbs/in.
The B14-28CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B14-28 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
