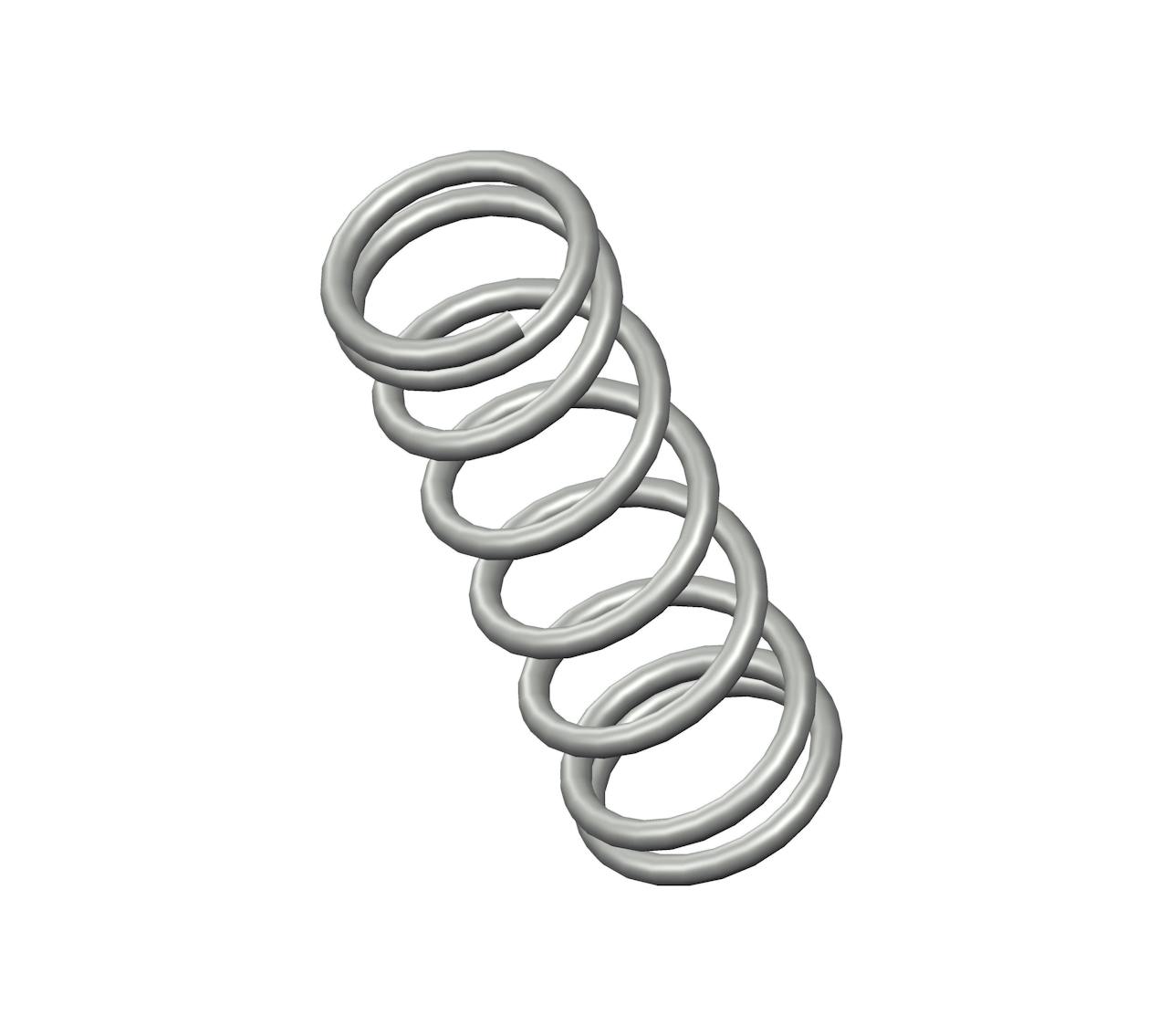

B11-31CS - 0.72" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 7.75 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.182".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-31 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 0.72 in |
| Inside Diameter | 0.182 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 13 lbs/in |
| SKU | B11-31CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 4.2 lbf |
| Total Coils | 7.75 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B11-31 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 18.29 mm |
| Inside Diameter | 4.62 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 2.28 N/mm |
| SKU | B11-31CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 18.68 N |
| Total Coils | 7.75 |
| Wire Diameter | 0.66 mm |
The compression spring B11-31CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the B11-31 compression spring design exhibits exceptional tensile strength and resilience.
The B11-31 design is manufactured with a free length of 0.72", with an outer diameter of 0.234", an inner diameter of 0.182", and a total of 7.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The B11-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B11-31 design is manufactured with a free length of 0.72", with an outer diameter of 0.234", an inner diameter of 0.182", and a total of 7.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 13 lbs/in.
The B11-31CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B11-31 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
