PP-15CS - 0.69" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

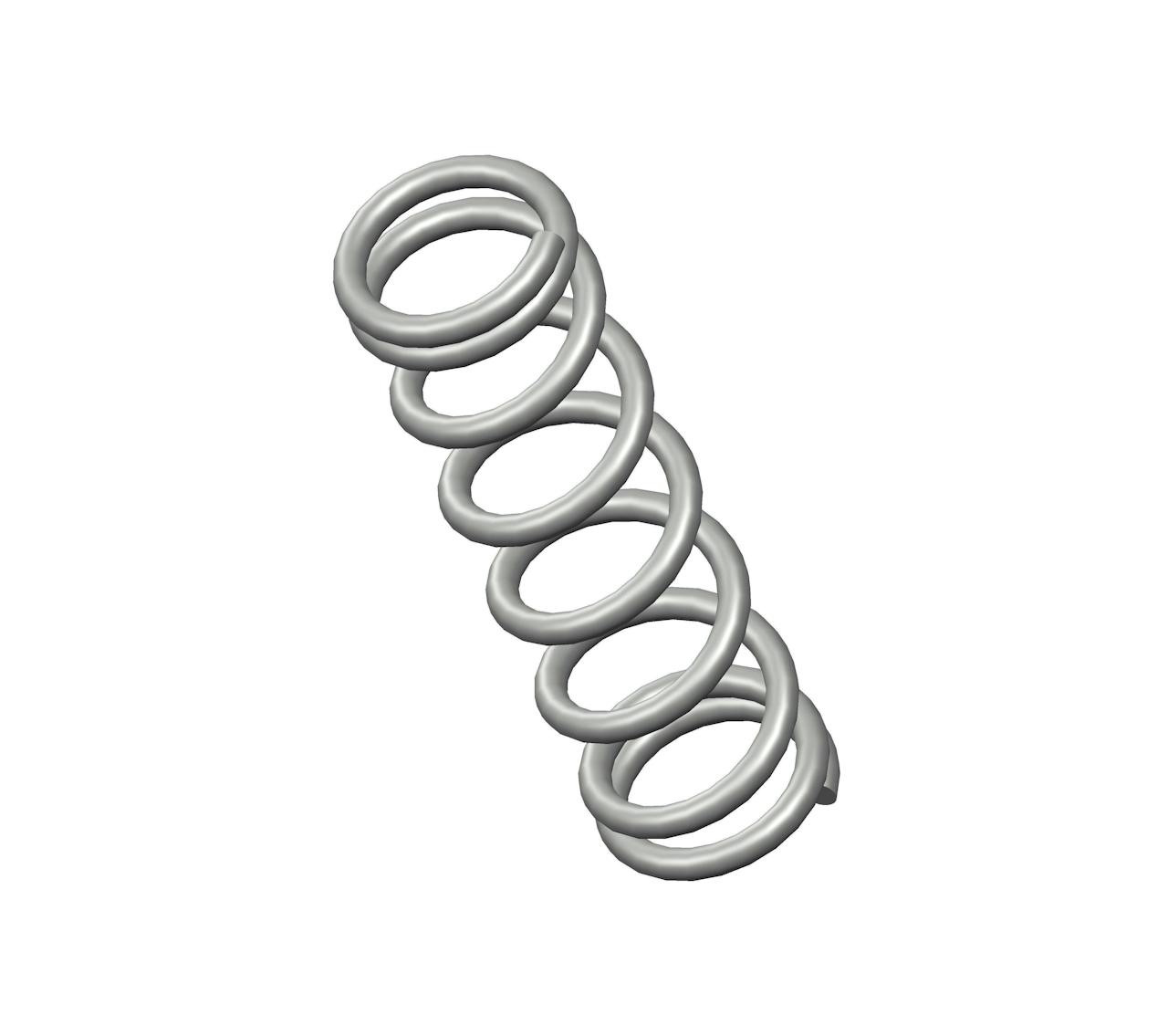

Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.138".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name PP-15
Ends Closed
Finish Black Oxide
Free Length 0.69 in
Inside Diameter 0.138 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 22 lbs/in
SKU PP-15CS
Solid Length 0.23 in
Suggested Max Deflection 0.21 in
Suggested Max Load 4.6 lbf
Total Coils 8
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name PP-15
Ends Closed
Finish Black Oxide
Free Length 17.53 mm
Inside Diameter 3.51 mm
Material Music Wire
Outside Diameter 4.78 mm
Part Type Standard
Rate 3.85 N/mm
SKU PP-15CS
Solid Length 5.84 mm
Suggested Max Deflection 5.33 mm
Suggested Max Load 20.46 N
Total Coils 8
Wire Diameter 0.64 mm
The compression spring PP-15CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the PP-15 compression spring design exhibits exceptional tensile strength and resilience.

The PP-15 design is manufactured with a free length of 0.69", with an outer diameter of 0.188", an inner diameter of 0.138", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.

The PP-15CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring PP-15 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
