Century Spring

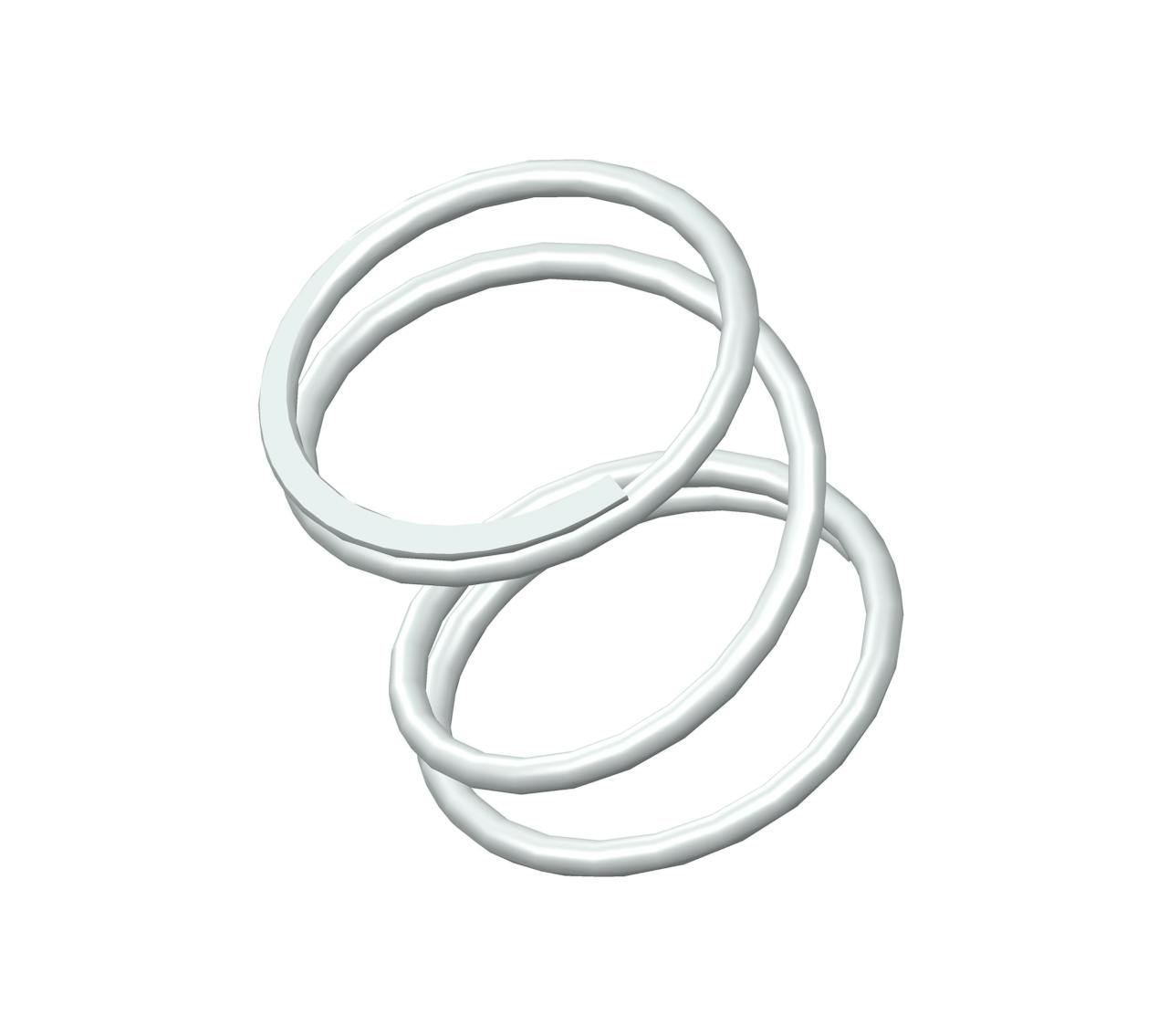

B10-58CS - 0.63" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3.75 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.521".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B10-58
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.521 in
Material 302/304 Stainless Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 15 lbs/in
SKU B10-58CS
Solid Length 0.17 in
Suggested Max Deflection 0.34 in
Suggested Max Load 5.1 lbf
Total Coils 3.75
Wire Diameter 0.044 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B10-58
Ends Closed & Ground
Finish None
Free Length 16 mm
Inside Diameter 13.23 mm
Material 302/304 Stainless Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 2.63 N/mm
SKU B10-58CS
Solid Length 4.32 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 22.68 N
Total Coils 3.75
Wire Diameter 1.12 mm
The B10-58CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.044" diameter 302/304 stainless steel, the B10-58 spring design exhibits reliable strength across its 3.75 active coils, withstanding repeated compression cycles with a maximum load of 5.1 lbf without succumbing to fatigue.

We manufacture the B10-58 design to provide a compression spring that is 0.63" long at rest and provides a consistent rate of 15 lbs/in along its recommended maximum of 0.34" deflection. For best results, your application should fully accommodate the inner (0.521") and outer (0.609") diameters of this spring and be designed for its closed & ground end configuration.
