O-151CS - 0.56" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

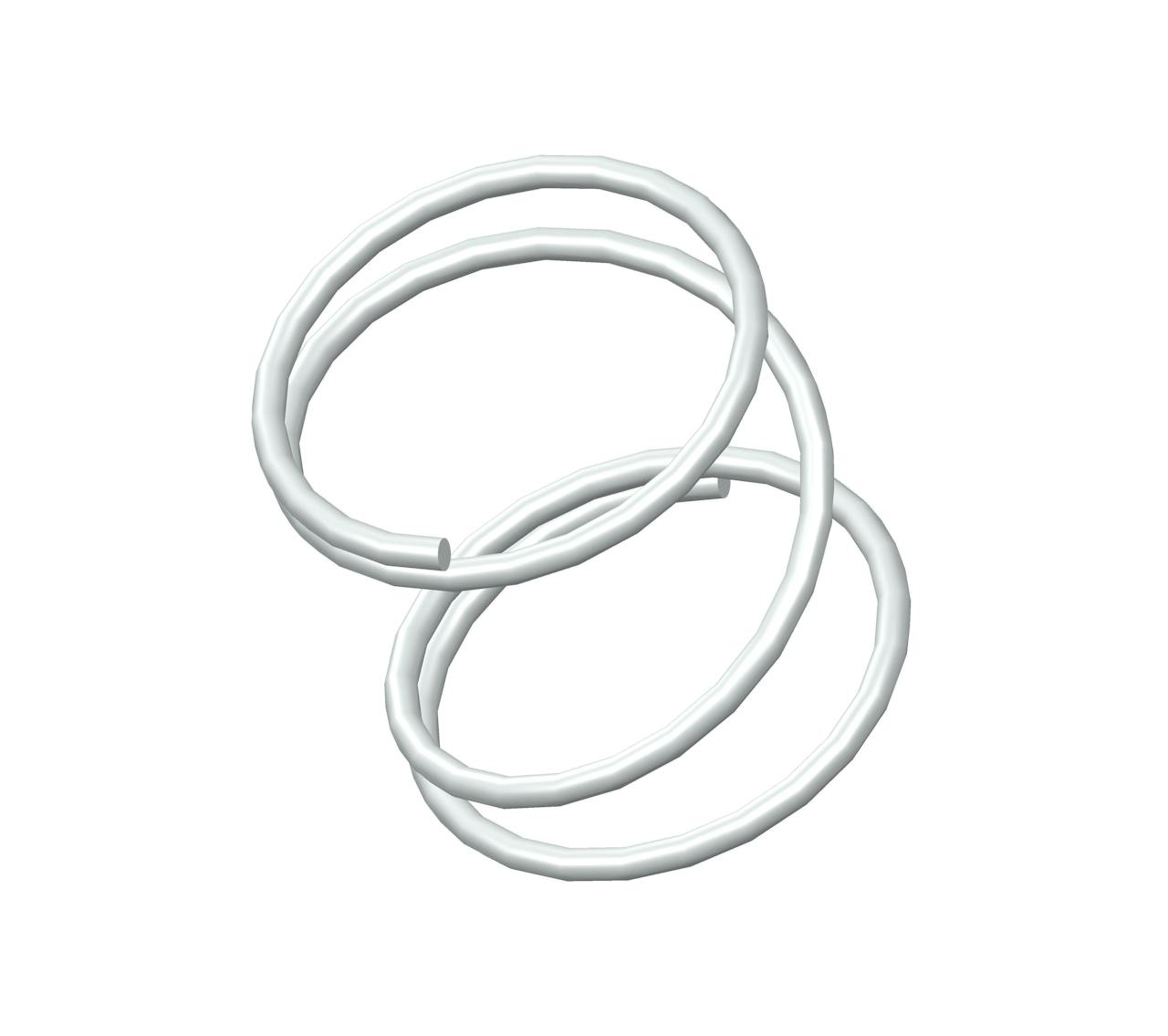

Compression spring manufactured from 302/304 stainless steel with 3.5 coils and closed ends. This spring features an O.D. of 0.546", and an I.D. of 0.478".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-151 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.478 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 8.3 lbs/in |
| SKU | O-151CS |
| Solid Length | 0.15 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 2.7 lbf |
| Total Coils | 3.5 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | O-151 |
| Ends | Closed |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 12.14 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 1.45 N/mm |
| SKU | O-151CS |
| Solid Length | 3.81 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 12.01 N |
| Total Coils | 3.5 |
| Wire Diameter | 0.86 mm |
The O-151CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.034" diameter 302/304 stainless steel, the O-151 spring design exhibits reliable strength across its 3.5 active coils, withstanding repeated compression cycles with a maximum load of 2.7 lbf without succumbing to fatigue.
We manufacture the O-151 design to provide a compression spring that is 0.56" long at rest and provides a consistent rate of 8.3 lbs/in along its recommended maximum of 0.33" deflection. For best results, your application should fully accommodate the inner (0.478") and outer (0.546") diameters of this spring and be designed for its closed end configuration.
We manufacture the O-151 design to provide a compression spring that is 0.56" long at rest and provides a consistent rate of 8.3 lbs/in along its recommended maximum of 0.33" deflection. For best results, your application should fully accommodate the inner (0.478") and outer (0.546") diameters of this spring and be designed for its closed end configuration.
