B1-62CS - 1.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

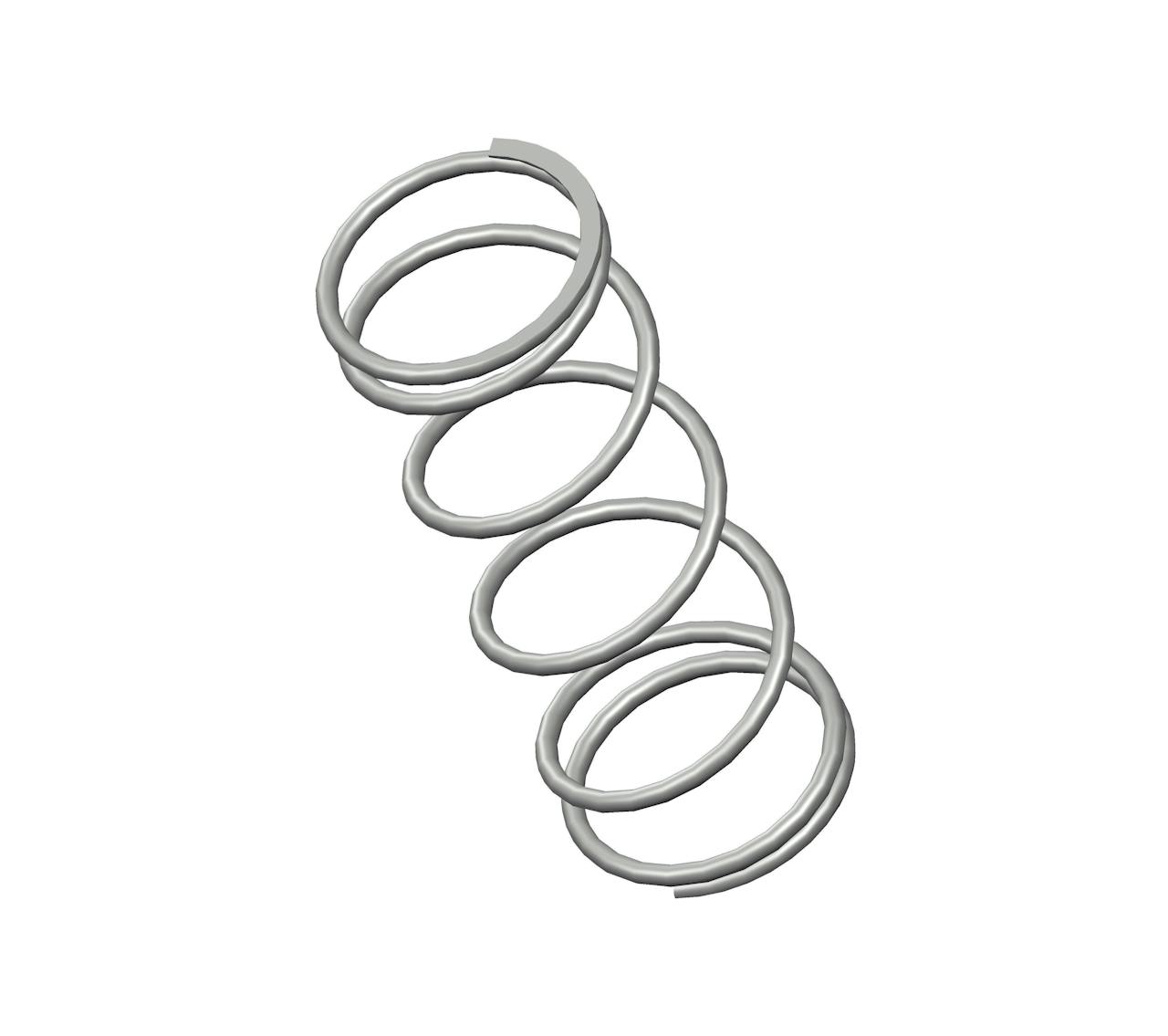

Compression spring manufactured from spring steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.466".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-62 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.5 in |
| Inside Diameter | 0.466 in |
| Material | Spring Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | B1-62CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.72 in |
| Suggested Max Load | 4.6 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B1-62 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 38.1 mm |
| Inside Diameter | 11.84 mm |
| Material | Spring Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | B1-62CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 18.29 mm |
| Suggested Max Load | 20.46 N |
| Total Coils | 6.5 |
| Wire Diameter | 1.02 mm |
The compression spring B1-62CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B1-62 compression spring design exhibits exceptional tensile strength and resilience.
The B1-62 design is manufactured with a free length of 1.5", with an outer diameter of 0.546", an inner diameter of 0.466", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The B1-62CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-62 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B1-62 design is manufactured with a free length of 1.5", with an outer diameter of 0.546", an inner diameter of 0.466", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The B1-62CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B1-62 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
