B-97CS - 0.53" Hard Drawn Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

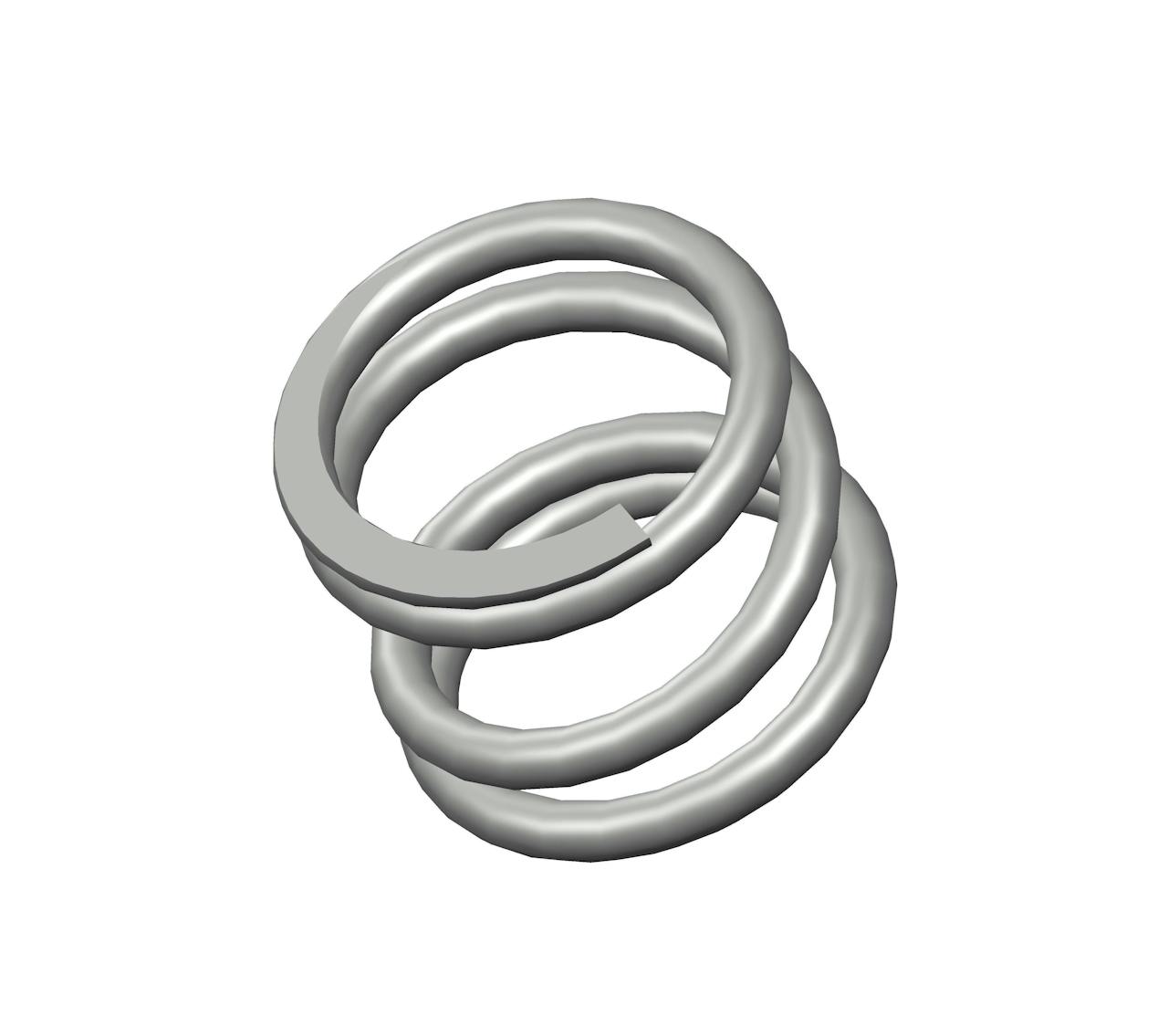

Compression spring manufactured from hard drawn with 3.75 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.481".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-97 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.53 in |
| Inside Diameter | 0.481 in |
| Material | Spring Steel |
| Outside Diameter | 0.625 in |
| Part Type | Standard |
| Rate | 131 lbs/in |
| SKU | B-97CS |
| Solid Length | 0.27 in |
| Suggested Max Deflection | 0.15 in |
| Suggested Max Load | 20 lbf |
| Total Coils | 3.75 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-97 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 13.46 mm |
| Inside Diameter | 12.22 mm |
| Material | Spring Steel |
| Outside Diameter | 15.88 mm |
| Part Type | Standard |
| Rate | 22.94 N/mm |
| SKU | B-97CS |
| Solid Length | 6.86 mm |
| Suggested Max Deflection | 3.81 mm |
| Suggested Max Load | 88.96 N |
| Total Coils | 3.75 |
| Wire Diameter | 1.83 mm |
The compression spring B-97CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality hard drawn, the B-97 compression spring design exhibits exceptional tensile strength and resilience.
The B-97 design is manufactured with a free length of 0.53", with an outer diameter of 0.625", an inner diameter of 0.481", and a total of 3.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 131 lbs/in.
The B-97CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-97 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B-97 design is manufactured with a free length of 0.53", with an outer diameter of 0.625", an inner diameter of 0.481", and a total of 3.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 131 lbs/in.
The B-97CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B-97 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
