67345SCS - 0.25" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

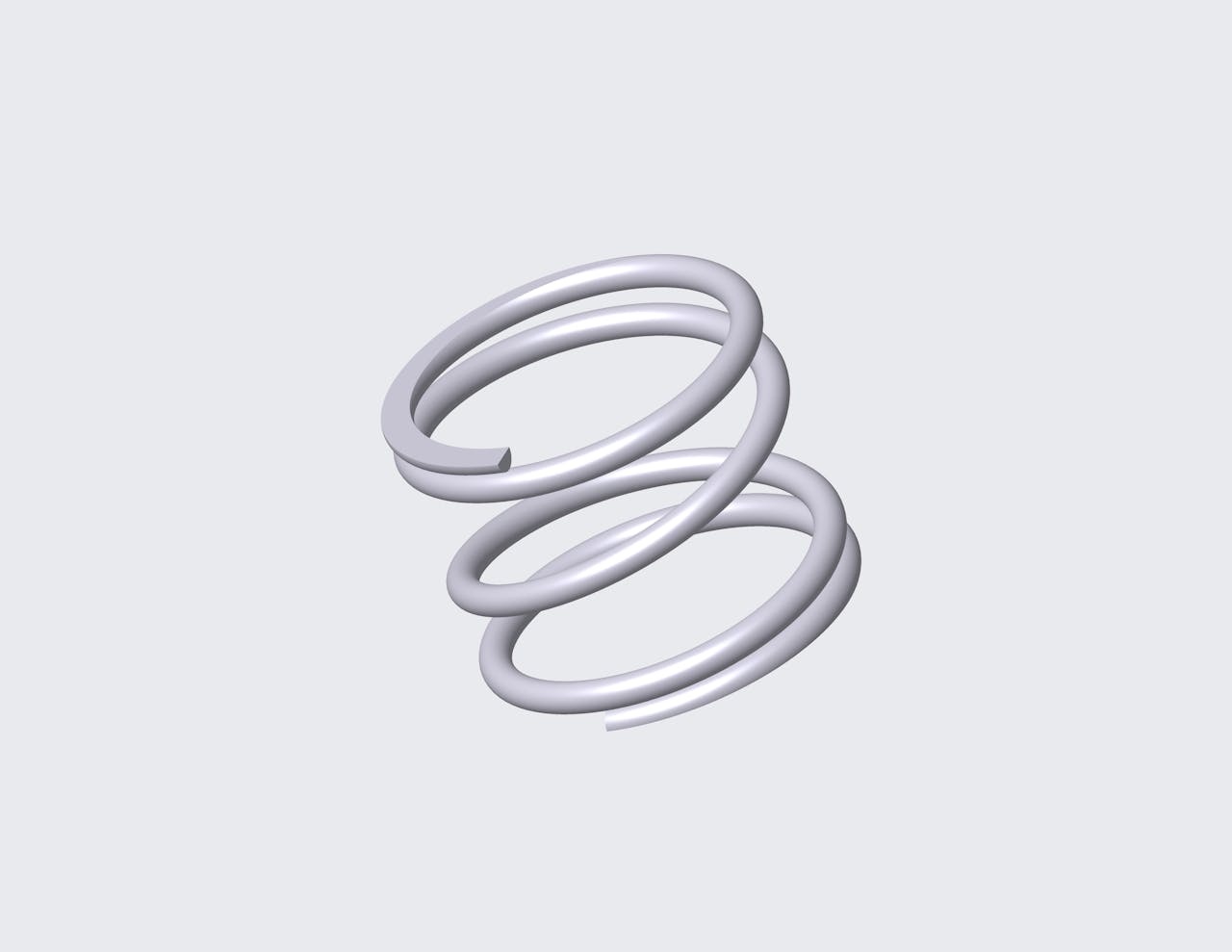

Compression spring manufactured from 316 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.26".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67345S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 0.25 in |
| Inside Diameter | 0.26 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 12.209 lbs/in |
| SKU | 67345SCS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.12 in |
| Suggested Max Load | 1.465 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 67345S |
| Ends | Closed |
| Finish | Passivated |
| Free Length | 6.35 mm |
| Inside Diameter | 6.6 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 2.14 N/mm |
| SKU | 67345SCS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 3.05 mm |
| Suggested Max Load | 6.52 N |
| Total Coils | 4 |
| Wire Diameter | 0.66 mm |
The 67345SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.026" diameter 316 stainless steel, the 67345S spring design exhibits reliable strength across its 4 active coils, withstanding repeated compression cycles with a maximum load of 1.465 lbf without succumbing to fatigue.
We manufacture the 67345S design to provide a compression spring that is 0.25" long at rest and provides a consistent rate of 12.209 lbs/in along its recommended maximum of 0.12" deflection. For best results, your application should fully accommodate the inner (0.26") and outer (0.312") diameters of this spring and be designed for its closed end configuration.
We manufacture the 67345S design to provide a compression spring that is 0.25" long at rest and provides a consistent rate of 12.209 lbs/in along its recommended maximum of 0.12" deflection. For best results, your application should fully accommodate the inner (0.26") and outer (0.312") diameters of this spring and be designed for its closed end configuration.
