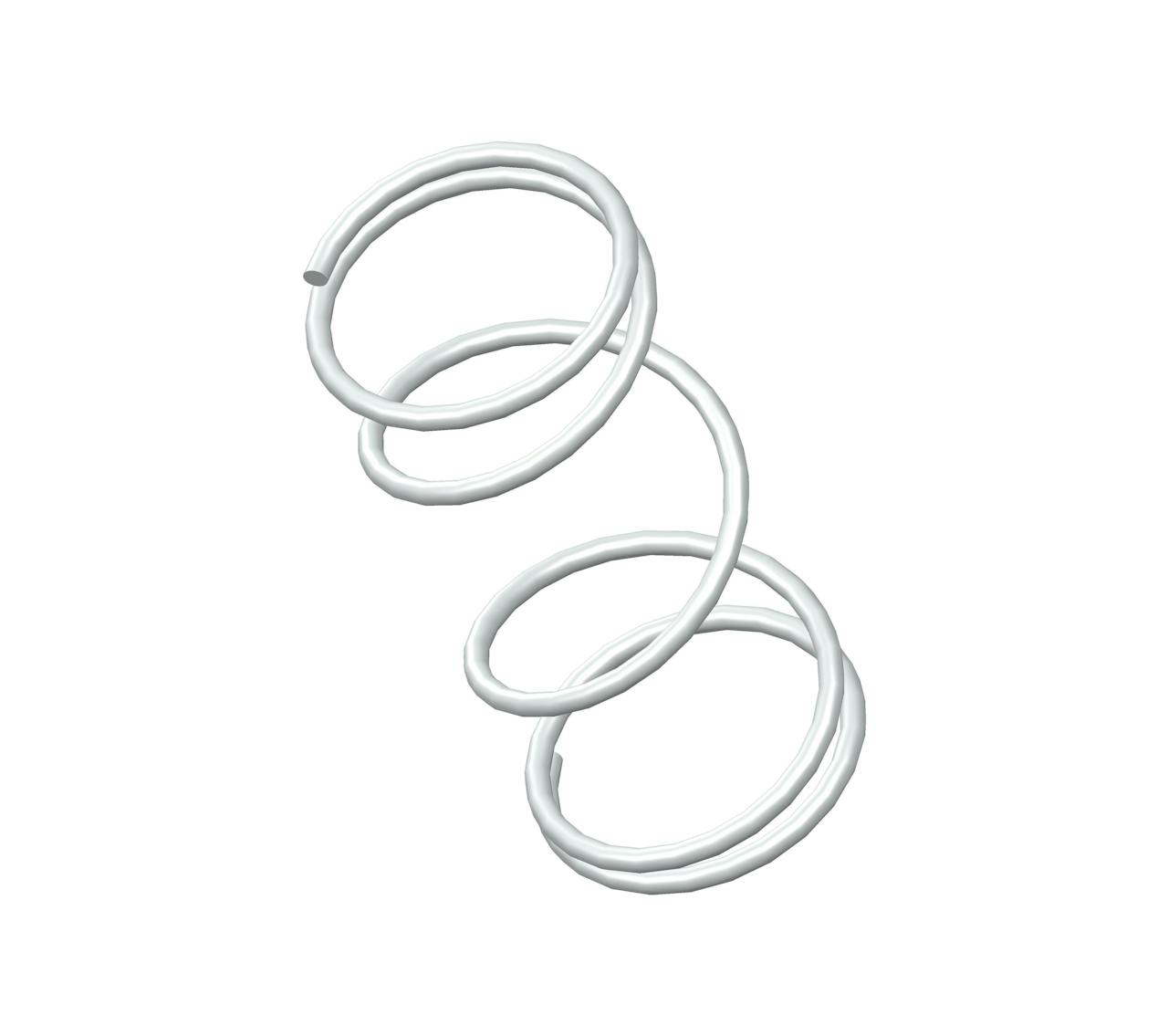

B-73CS - 0.81" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.308".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-73 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.81 in |
| Inside Diameter | 0.308 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 5.3 lbs/in |
| SKU | B-73CS |
| Solid Length | 0.16 in |
| Suggested Max Deflection | 0.35 in |
| Suggested Max Load | 1.9 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B-73 |
| Ends | Closed |
| Finish | None |
| Free Length | 20.57 mm |
| Inside Diameter | 7.82 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 0.93 N/mm |
| SKU | B-73CS |
| Solid Length | 4.06 mm |
| Suggested Max Deflection | 8.89 mm |
| Suggested Max Load | 8.45 N |
| Total Coils | 5 |
| Wire Diameter | 0.66 mm |
The B-73 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The B-73CS compression spring is designed with a free length of 0.38" total of 5 coils, and a rate of 0.52 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The B-73CS compression spring is designed with a free length of 0.38" total of 5 coils, and a rate of 0.52 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The B-73 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
