Century Spring

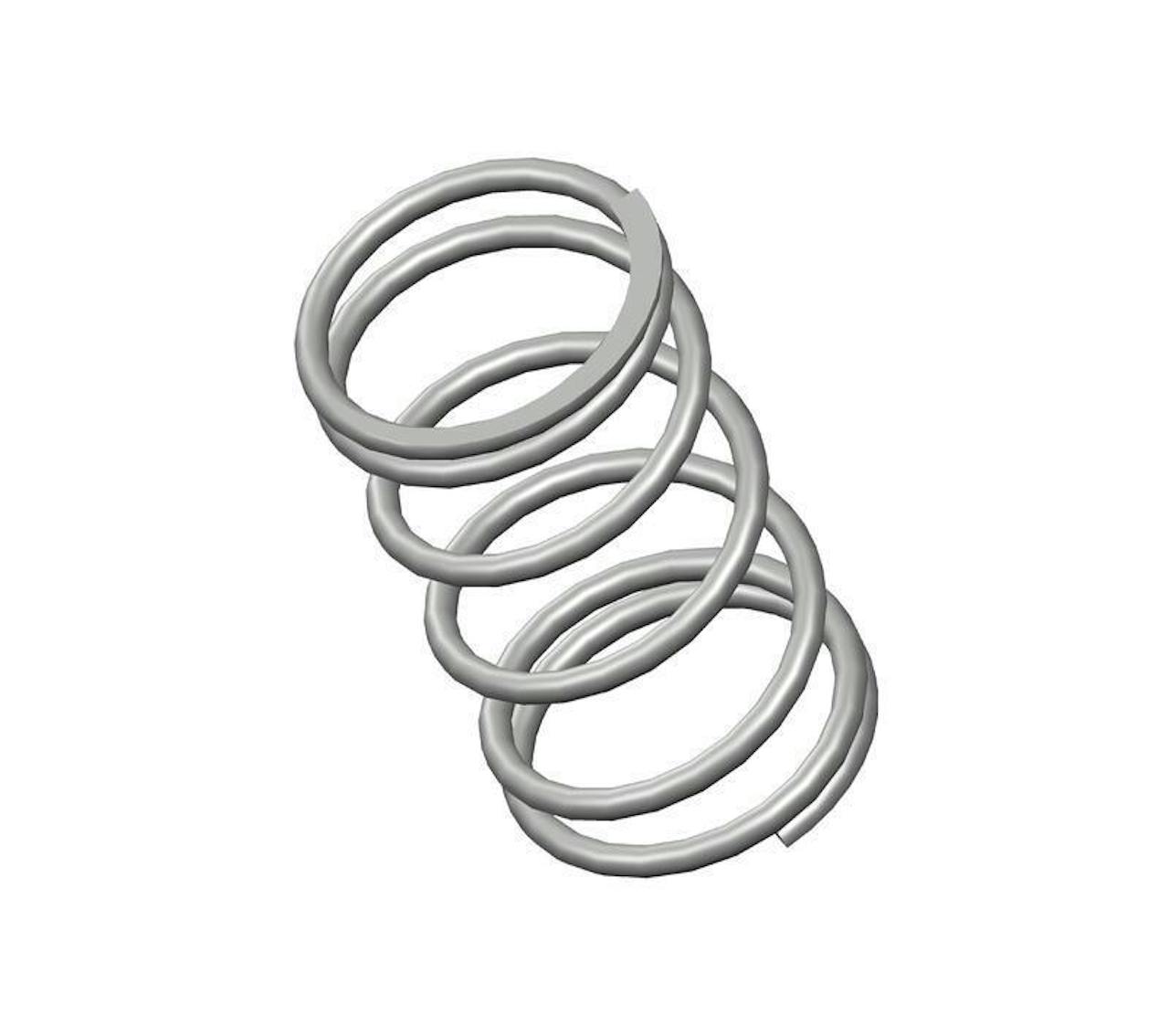

72532CS - 2" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6.25 coils and closed & ground ends. This spring features an O.D. of 1.1", and an I.D. of 0.914".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72532
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.914 in
Material Music Wire
Outside Diameter 1.1 in
Part Type Standard
Rate 25 lbs/in
SKU 72532CS
Solid Length 0.58 in
Suggested Max Deflection 1.4 in
Suggested Max Load 34 lbf
Total Coils 6.25
Wire Diameter 0.093 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72532
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 23.22 mm
Material Music Wire
Outside Diameter 27.94 mm
Part Type Standard
Rate 4.38 N/mm
SKU 72532CS
Solid Length 14.73 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 151.23 N
Total Coils 6.25
Wire Diameter 2.36 mm
The 72532CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.093" diameter music wire, the 72532 spring design exhibits reliable strength across its 6.25 active coils, withstanding repeated compression cycles with a maximum load of 34 lbf without succumbing to fatigue.

We manufacture the 72532 design to provide a compression spring that is 2" long at rest and provides a consistent rate of 25 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.914") and outer (1.1") diameters of this spring and be designed for its closed & ground end configuration.
