Maryland Precision Spring

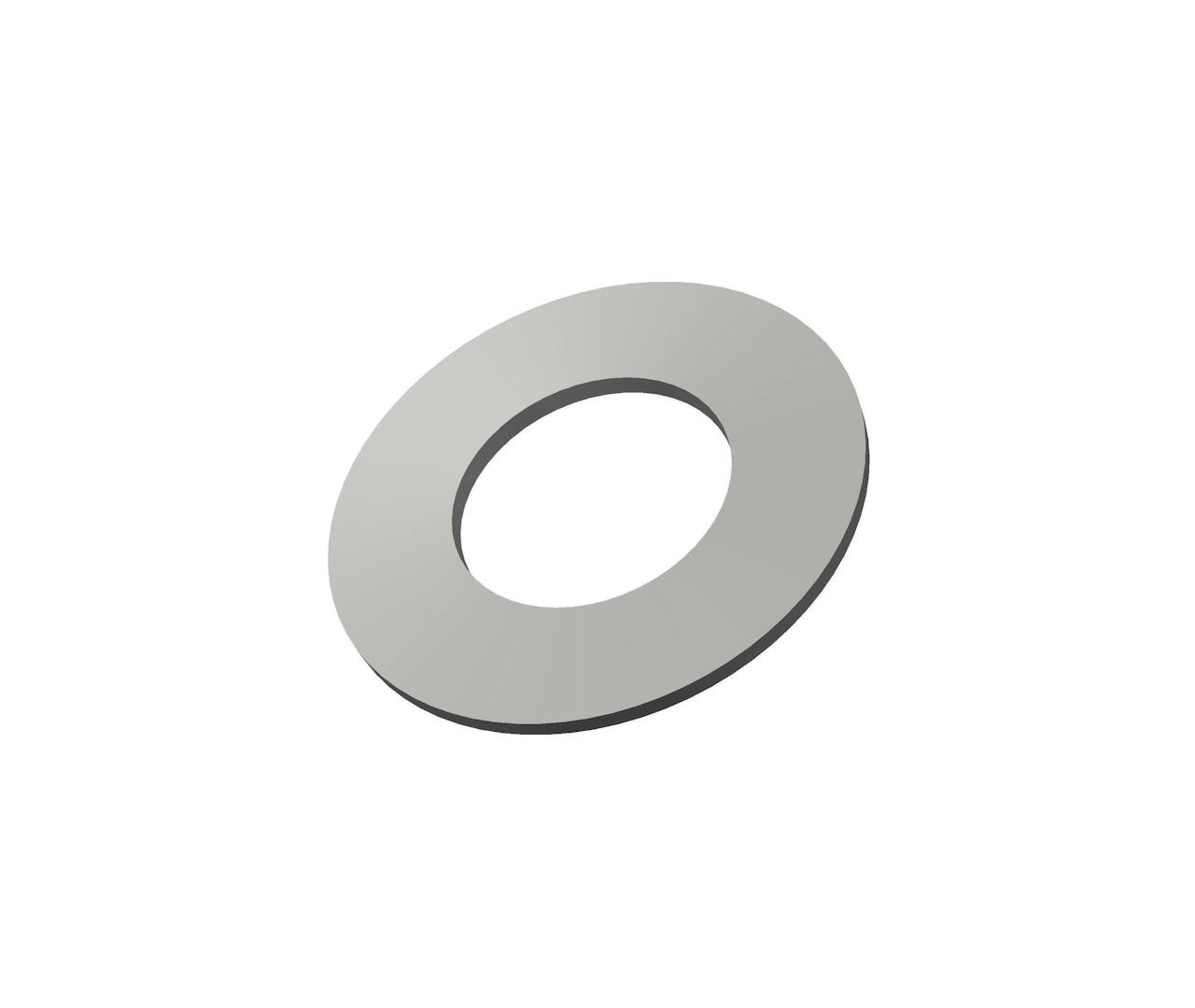

AM-402015 - 0.803 Inch ID 1.57 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.803 Inch and an outside diameter of 1.57 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 266 lb
Deflection at 100% Height 0.0456 in
Deflection at 50% Height 0.0228 in
Deflection at 75% Height 0.0342 in
Display Name AM-402015
Finish None
Inside Diameter 0.803 in
Load at 100% Height 765 lb
Load at 50% Height 468 lb
Load at 75% Height 627 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 1.57 in
Outside Height 0.1043 in
SKU AM-402015
T 0.0591 in
h/t 0.772 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 120.63 kg
Deflection at 100% Height 1.16 mm
Deflection at 50% Height 0.58 mm
Deflection at 75% Height 0.87 mm
Display Name AM-402015
Finish None
Inside Diameter 20.4 mm
Load at 100% Height 346.94 kg
Load at 50% Height 212.24 kg
Load at 75% Height 284.35 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 39.88 mm
Outside Height 2.65 mm
SKU AM-402015
T 1.5 mm
h/t 19.61 mm
