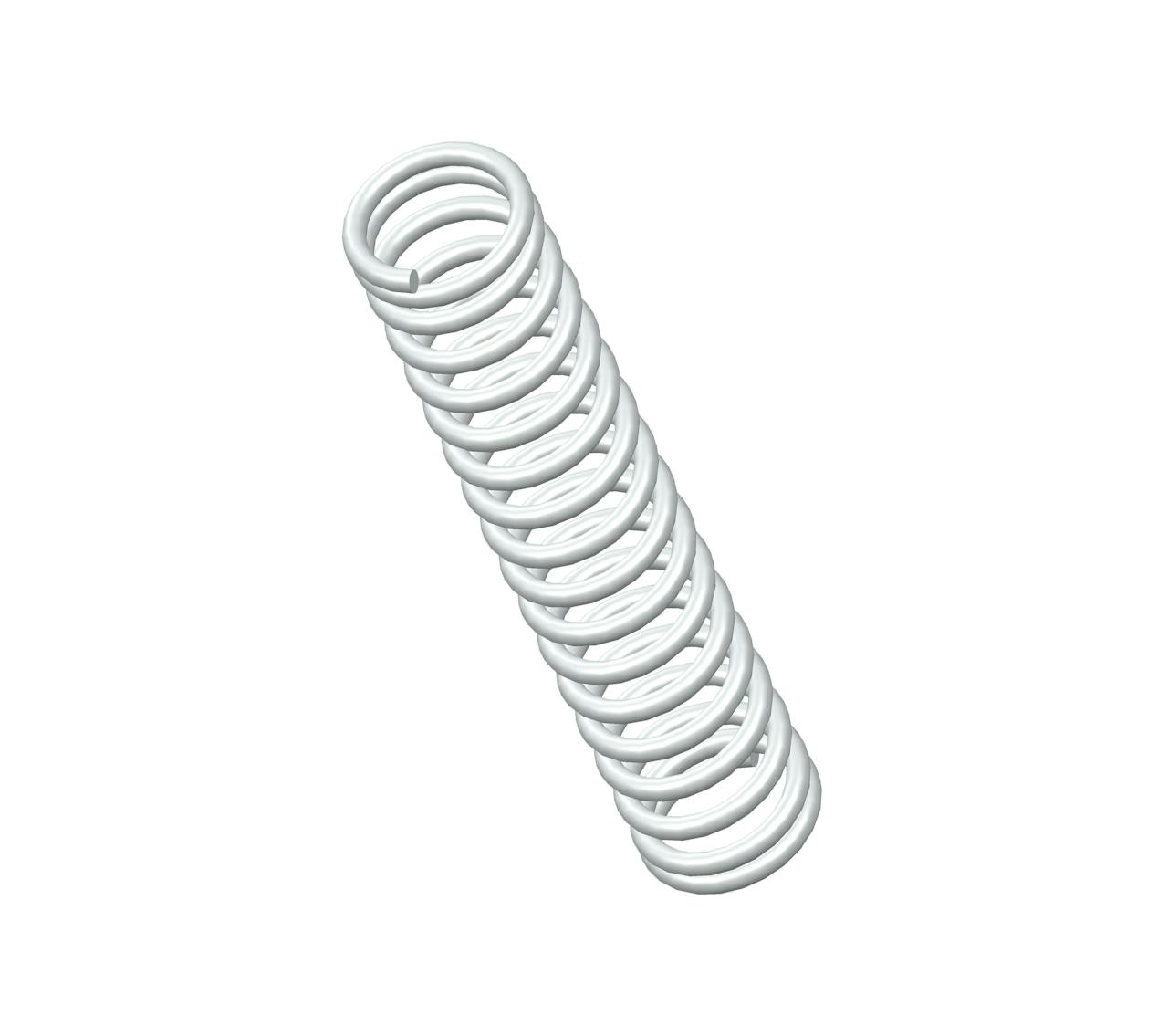

K-10CS - 1.19" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 17.5 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.176".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-10 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.176 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 6.6 lbs/in |
| SKU | K-10CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.58 in |
| Suggested Max Load | 3.8 lbf |
| Total Coils | 17.5 |
| Wire Diameter | 0.029 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | K-10 |
| Ends | Closed |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 4.47 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 1.16 N/mm |
| SKU | K-10CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 14.73 mm |
| Suggested Max Load | 16.9 N |
| Total Coils | 17.5 |
| Wire Diameter | 0.74 mm |
The compression spring K-10CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the K-10 compression spring design exhibits exceptional tensile strength and resilience.
The K-10 design is manufactured with a free length of 1.19", with an outer diameter of 0.234", an inner diameter of 0.176", and a total of 17.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.6 lbs/in.
The K-10CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-10 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The K-10 design is manufactured with a free length of 1.19", with an outer diameter of 0.234", an inner diameter of 0.176", and a total of 17.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.6 lbs/in.
The K-10CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring K-10 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
