Maryland Precision Spring

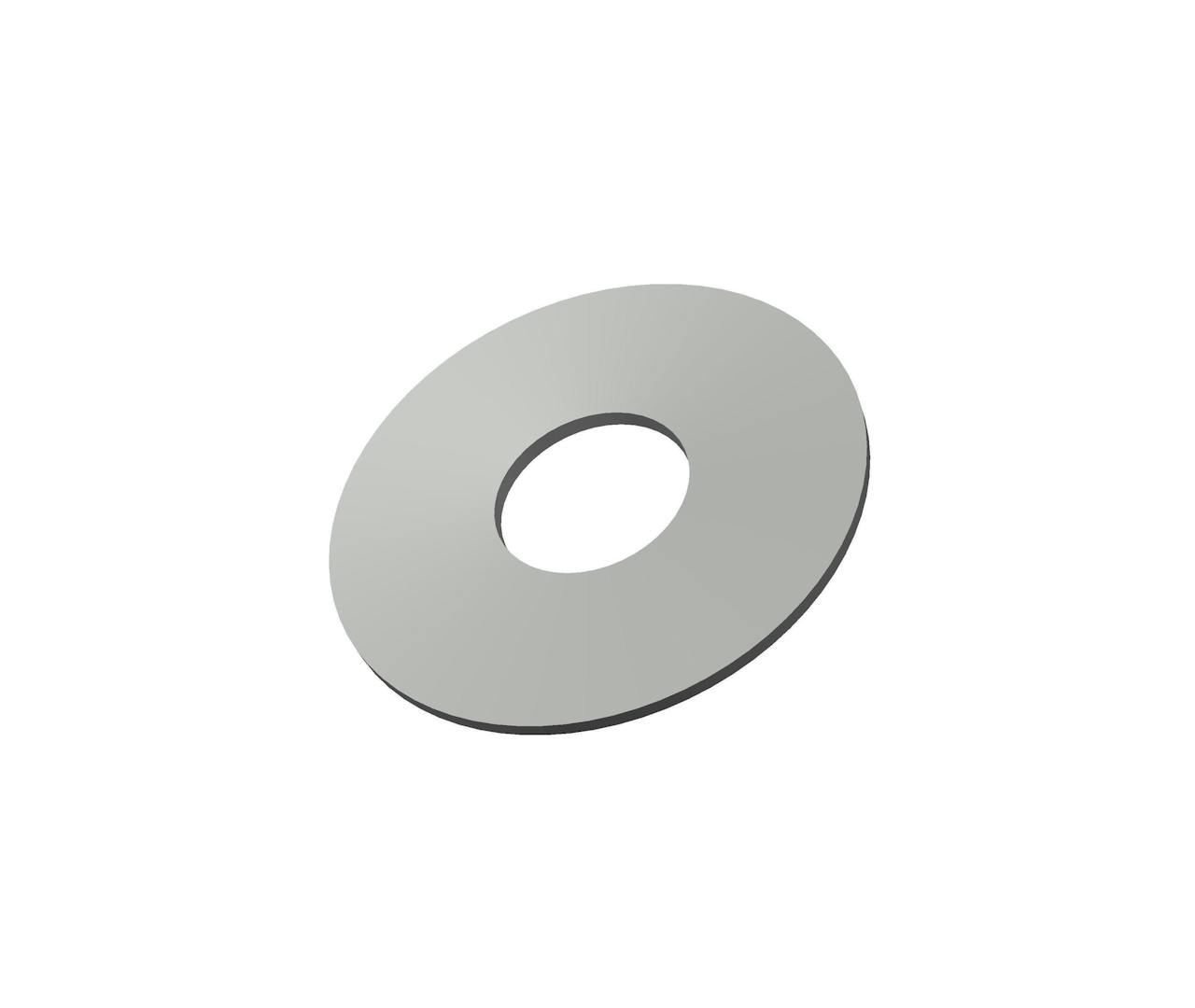

AM-238207 - 0.323 Inch ID 0.906 Inch OD 1075 High Carbon Steel Disc Spring Washer

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.323 Inch and an outside diameter of 0.906 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 66 lb
Deflection at 100% Height 0.0317 in
Deflection at 50% Height 0.0158 in
Deflection at 75% Height 0.0238 in
Display Name AM-238207
Finish None
Inside Diameter 0.323 in
Load at 100% Height 143 lb
Load at 50% Height 107 lb
Load at 75% Height 129 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.906 in
Outside Height 0.0591 in
SKU AM-238207
T 0.0276 in
h/t 1.147 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 29.93 kg
Deflection at 100% Height 0.81 mm
Deflection at 50% Height 0.4 mm
Deflection at 75% Height 0.6 mm
Display Name AM-238207
Finish None
Inside Diameter 8.2 mm
Load at 100% Height 64.85 kg
Load at 50% Height 48.53 kg
Load at 75% Height 58.5 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 23.01 mm
Outside Height 1.5 mm
SKU AM-238207
T 0.7 mm
h/t 29.13 mm
