Maryland Precision Spring

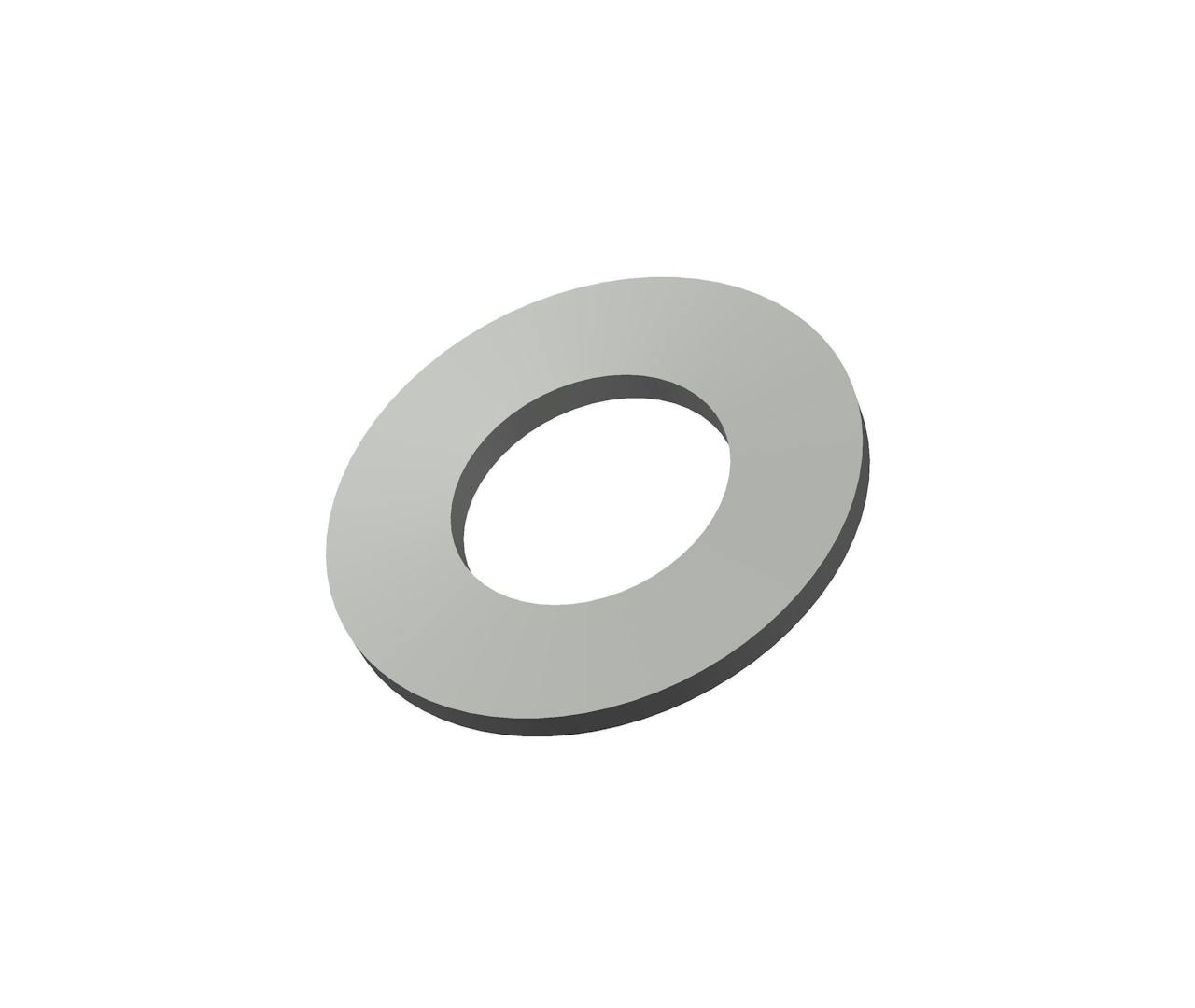

AM-1005160 - 2.01 Inch ID 3.94 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 2.01 Inch and an outside diameter of 3.94 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 4099 lb
Deflection at 100% Height 0.0877 in
Deflection at 50% Height 0.0438 in
Deflection at 75% Height 0.0657 in
Display Name AM-1005160
Finish None
Inside Diameter 2.01 in
Load at 100% Height 15037 lb
Load at 50% Height 7907 lb
Load at 75% Height 11520 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 3.94 in
Outside Height 0.3228 in
SKU AM-1005160
T 0.2362 in
h/t 0.371 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 1858.96 kg
Deflection at 100% Height 2.23 mm
Deflection at 50% Height 1.11 mm
Deflection at 75% Height 1.67 mm
Display Name AM-1005160
Finish None
Inside Diameter 51.05 mm
Load at 100% Height 6819.5 kg
Load at 50% Height 3585.94 kg
Load at 75% Height 5224.49 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 100.08 mm
Outside Height 8.2 mm
SKU AM-1005160
T 6 mm
h/t 9.42 mm
