Century Spring

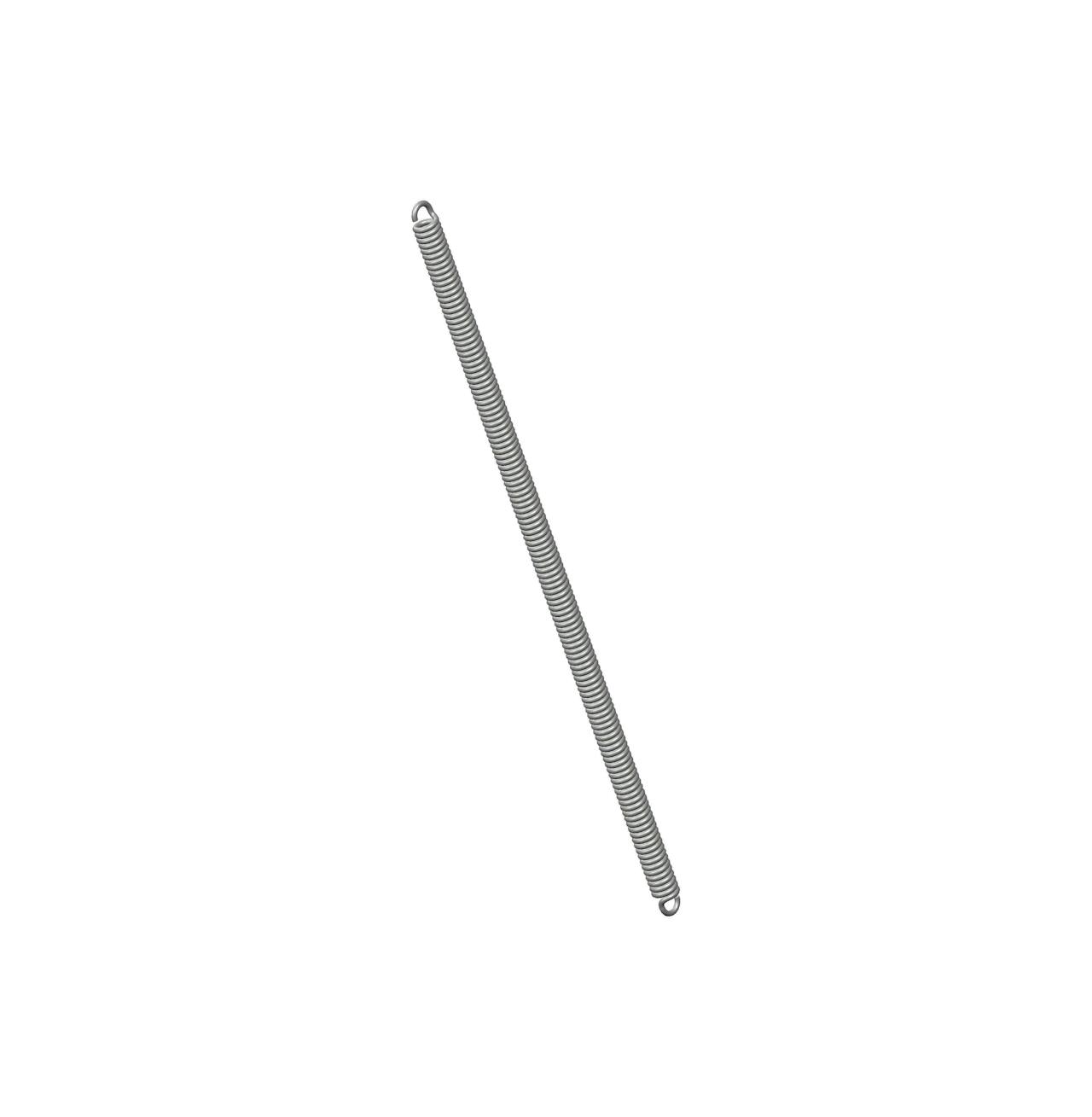

5217CS - 7.19 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5217
Ends Machine Hook
Finish Zinc
Initial Tension 9 lb
Length 7.19 in
Material Spring Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 13 lbs/in
SKU 5217CS
Sugg Max Deflection 1.2 in
Sugg Max Load 25 lbf
Wind Direction Left
Wire Diameter 0.054 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5217
Ends Machine Hook
Finish Zinc
Initial Tension 4.08 kg
Length 182.63 mm
Material Spring Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.28 N/mm
SKU 5217CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 111.2 N
Wind Direction Left
Wire Diameter 1.37 mm
