Maryland Precision Spring

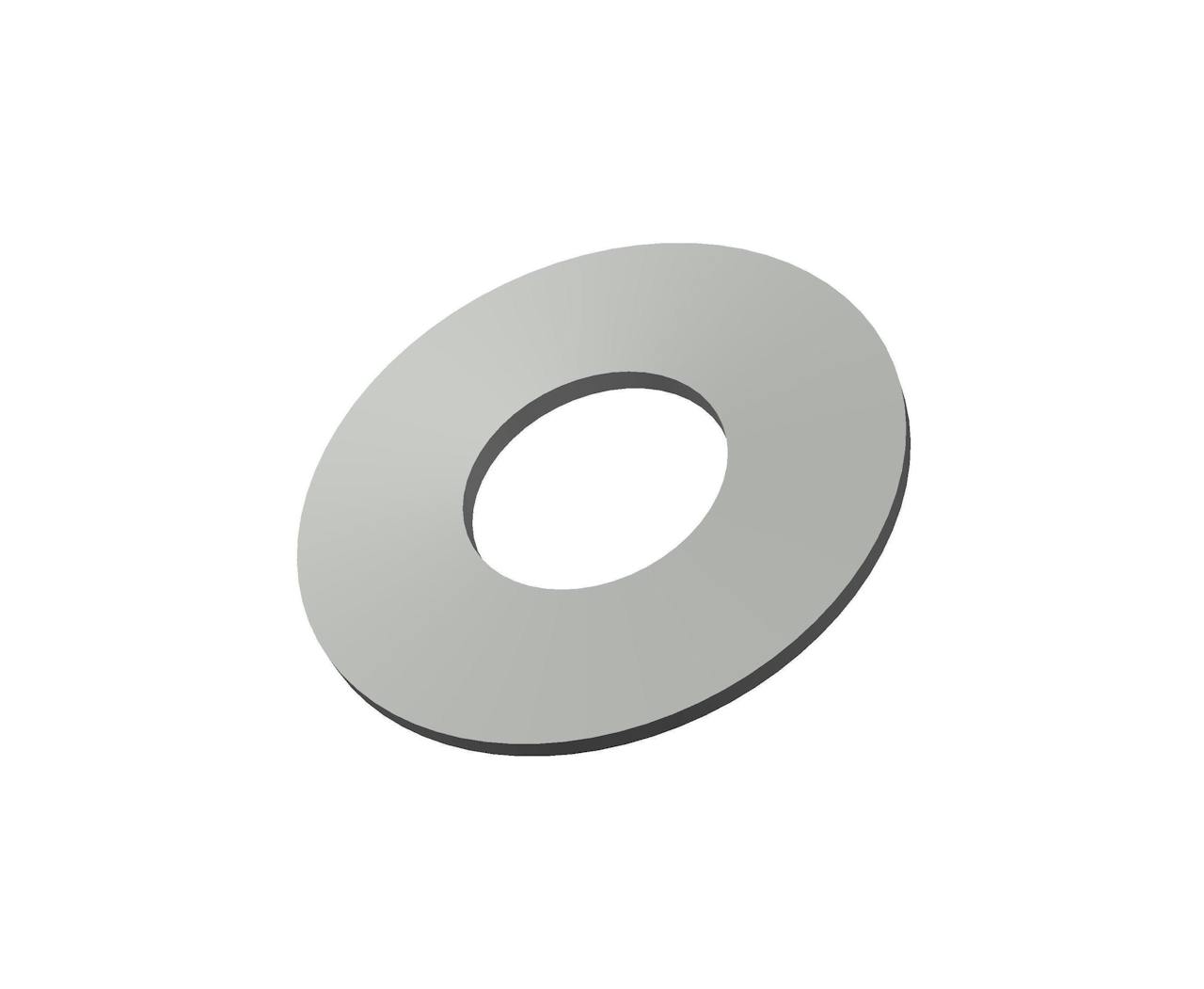

AI-753227 - 0.32 Inch ID 0.75 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.32 Inch and an outside diameter of 0.75 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 0.3125
Brand Maryland Precision Spring
Display Name AI-753227
Finish Plain
H 0.024 in
Inside Diameter 0.32 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.024 in
Maximum Force at 100% Height 174 lb
Measurement Units Standard
Outside Diameter 0.75 in
Outside Height 0.052 in
SKU AI-753227
T 0.028 in
Specs (in metric)
Label Value
Bolt Size 0.31
Brand Maryland Precision Spring
Display Name AI-753227
Finish Plain
H 0.61 mm
Inside Diameter 8.13 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.61 mm
Maximum Force at 100% Height 78.91 kg
Measurement Units Standard
Outside Diameter 19.05 mm
Outside Height 1.32 mm
SKU AI-753227
T 0.71 mm
