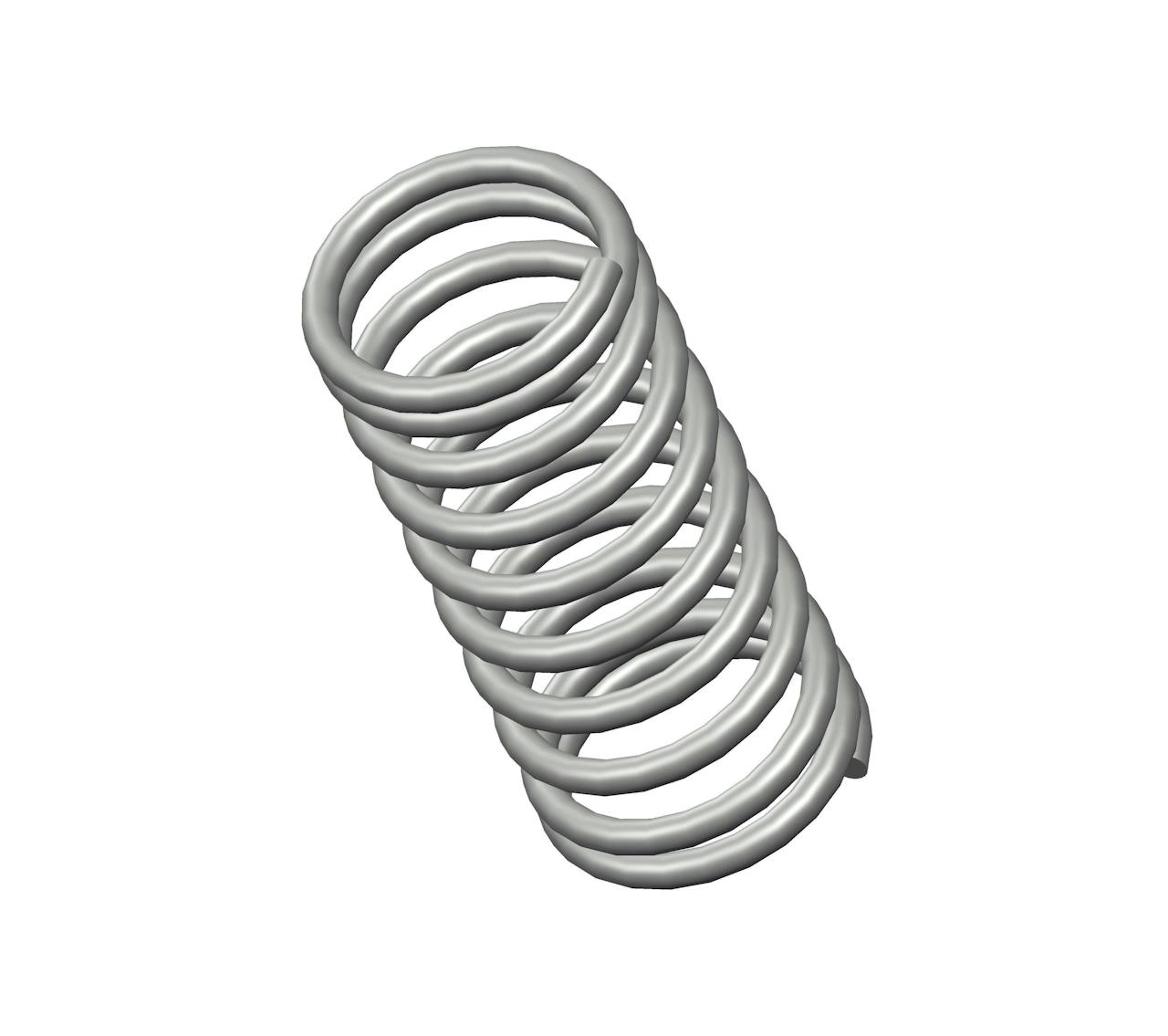

AA-78CS - 1.13" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.468", and an I.D. of 0.368".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-78 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.13 in |
| Inside Diameter | 0.368 in |
| Material | Spring Steel |
| Outside Diameter | 0.468 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | AA-78CS |
| Solid Length | 0.55 in |
| Suggested Max Deflection | 0.58 in |
| Suggested Max Load | 8.8 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | AA-78 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 28.7 mm |
| Inside Diameter | 9.35 mm |
| Material | Spring Steel |
| Outside Diameter | 11.89 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | AA-78CS |
| Solid Length | 13.97 mm |
| Suggested Max Deflection | 14.73 mm |
| Suggested Max Load | 39.14 N |
| Total Coils | 10 |
| Wire Diameter | 1.27 mm |
The AA-78 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The AA-78CS compression spring is designed with a free length of 0.25" total of 5 coils, and a rate of 136 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The AA-78 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The AA-78CS compression spring is designed with a free length of 0.25" total of 5 coils, and a rate of 136 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The AA-78 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
