Century Spring

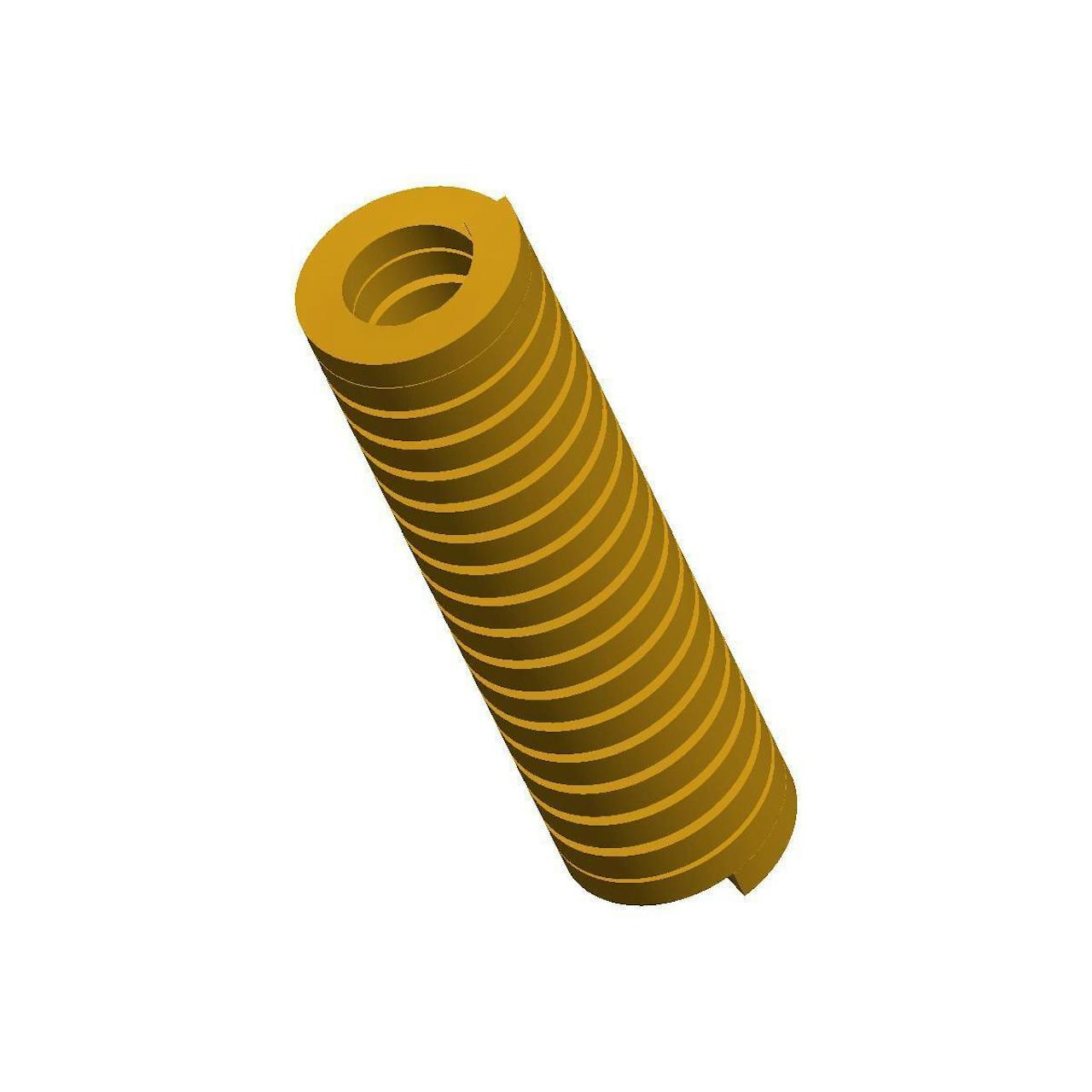

D-1303CS - 1.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 22 lb
Brand Century Spring
Deflection For Average Life 0.23 in
Deflection For Long Life 0.3 in
Display Name D-1303
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 1.5 in
Hole Size 0.375 in
Long Life Deflection Force 29 lb
Material Chrome Alloy
Maximum Deflection 0.45 in
Maximum Deflection Force 43 lb
Measurement Units Standard
Rate 96 lbs/in
Rod Size 0.1875 in
SKU D-1303CS
Wire Diameter 0.072 in x 0.054 in
Specs (in metric)
Label Value
Average Life Deflection Force 9.98 kg
Brand Century Spring
Deflection For Average Life 5.84 mm
Deflection For Long Life 7.62 mm
Display Name D-1303
Duty Load Heavy
Finish None
Finish Color Gold
Free Length 38.1 mm
Hole Size 9.53 mm
Long Life Deflection Force 13.15 kg
Material Chrome Alloy
Maximum Deflection 11.43 mm
Maximum Deflection Force 19.5 kg
Measurement Units Standard
Rate 16.81 N/mm
Rod Size 4.76 mm
SKU D-1303CS
Wire Diameter 1.83 mm x 1.37 mm
