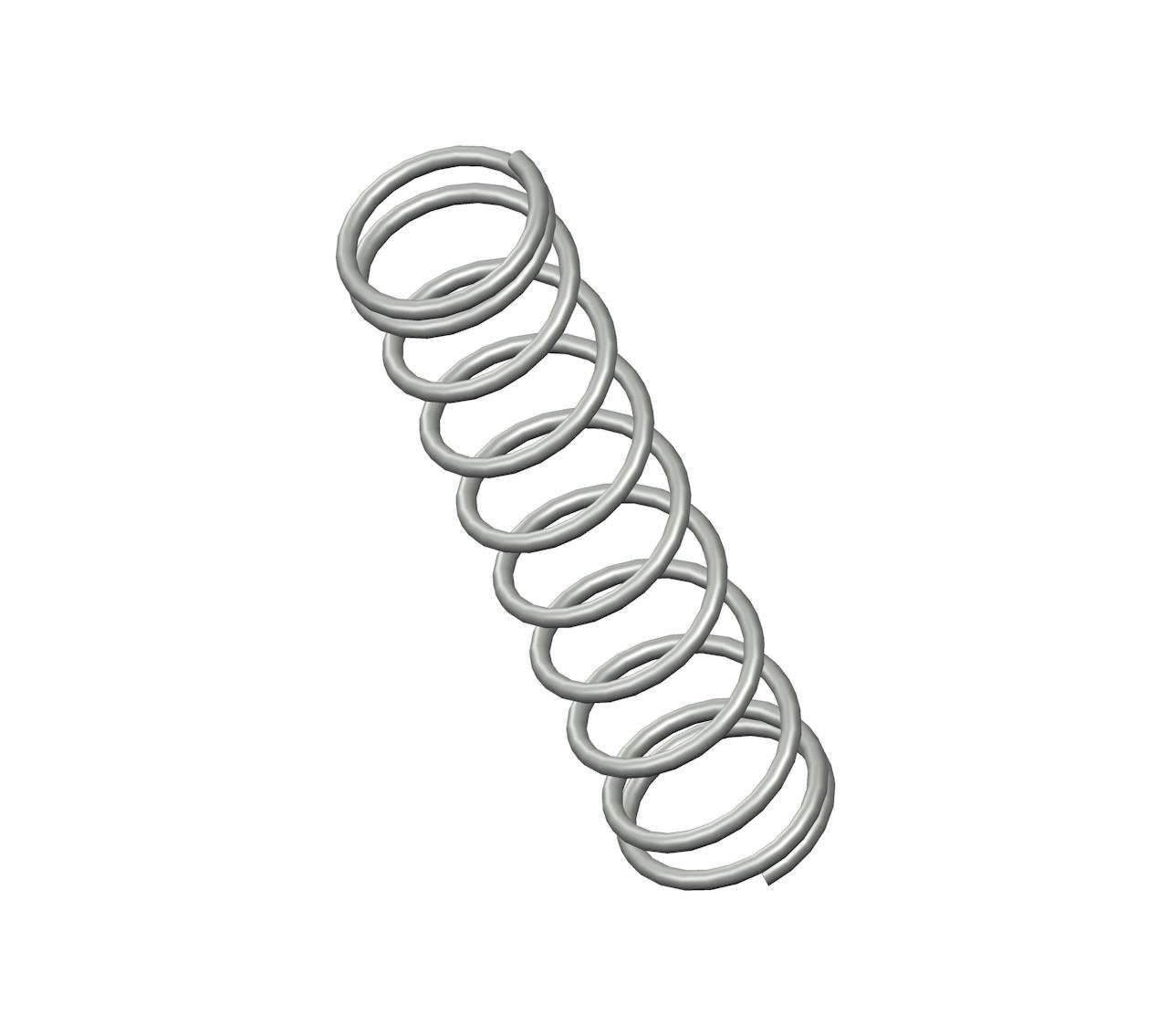

A15-54CS - 1.53" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 10.3 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.294".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A15-54
Ends Closed
Finish None
Free Length 1.53 in
Inside Diameter 0.294 in
Material Music Wire
Outside Diameter 0.36 in
Part Type Standard
Rate 6 lbs/in
SKU A15-54CS
Solid Length 0.37 in
Suggested Max Deflection 0.94 in
Suggested Max Load 5.6 lbf
Total Coils 10.3
Wire Diameter 0.033 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A15-54
Ends Closed
Finish None
Free Length 38.86 mm
Inside Diameter 7.47 mm
Material Music Wire
Outside Diameter 9.14 mm
Part Type Standard
Rate 1.05 N/mm
SKU A15-54CS
Solid Length 9.4 mm
Suggested Max Deflection 23.88 mm
Suggested Max Load 24.91 N
Total Coils 10.3
Wire Diameter 0.84 mm
The A15-54 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A15-54CS compression spring is designed with a free length of 2" total of 9.5 coils, and a rate of 57 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A15-54 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
