Century Spring

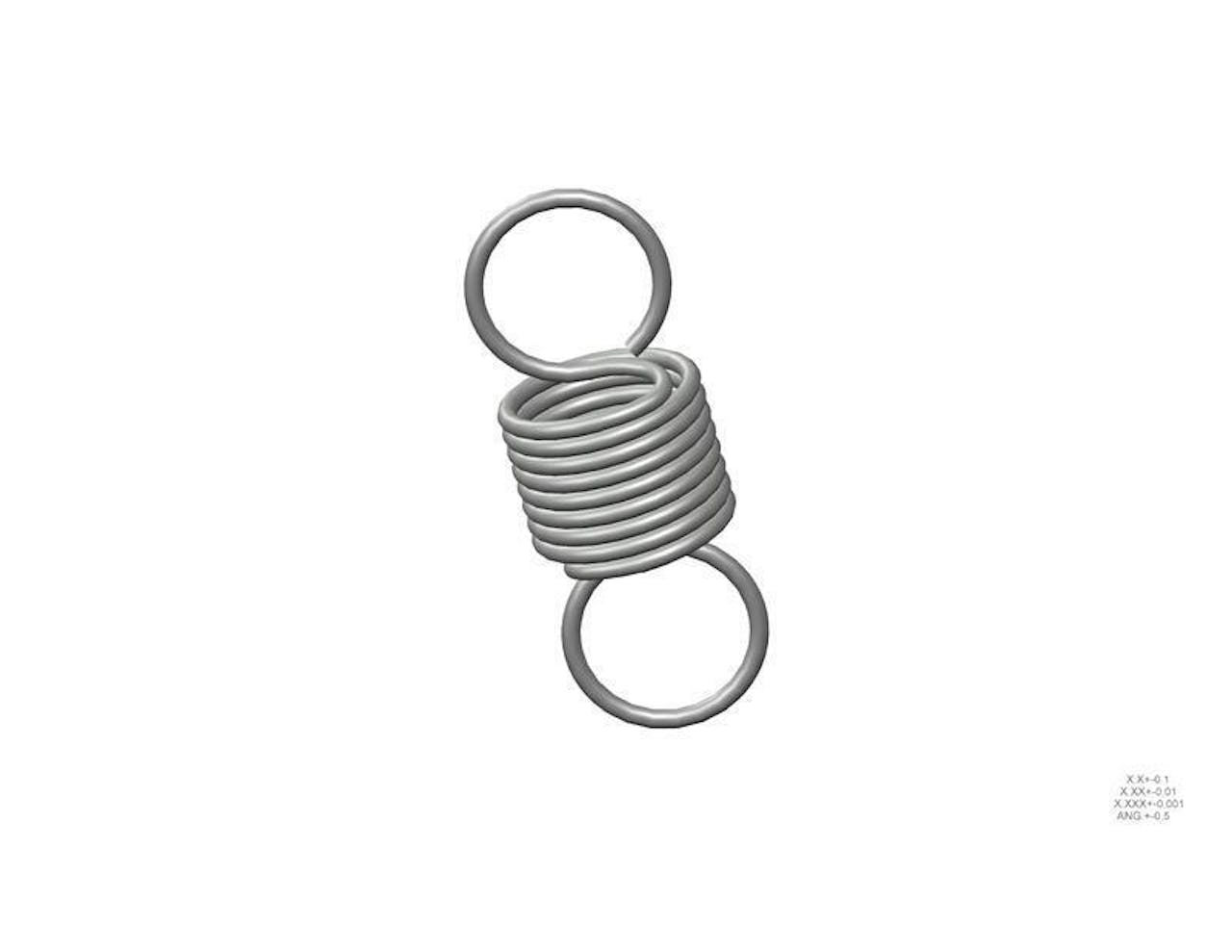

81062CS - 3 Inch Music Wire Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 1.125 Inch and an initial tension of 3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 81062
Ends Full Loop
Finish None
Initial Tension 3 lb
Length 3 in
Material Music Wire
Outside Diameter 1.125 in
Part Type Standard
Rate 20 lbs/in
SKU 81062CS
Sugg Max Deflection 1.9 in
Sugg Max Load 41 lbf
Wind Direction Left
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 81062
Ends Full Loop
Finish None
Initial Tension 1.36 kg
Length 76.2 mm
Material Music Wire
Outside Diameter 28.58 mm
Part Type Standard
Rate 3.5 N/mm
SKU 81062CS
Sugg Max Deflection 48.26 mm
Sugg Max Load 182.37 N
Wind Direction Left
Wire Diameter 2.67 mm
