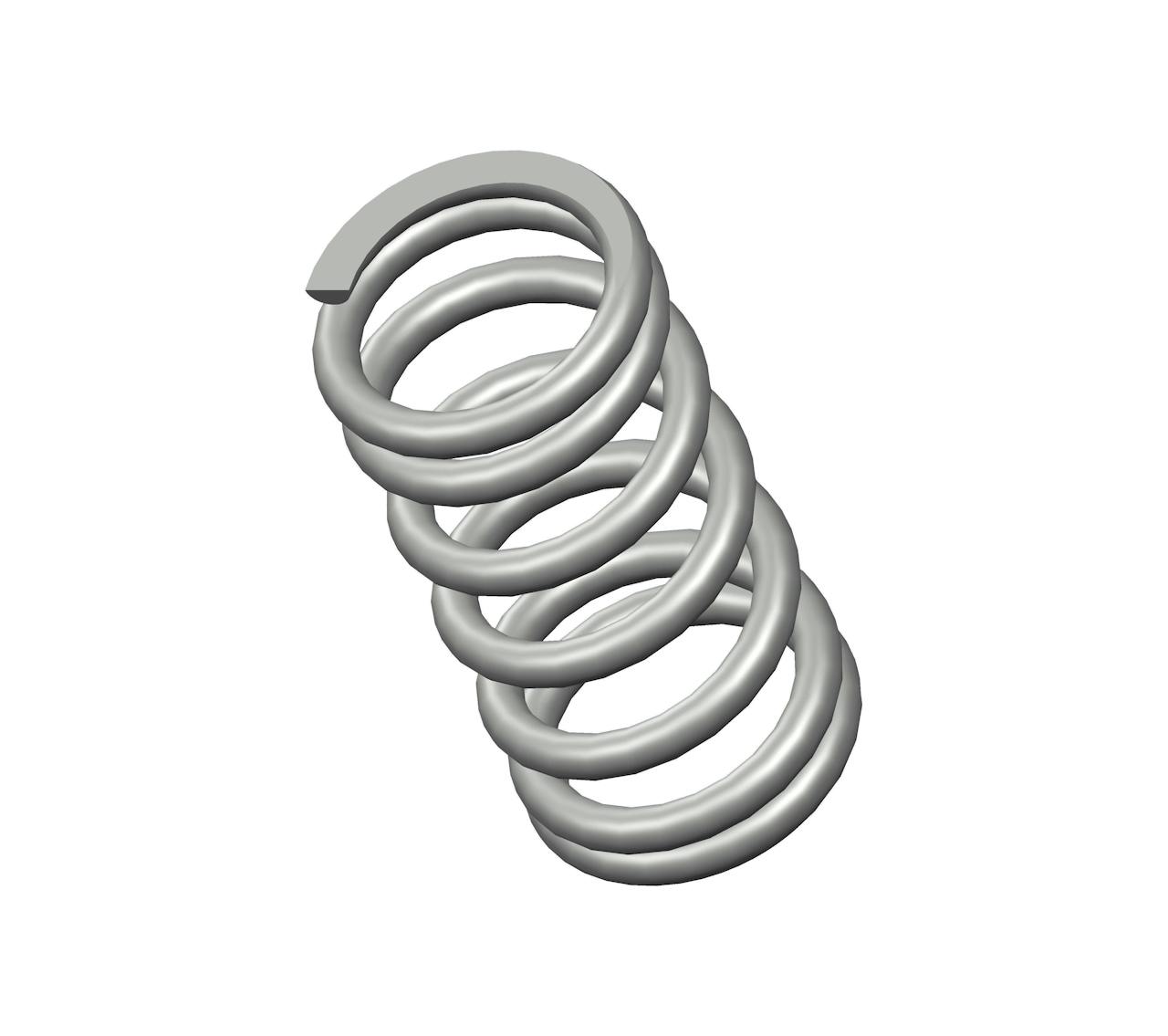

A14-22CS - 0.63" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.23".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-22 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 0.63 in |
| Inside Diameter | 0.23 in |
| Material | Spring Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 41 lbs/in |
| SKU | A14-22CS |
| Solid Length | 0.29 in |
| Suggested Max Deflection | 0.2 in |
| Suggested Max Load | 8.3 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | A14-22 |
| Ends | Closed & Ground |
| Finish | Gold Iridite |
| Free Length | 16 mm |
| Inside Diameter | 5.84 mm |
| Material | Spring Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 7.18 N/mm |
| SKU | A14-22CS |
| Solid Length | 7.37 mm |
| Suggested Max Deflection | 5.08 mm |
| Suggested Max Load | 36.92 N |
| Total Coils | 7 |
| Wire Diameter | 1.04 mm |
The compression spring A14-22CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the A14-22 compression spring design exhibits exceptional tensile strength and resilience.
The A14-22 design is manufactured with a free length of 0.63", with an outer diameter of 0.312", an inner diameter of 0.23", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The A14-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The A14-22 design is manufactured with a free length of 0.63", with an outer diameter of 0.312", an inner diameter of 0.23", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 41 lbs/in.
The A14-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring A14-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
