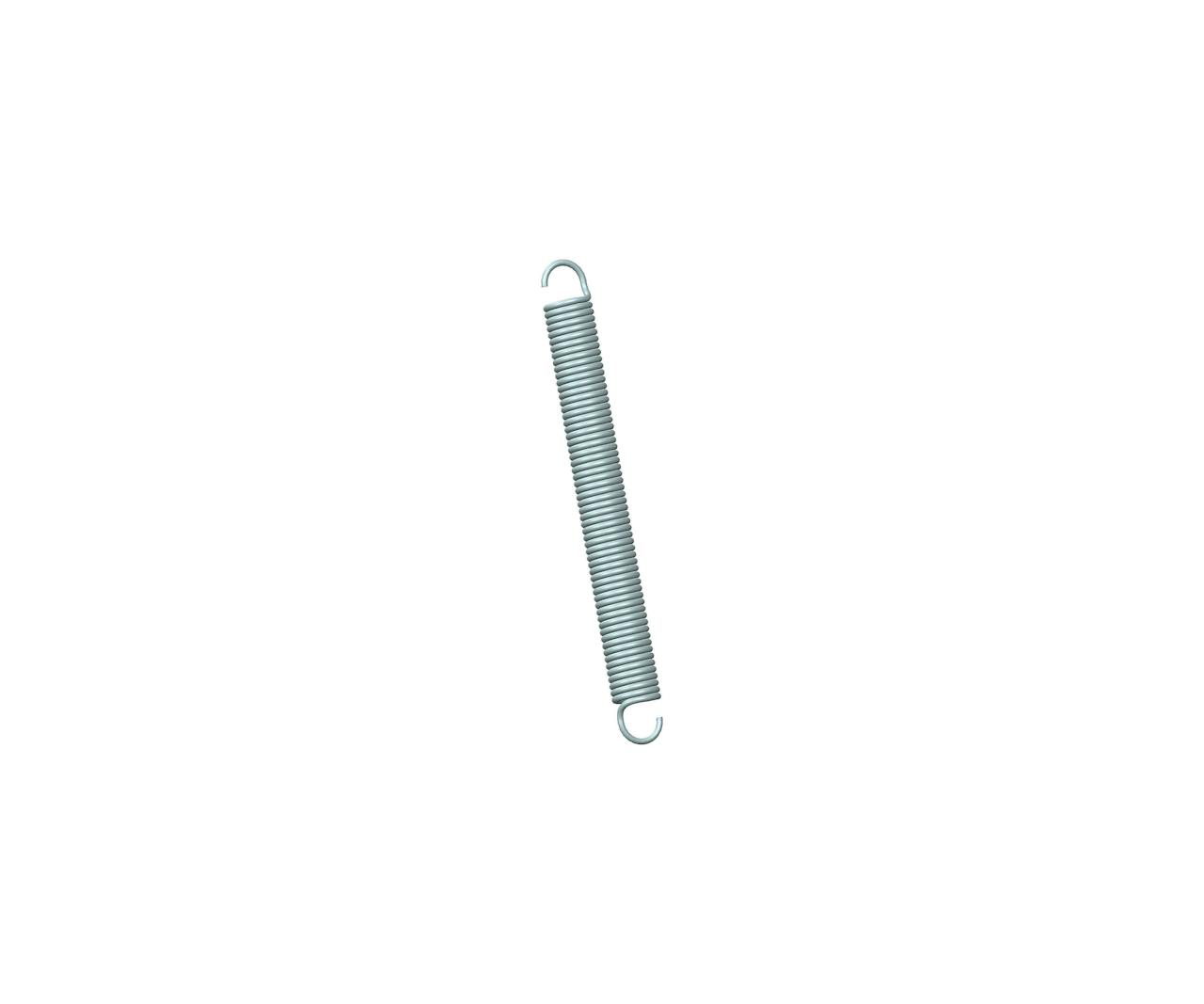

90426SCS - 2.5 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.71 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90426S
Ends Machine Hook
Finish Passivated
Initial Tension 0.71 lb
Length 2.5 in
Material 316 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 2.67 lbs/in
SKU 90426SCS
Sugg Max Deflection 0.627 in
Sugg Max Load 2.38 lbf
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90426S
Ends Machine Hook
Finish Passivated
Initial Tension 0.32 kg
Length 63.5 mm
Material 316 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.47 N/mm
SKU 90426SCS
Sugg Max Deflection 15.93 mm
Sugg Max Load 10.59 N
Wire Diameter 0.86 mm
