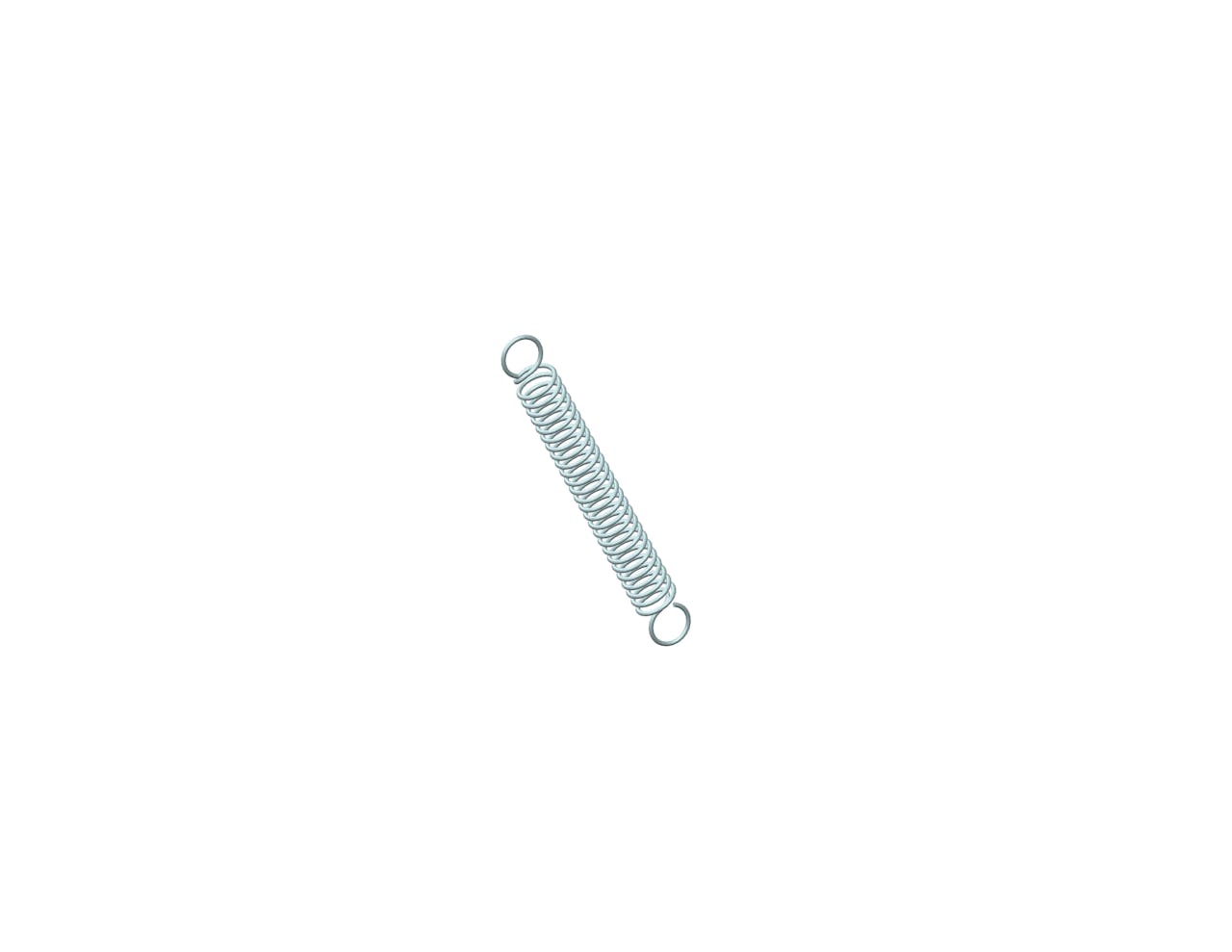

90108SCS - 0.5 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.109 Inch and an initial tension of 0.05 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90108S
Ends Full Loop
Finish Passivated
Initial Tension 0.05 lb
Length 0.5 in
Material 316 Stainless Steel
Outside Diameter 0.109 in
Part Type Standard
Rate 0.67 lbs/in
SKU 90108SCS
Sugg Max Deflection 0.285 in
Sugg Max Load 0.25 lbf
Wire Diameter 0.011 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 90108S
Ends Full Loop
Finish Passivated
Initial Tension 0.02 kg
Length 12.7 mm
Material 316 Stainless Steel
Outside Diameter 2.77 mm
Part Type Standard
Rate 0.12 N/mm
SKU 90108SCS
Sugg Max Deflection 7.24 mm
Sugg Max Load 1.11 N
Wire Diameter 0.28 mm
