S-3173CS - 1.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

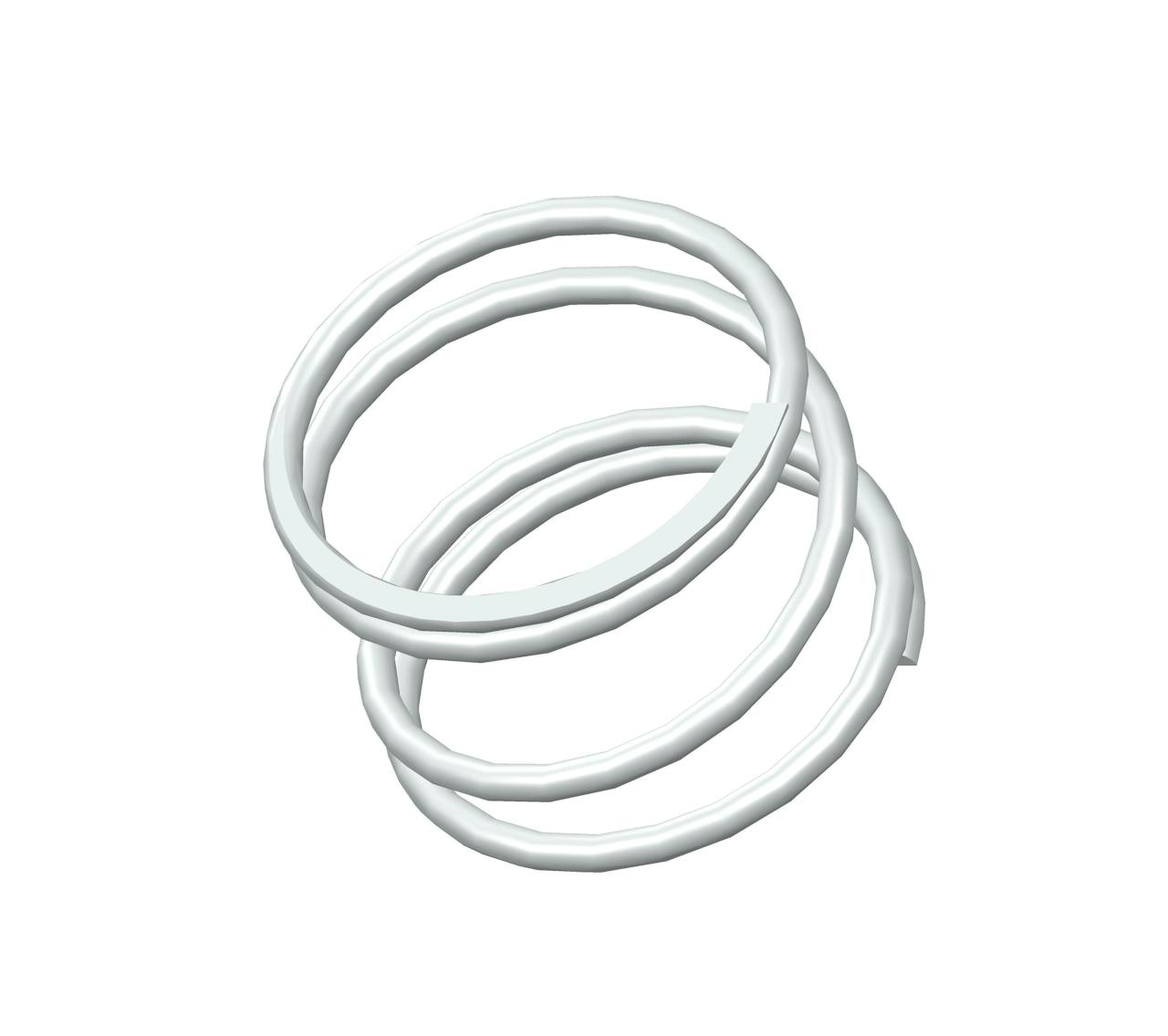

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.843", and an I.D. of 1.593".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3173 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 1.593 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.843 in |
| Part Type | Standard |
| Rate | 30 lbs/in |
| SKU | S-3173CS |
| Solid Length | 0.5 in |
| Suggested Max Deflection | 0.88 in |
| Suggested Max Load | 26 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3173 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 40.46 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 46.81 mm |
| Part Type | Standard |
| Rate | 5.25 N/mm |
| SKU | S-3173CS |
| Solid Length | 12.7 mm |
| Suggested Max Deflection | 22.35 mm |
| Suggested Max Load | 115.65 N |
| Total Coils | 4 |
| Wire Diameter | 3.18 mm |
The compression spring S-3173CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3173 compression spring design exhibits exceptional tensile strength and resilience.
The S-3173 design is manufactured with a free length of 1.38", with an outer diameter of 1.843", an inner diameter of 1.593", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The S-3173CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3173 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3173 design is manufactured with a free length of 1.38", with an outer diameter of 1.843", an inner diameter of 1.593", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 30 lbs/in.
The S-3173CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3173 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
