Century Spring

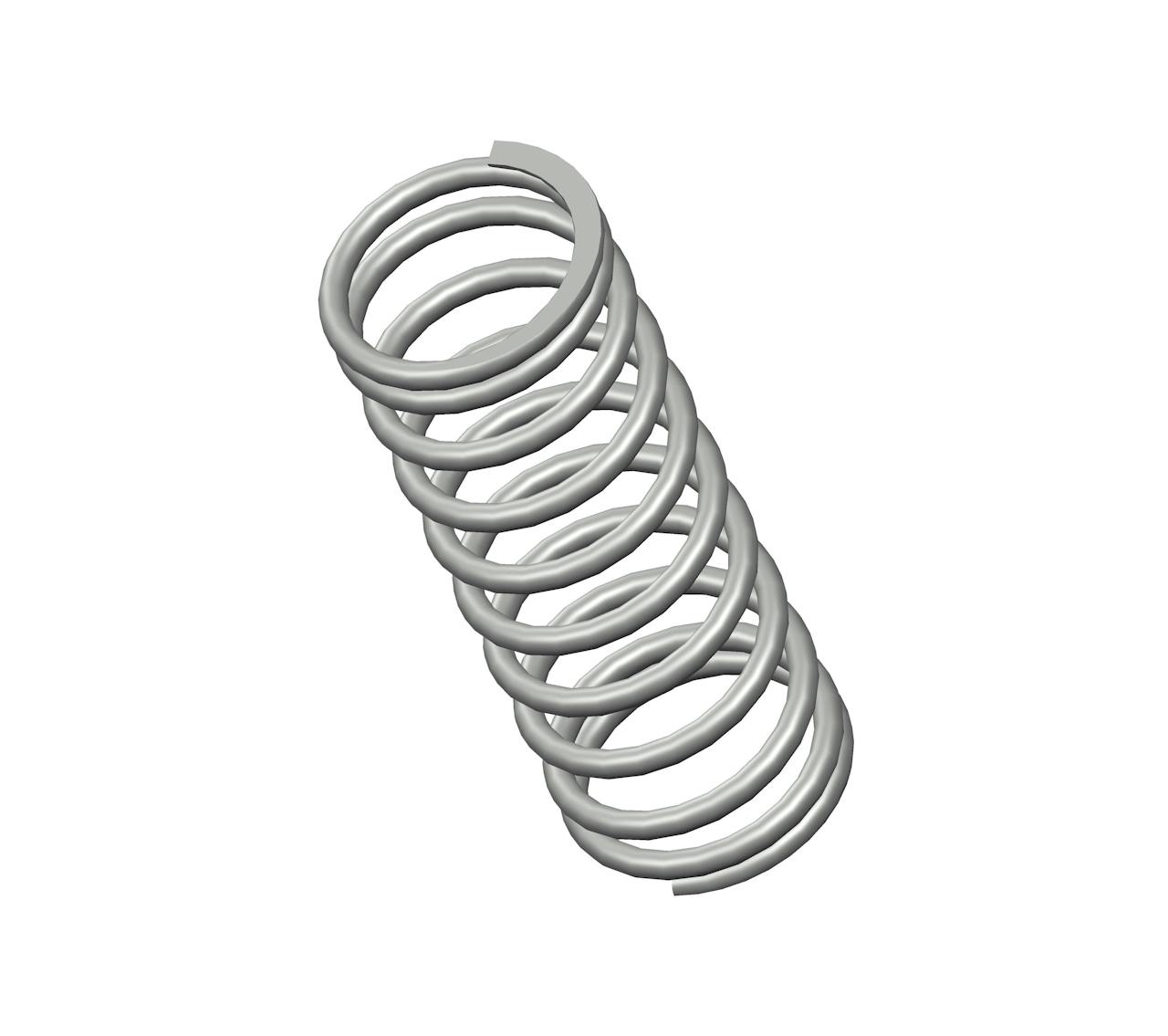

898CS - 3.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 10.5 coils and closed ends. This spring features an O.D. of 1.375", and an I.D. of 1.105".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 898
Ends Closed
Finish Zinc
Free Length 3.75 in
Inside Diameter 1.105 in
Material Spring Steel
Outside Diameter 1.375 in
Part Type Standard
Rate 29 lbs/in
SKU 898CS
Solid Length 1.55 in
Suggested Max Deflection 1.9 in
Suggested Max Load 55 lbf
Total Coils 10.5
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 898
Ends Closed
Finish Zinc
Free Length 95.25 mm
Inside Diameter 28.07 mm
Material Spring Steel
Outside Diameter 34.93 mm
Part Type Standard
Rate 5.08 N/mm
SKU 898CS
Solid Length 39.37 mm
Suggested Max Deflection 48.26 mm
Suggested Max Load 244.64 N
Total Coils 10.5
Wire Diameter 3.43 mm
The compression spring 898CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 898 compression spring design exhibits exceptional tensile strength and resilience.

The 898 design is manufactured with a free length of 3.75", with an outer diameter of 1.375", an inner diameter of 1.105", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.

The 898CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 898 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
