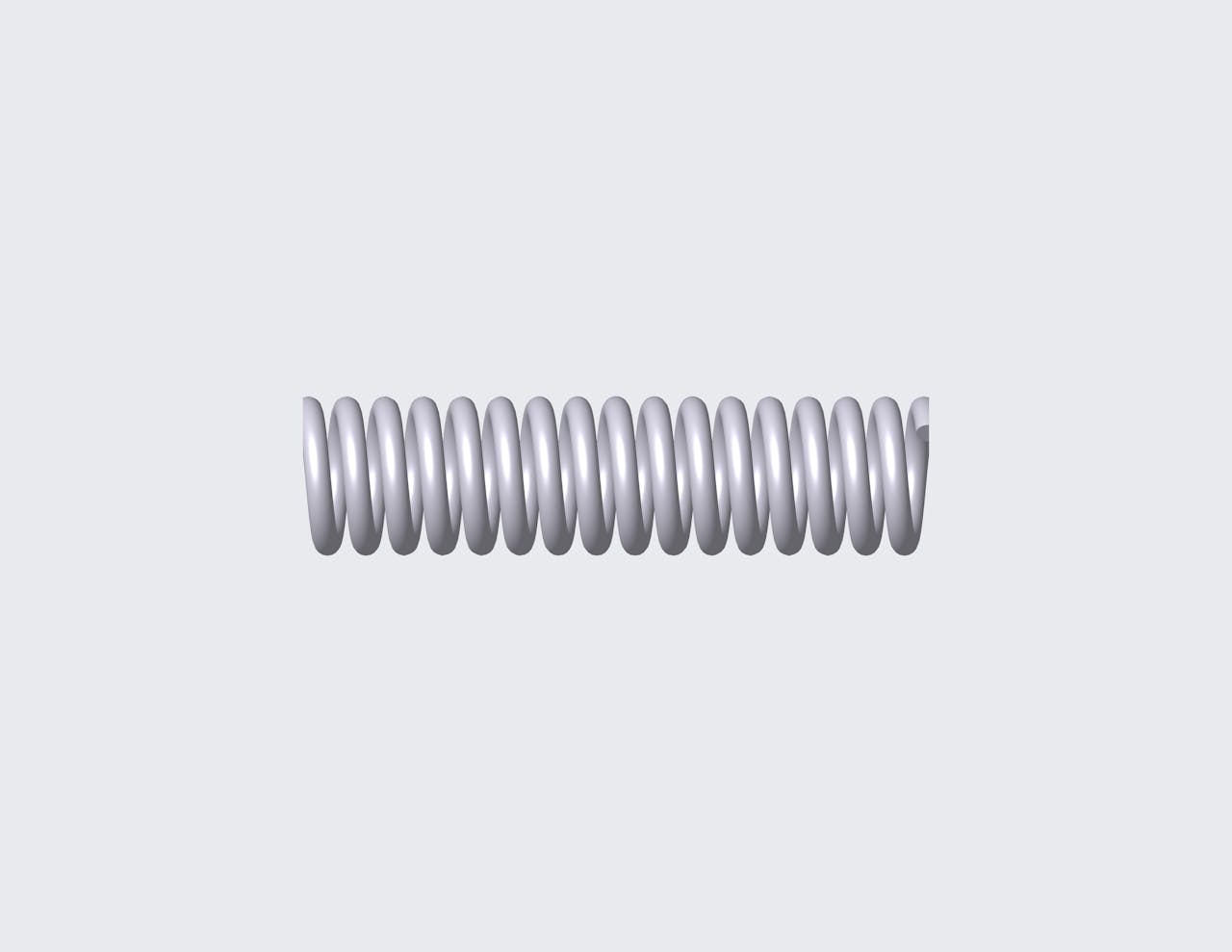

76339CS - 2.362" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 15.6 coils and closed & ground ends. This spring features an O.D. of 0.602", and an I.D. of 0.406".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76339 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.362 in |
| Inside Diameter | 0.406 in |
| Material | Music Wire |
| Outside Diameter | 0.602 in |
| Part Type | Metric |
| Rate | 77.512 lbs/in |
| SKU | 76339CS |
| Solid Length | 1.535 in |
| Suggested Max Deflection | 0.908 in |
| Suggested Max Load | 70.35 lbf |
| Total Coils | 15.6 |
| Wire Diameter | 0.098 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76339 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 59.99 mm |
| Inside Diameter | 10.31 mm |
| Material | Music Wire |
| Outside Diameter | 15.29 mm |
| Part Type | Metric |
| Rate | 13.57 N/mm |
| SKU | 76339CS |
| Solid Length | 38.99 mm |
| Suggested Max Deflection | 23.06 mm |
| Suggested Max Load | 312.92 N |
| Total Coils | 15.6 |
| Wire Diameter | 2.49 mm |
The compression spring 76339CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76339 compression spring design exhibits exceptional tensile strength and resilience.
The 76339 design is manufactured with a free length of 2.362", with an outer diameter of 0.602", an inner diameter of 0.406", and a total of 15.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 77.512 lbs/in.
The 76339CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76339 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76339 design is manufactured with a free length of 2.362", with an outer diameter of 0.602", an inner diameter of 0.406", and a total of 15.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 77.512 lbs/in.
The 76339CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76339 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
