Shop Online > Springs > Extension > Regular
81164SCS - 6 Inch 302/304 Stainless Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

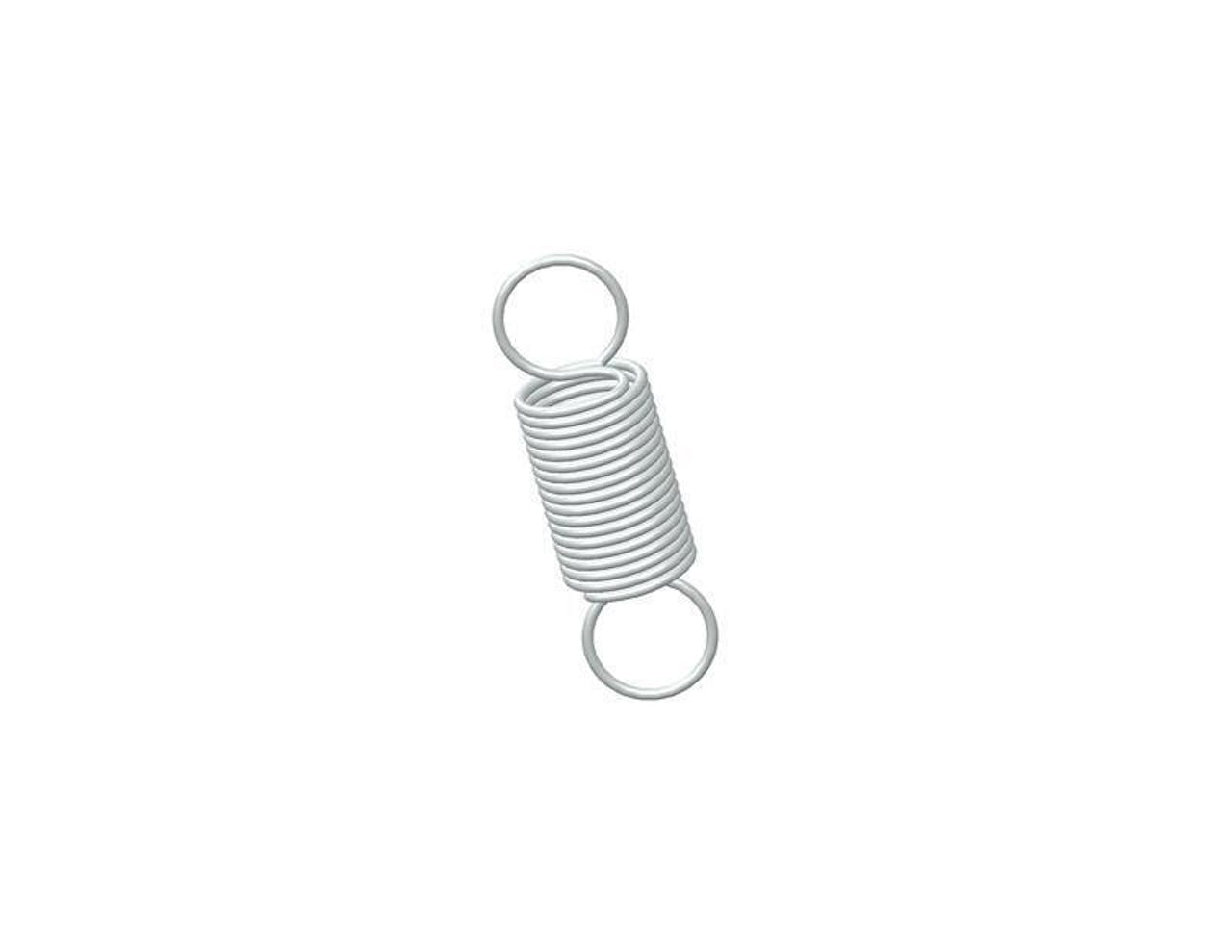

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 1.75 Inch and an initial tension of 5 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81164S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 5 lb |
| Length | 6 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.75 in |
| Part Type | Standard |
| Rate | 8 lbs/in |
| SKU | 81164SCS |
| Sugg Max Deflection | 5.1 in |
| Sugg Max Load | 46 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 81164S |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 2.27 kg |
| Length | 152.4 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 44.45 mm |
| Part Type | Standard |
| Rate | 1.4 N/mm |
| SKU | 81164SCS |
| Sugg Max Deflection | 129.54 mm |
| Sugg Max Load | 204.61 N |
| Wind Direction | Left |
| Wire Diameter | 3.76 mm |
