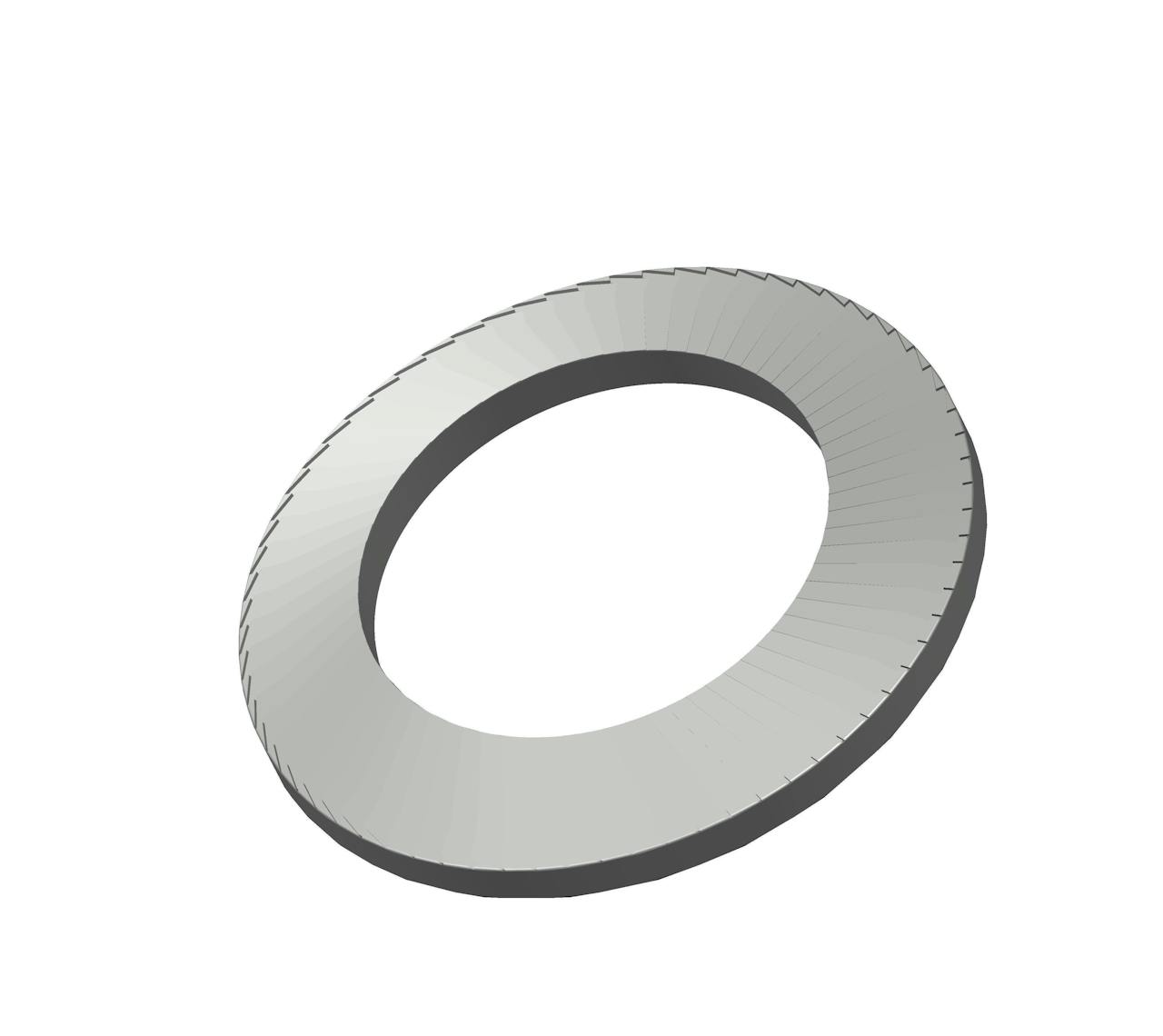

CCS006CS - 0.252 Inch ID 0.394 Inch OD Serrated Disc Spring

Inventory:
Estimated Lead Time

Serrated disc spring manufactured from Spring Steel with an inside diameter of 0.252 Inch and an outside diameter of 0.394 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CCS006
Finish None
H 0.028 in
Inside Diameter 0.252 in
Material Spring Steel
Max H 0.047 in
Measurement Units Standard
Outside Diameter 0.394 in
Outside Height 0.047 in
SKU CCS006CS
Series Light Series
T 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CCS006
Finish None
H 0.71 mm
Inside Diameter 6.4 mm
Material Spring Steel
Max H 1.19 mm
Measurement Units Standard
Outside Diameter 10.01 mm
Outside Height 1.19 mm
SKU CCS006CS
Series Light Series
T 0.61 mm
