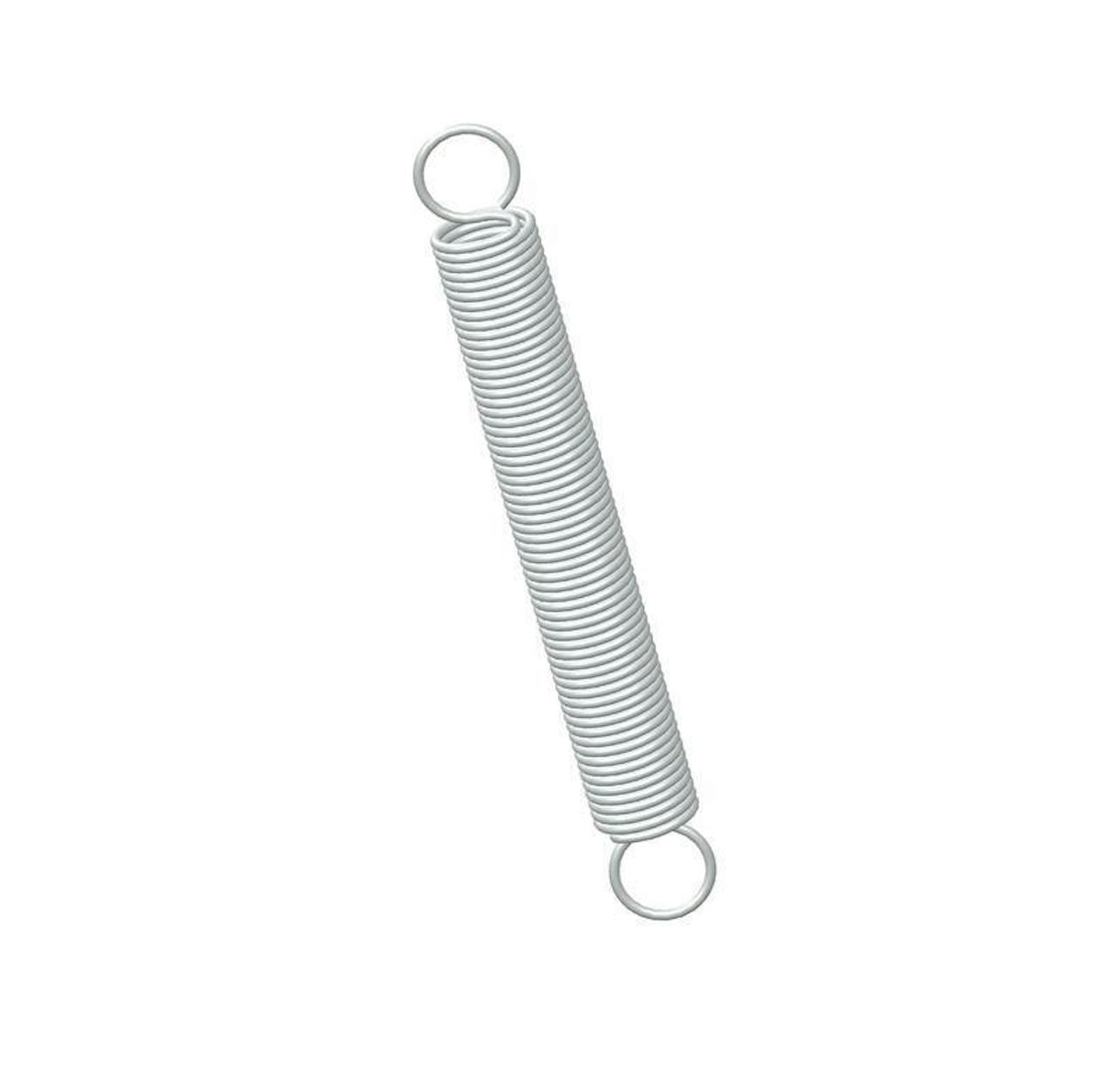

80866SCS - 6 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.75 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80866S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 6 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 2.1 lbs/in
SKU 80866SCS
Sugg Max Deflection 6.8 in
Sugg Max Load 16 lbf
Wire Diameter 0.075 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80866S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 152.4 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 0.37 N/mm
SKU 80866SCS
Sugg Max Deflection 172.72 mm
Sugg Max Load 71.17 N
Wire Diameter 1.91 mm
