50494SCS - 2.559" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

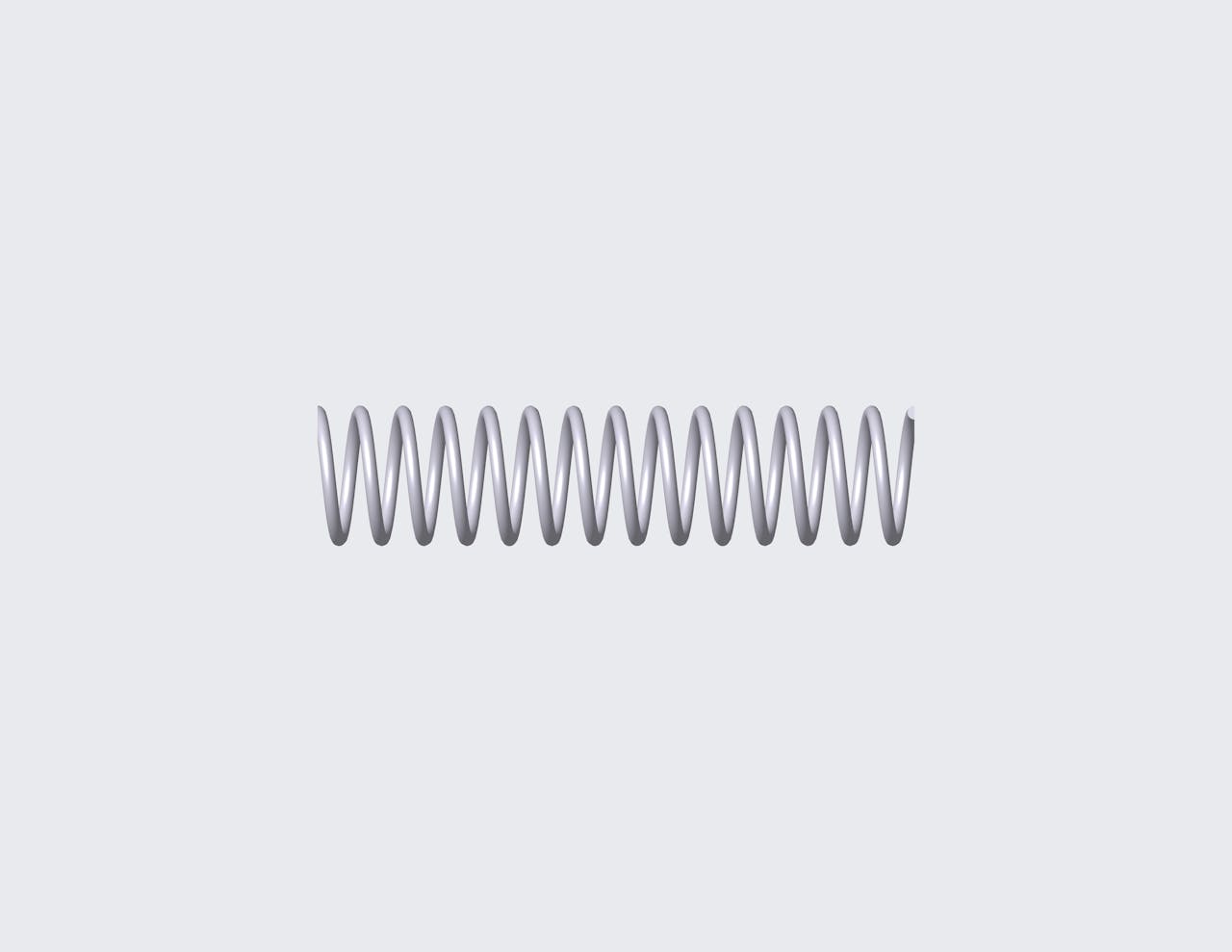

Compression spring manufactured from 316 stainless steel with 13.68 coils and closed & ground ends. This spring features an O.D. of 0.603", and an I.D. of 0.483".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50494S
Ends Closed & Ground
Finish Passivated
Free Length 2.559 in
Inside Diameter 0.483 in
Material 316 Stainless Steel
Outside Diameter 0.603 in
Rate 8.558 lbs/in
SKU 50494SCS
Solid Length 0.819 in
Suggested Max Deflection 1.199 in
Suggested Max Load 10.264 lbf
Total Coils 13.68
Wire Diameter 0.06 in
The 50494S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50494SCS compression spring is designed with a free length of 2.165" total of 11.73 coils, and a rate of 10.273 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50494S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
