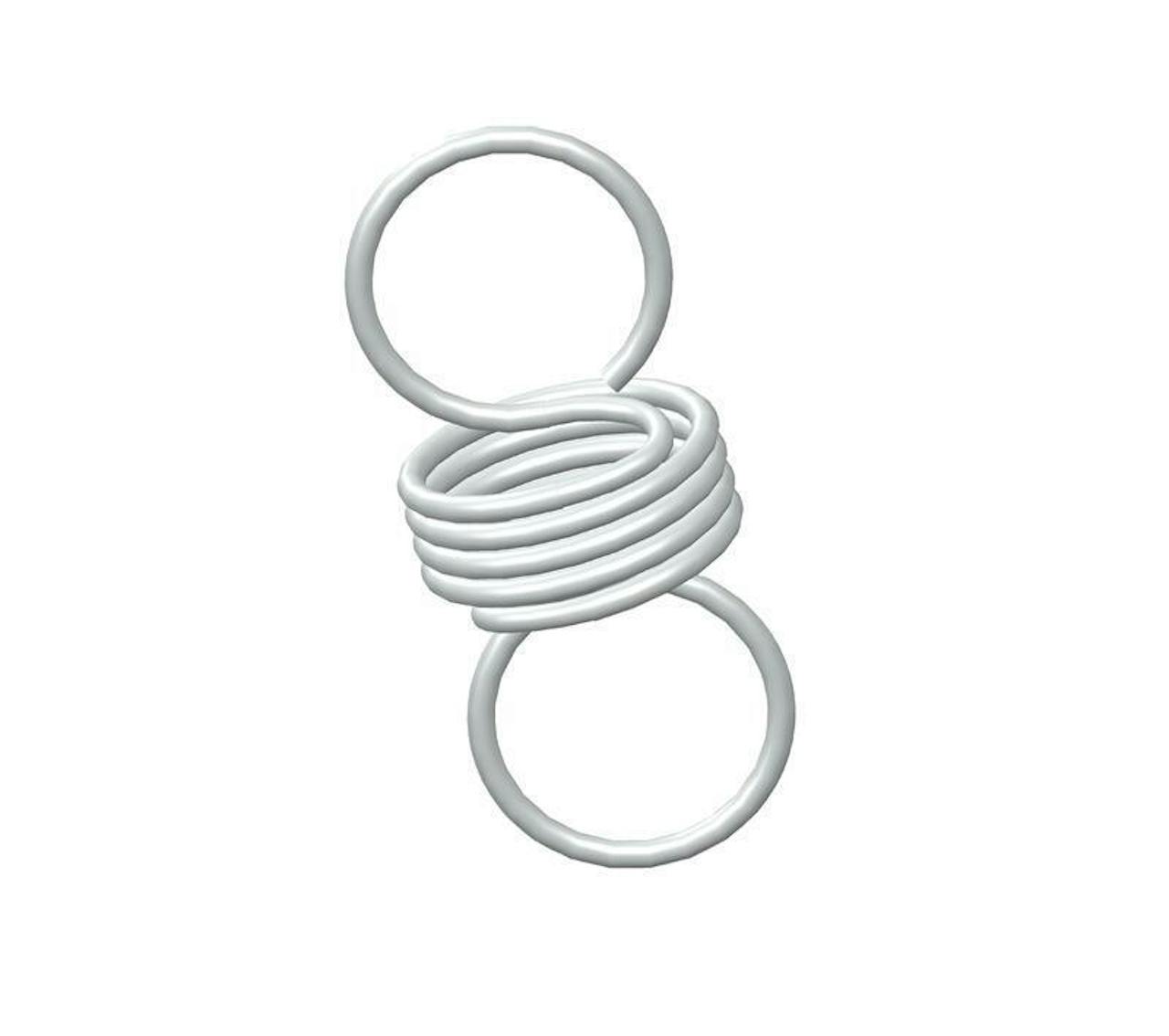

80793SCS - 1.5 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.65 Inch and an initial tension of 0.8 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80793S
Ends Full Loop
Finish None
Initial Tension 0.8 lb
Length 1.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.65 in
Part Type Standard
Rate 11 lbs/in
SKU 80793SCS
Sugg Max Deflection 0.61 in
Sugg Max Load 7.8 lbf
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80793S
Ends Full Loop
Finish None
Initial Tension 0.36 kg
Length 38.1 mm
Material 302/304 Stainless Steel
Outside Diameter 16.51 mm
Part Type Standard
Rate 1.93 N/mm
SKU 80793SCS
Sugg Max Deflection 15.49 mm
Sugg Max Load 34.69 N
Wire Diameter 1.4 mm
