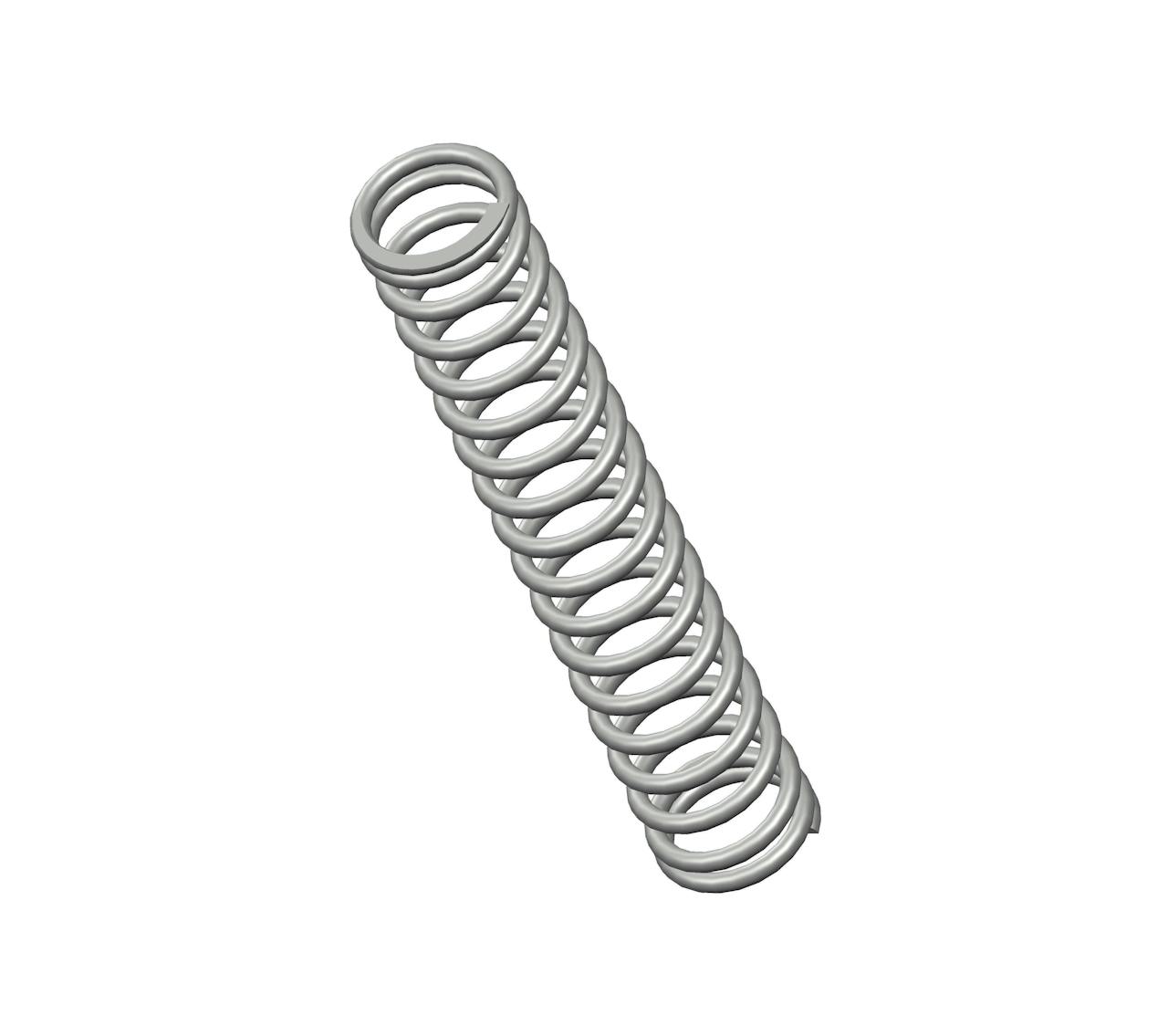

EE-93CS - 2.38" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 18 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.306".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name EE-93
Ends Closed & Ground
Finish Zinc
Free Length 2.38 in
Inside Diameter 0.306 in
Material Spring Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 12 lbs/in
SKU EE-93CS
Solid Length 0.9 in
Suggested Max Deflection 0.88 in
Suggested Max Load 11 lbf
Total Coils 18
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name EE-93
Ends Closed & Ground
Finish Zinc
Free Length 60.45 mm
Inside Diameter 7.77 mm
Material Spring Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 2.1 N/mm
SKU EE-93CS
Solid Length 22.86 mm
Suggested Max Deflection 22.35 mm
Suggested Max Load 48.93 N
Total Coils 18
Wire Diameter 1.27 mm
The EE-93CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.05" diameter spring steel, the EE-93 spring design exhibits reliable strength across its 18 active coils, withstanding repeated compression cycles with a maximum load of 11 lbf without succumbing to fatigue.

We manufacture the EE-93 design to provide a compression spring that is 2.38" long at rest and provides a consistent rate of 12 lbs/in along its recommended maximum of 0.88" deflection. For best results, your application should fully accommodate the inner (0.306") and outer (0.406") diameters of this spring and be designed for its closed & ground end configuration.
