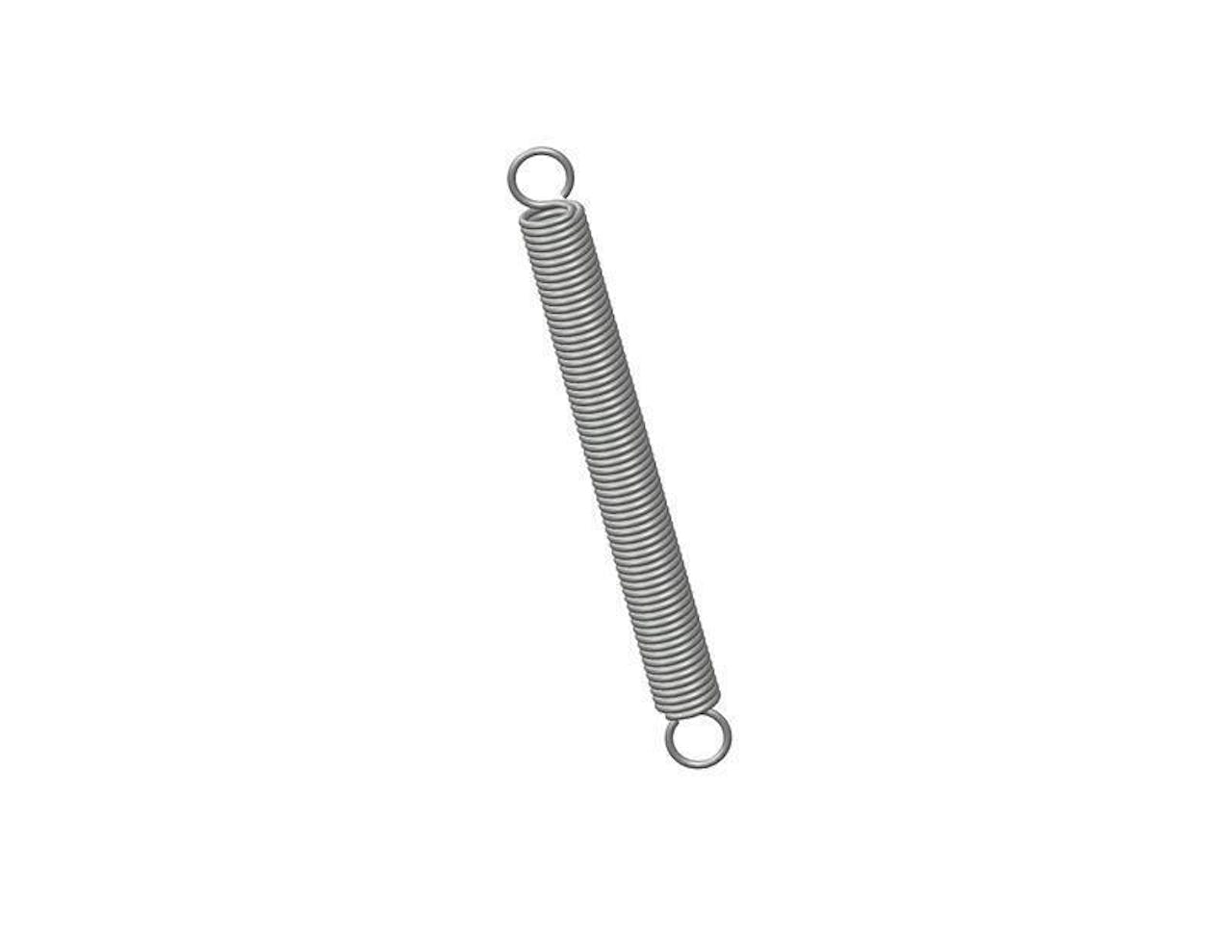

80723CS - 5 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.5 Inch and an initial tension of 3.6 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80723
Ends Full Loop
Finish None
Initial Tension 3.6 lb
Length 5 in
Material Music Wire
Outside Diameter 0.5 in
Part Type Standard
Rate 4.3 lbs/in
SKU 80723CS
Sugg Max Deflection 4.6 in
Sugg Max Load 21 lbf
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80723
Ends Full Loop
Finish None
Initial Tension 1.63 kg
Length 127 mm
Material Music Wire
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.75 N/mm
SKU 80723CS
Sugg Max Deflection 116.84 mm
Sugg Max Load 93.41 N
Wire Diameter 1.59 mm
