Century Spring

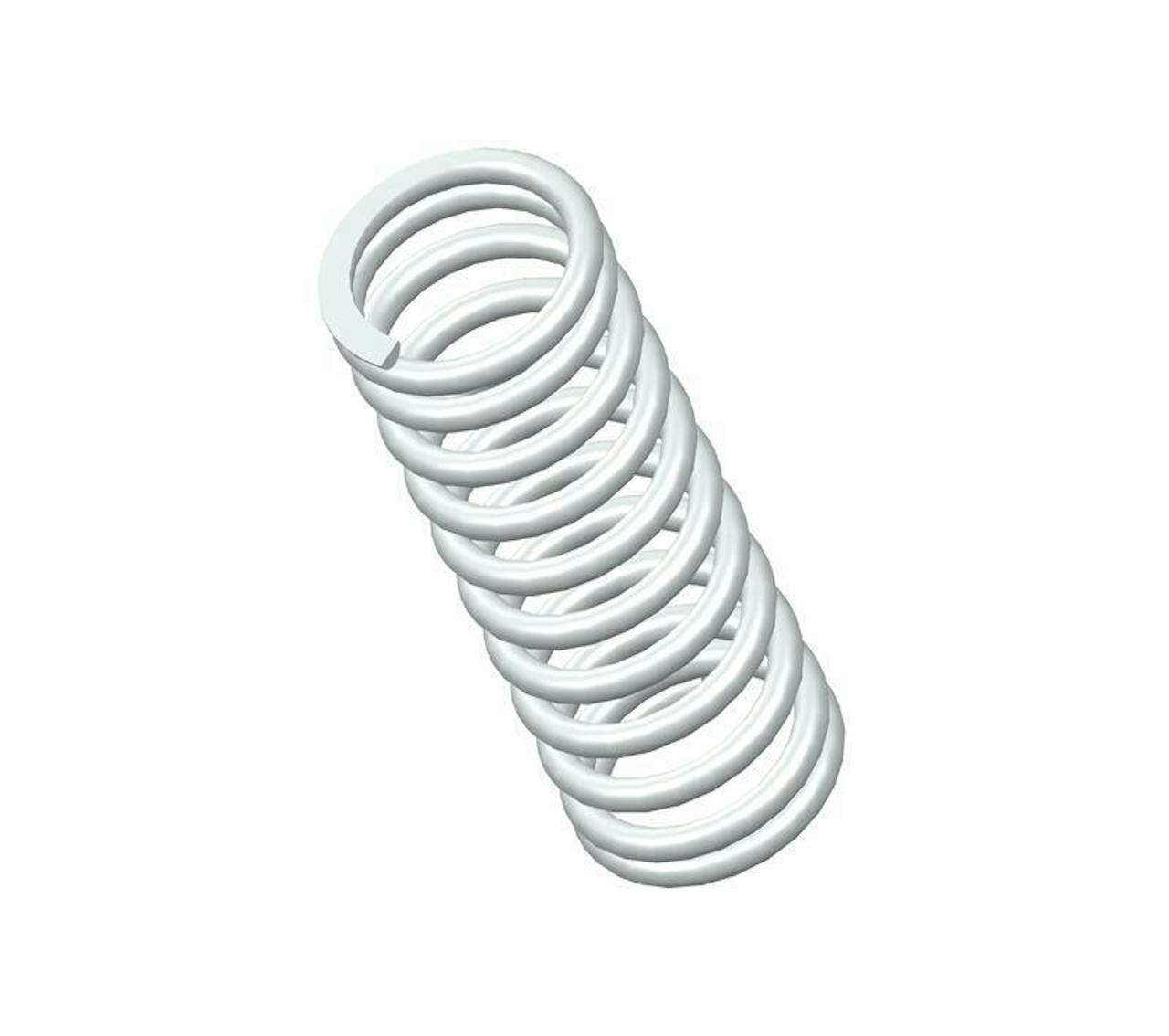

72717SCS - 3.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.4 coils and closed & ground ends. This spring features an O.D. of 1.225", and an I.D. of 0.929".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72717S
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 0.929 in
Material 302/304 Stainless Steel
Outside Diameter 1.225 in
Part Type Standard
Rate 50 lbs/in
SKU 72717SCS
Solid Length 1.68 in
Suggested Max Deflection 1.4 in
Suggested Max Load 73 lbf
Total Coils 11.4
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72717S
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 23.6 mm
Material 302/304 Stainless Steel
Outside Diameter 31.12 mm
Part Type Standard
Rate 8.76 N/mm
SKU 72717SCS
Solid Length 42.67 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 324.7 N
Total Coils 11.4
Wire Diameter 3.76 mm
The 72717SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter 302/304 stainless steel, the 72717S spring design exhibits reliable strength across its 11.4 active coils, withstanding repeated compression cycles with a maximum load of 73 lbf without succumbing to fatigue.

We manufacture the 72717S design to provide a compression spring that is 3.5" long at rest and provides a consistent rate of 50 lbs/in along its recommended maximum of 1.4" deflection. For best results, your application should fully accommodate the inner (0.929") and outer (1.225") diameters of this spring and be designed for its closed & ground end configuration.
