Century Spring

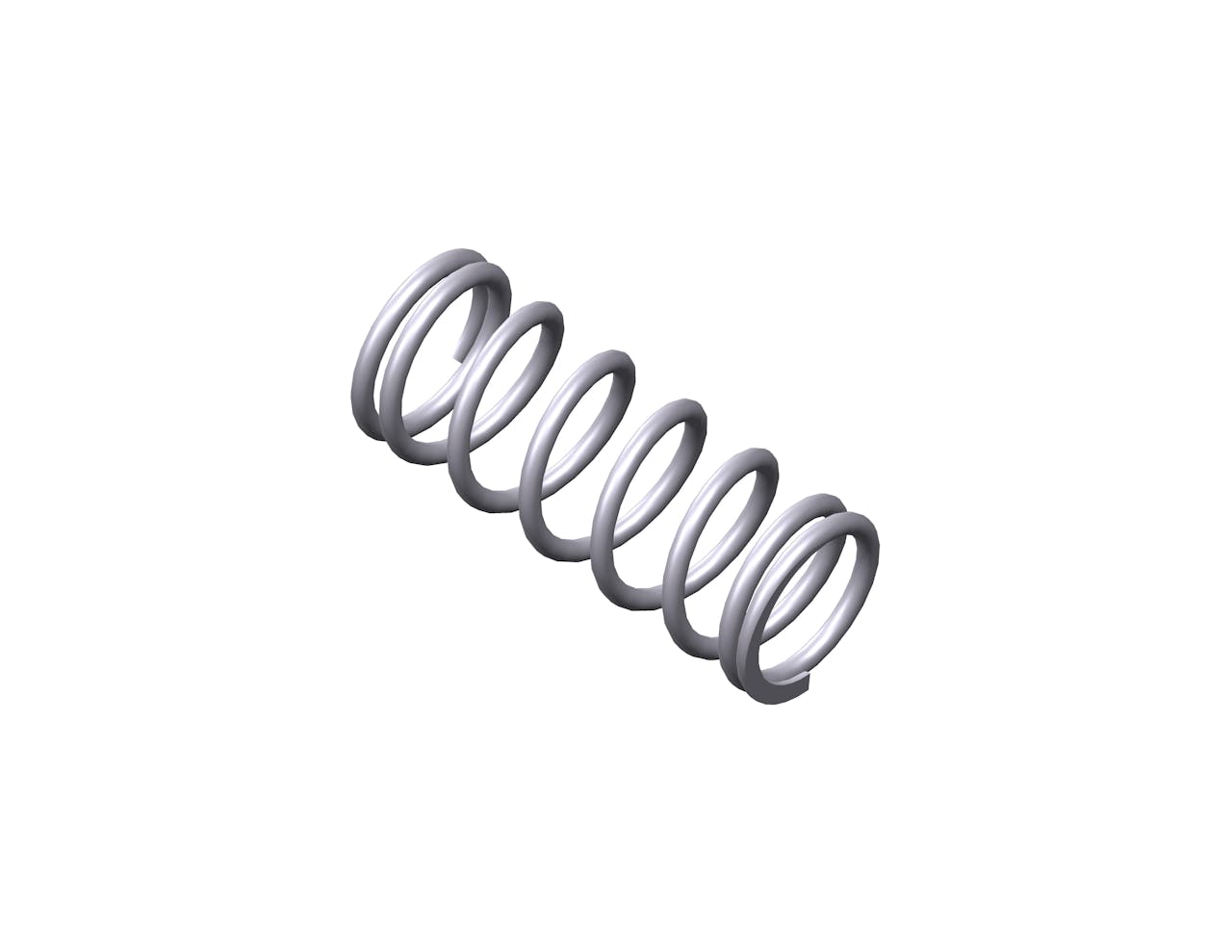

60567SCS - 0.375" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7.9 coils and closed & ground ends. This spring features an O.D. of 0.148", and an I.D. of 0.116".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 60567S
Ends Closed & Ground
Finish Passivated
Free Length 0.375 in
Inside Diameter 0.116 in
Material 316 Stainless Steel
Outside Diameter 0.148 in
Part Type Standard
Rate 6.25 lbs/in
SKU 60567SCS
Solid Length 0.126 in
Suggested Max Deflection 0.144 in
Suggested Max Load 0.898 lbf
Total Coils 7.9
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 60567S
Ends Closed & Ground
Finish Passivated
Free Length 9.53 mm
Inside Diameter 2.95 mm
Material 316 Stainless Steel
Outside Diameter 3.76 mm
Part Type Standard
Rate 1.09 N/mm
SKU 60567SCS
Solid Length 3.2 mm
Suggested Max Deflection 3.66 mm
Suggested Max Load 3.99 N
Total Coils 7.9
Wire Diameter 0.41 mm
The 60567SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter 316 stainless steel, the 60567S spring design exhibits reliable strength across its 7.9 active coils, withstanding repeated compression cycles with a maximum load of 0.898 lbf without succumbing to fatigue.

We manufacture the 60567S design to provide a compression spring that is 0.375" long at rest and provides a consistent rate of 6.25 lbs/in along its recommended maximum of 0.144" deflection. For best results, your application should fully accommodate the inner (0.116") and outer (0.148") diameters of this spring and be designed for its closed & ground end configuration.
