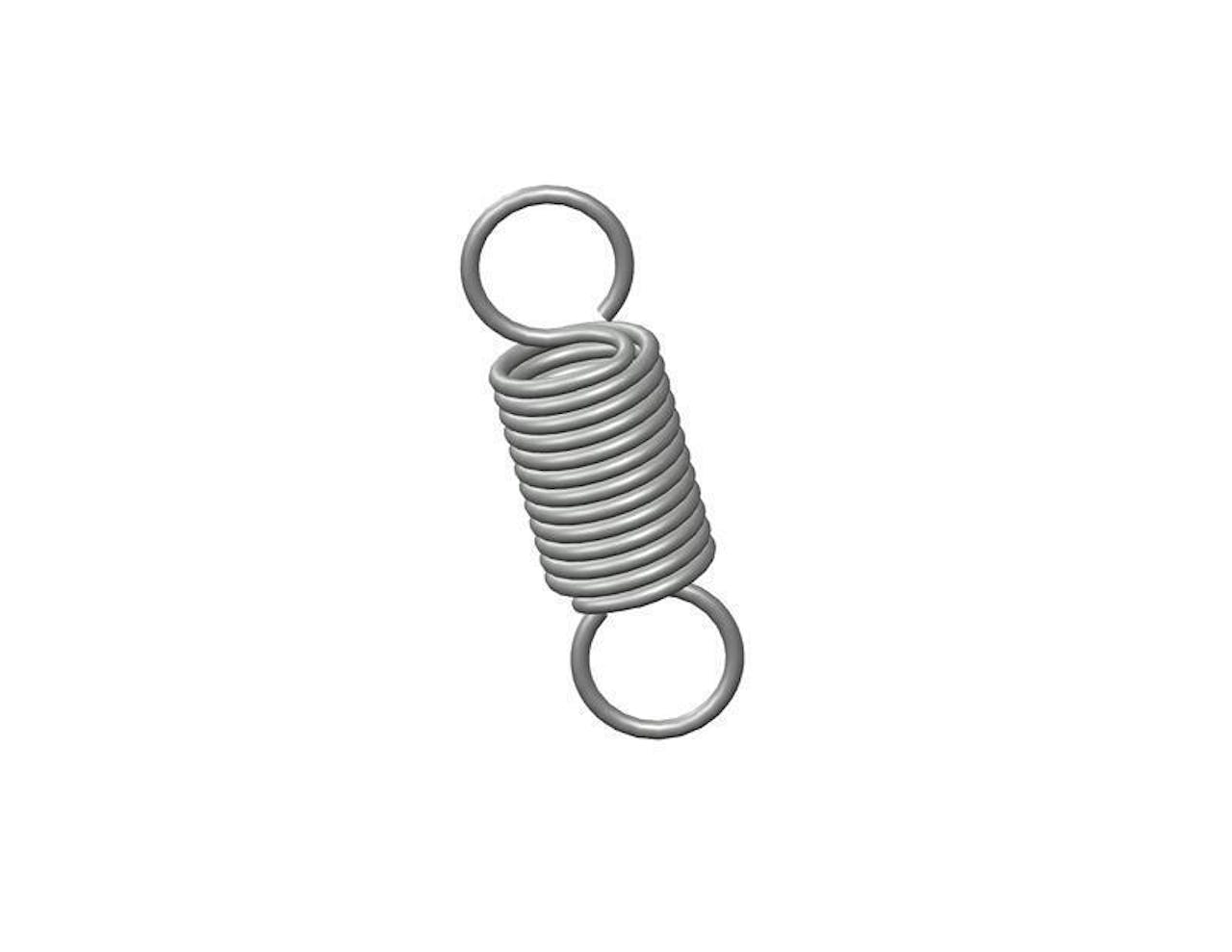

80620CS - 1.38 Inch Music Wire Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Music Wire. This spring features an O.D. of 0.42 Inch and an initial tension of 1 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80620 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 1 lb |
| Length | 1.38 in |
| Material | Music Wire |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 8 lbs/in |
| SKU | 80620CS |
| Sugg Max Deflection | 1.2 in |
| Sugg Max Load | 11 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.046 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 80620 |
| Ends | Full Loop |
| Finish | None |
| Initial Tension | 0.45 kg |
| Length | 35.05 mm |
| Material | Music Wire |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 1.4 N/mm |
| SKU | 80620CS |
| Sugg Max Deflection | 30.48 mm |
| Sugg Max Load | 48.93 N |
| Wind Direction | Left |
| Wire Diameter | 1.17 mm |
