Century Spring

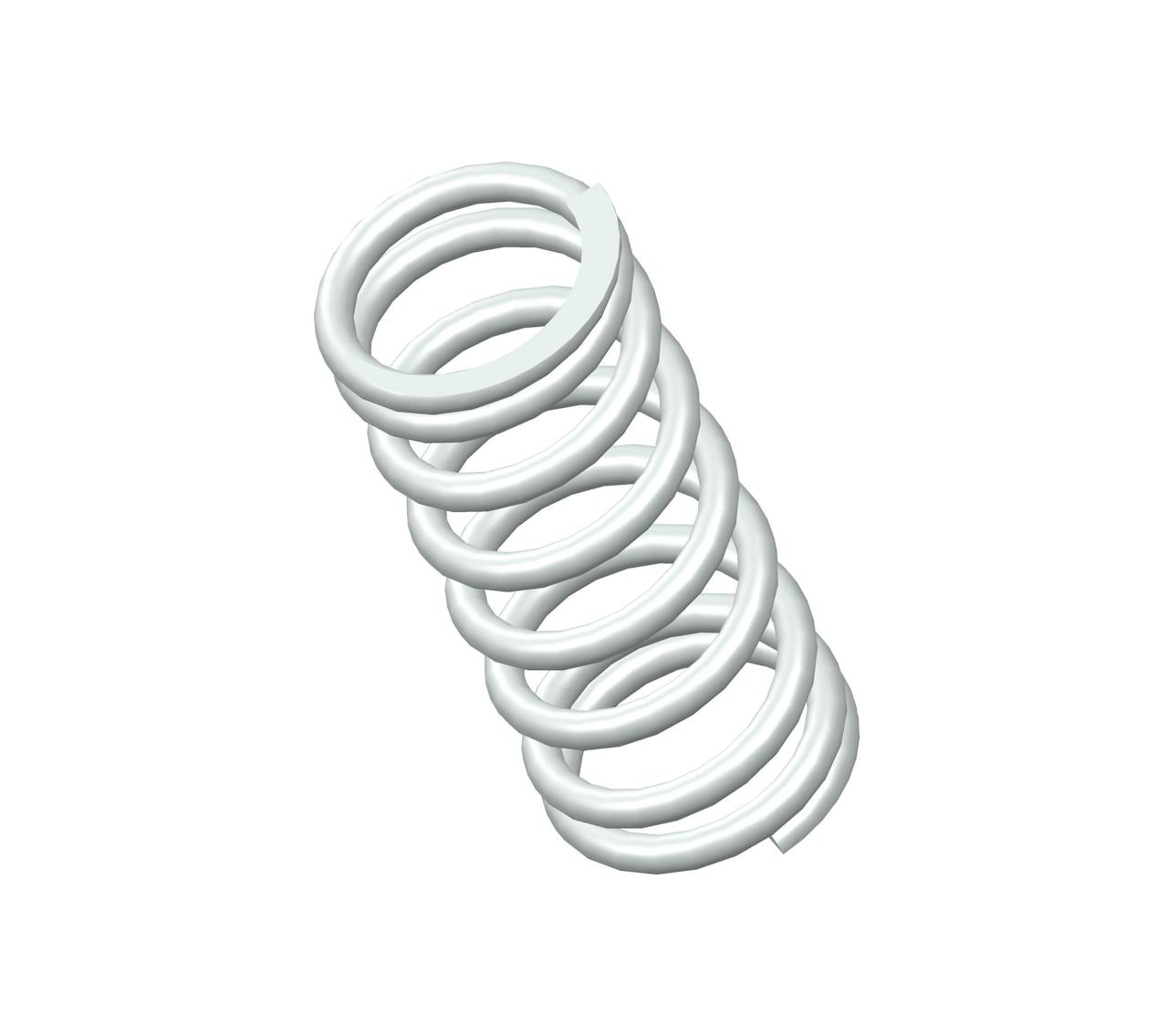

B1-5CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8.25 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.236".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B1-5
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.236 in
Material 302/304 Stainless Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 21 lbs/in
SKU B1-5CS
Solid Length 0.31 in
Suggested Max Deflection 0.3 in
Suggested Max Load 6.3 lbf
Total Coils 8.25
Wire Diameter 0.038 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B1-5
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 5.99 mm
Material 302/304 Stainless Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 3.68 N/mm
SKU B1-5CS
Solid Length 7.87 mm
Suggested Max Deflection 7.62 mm
Suggested Max Load 28.02 N
Total Coils 8.25
Wire Diameter 0.97 mm
The B1-5 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B1-5CS compression spring is designed with a free length of 1.47" total of 8.5 coils, and a rate of 7.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B1-5 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
