Century Spring

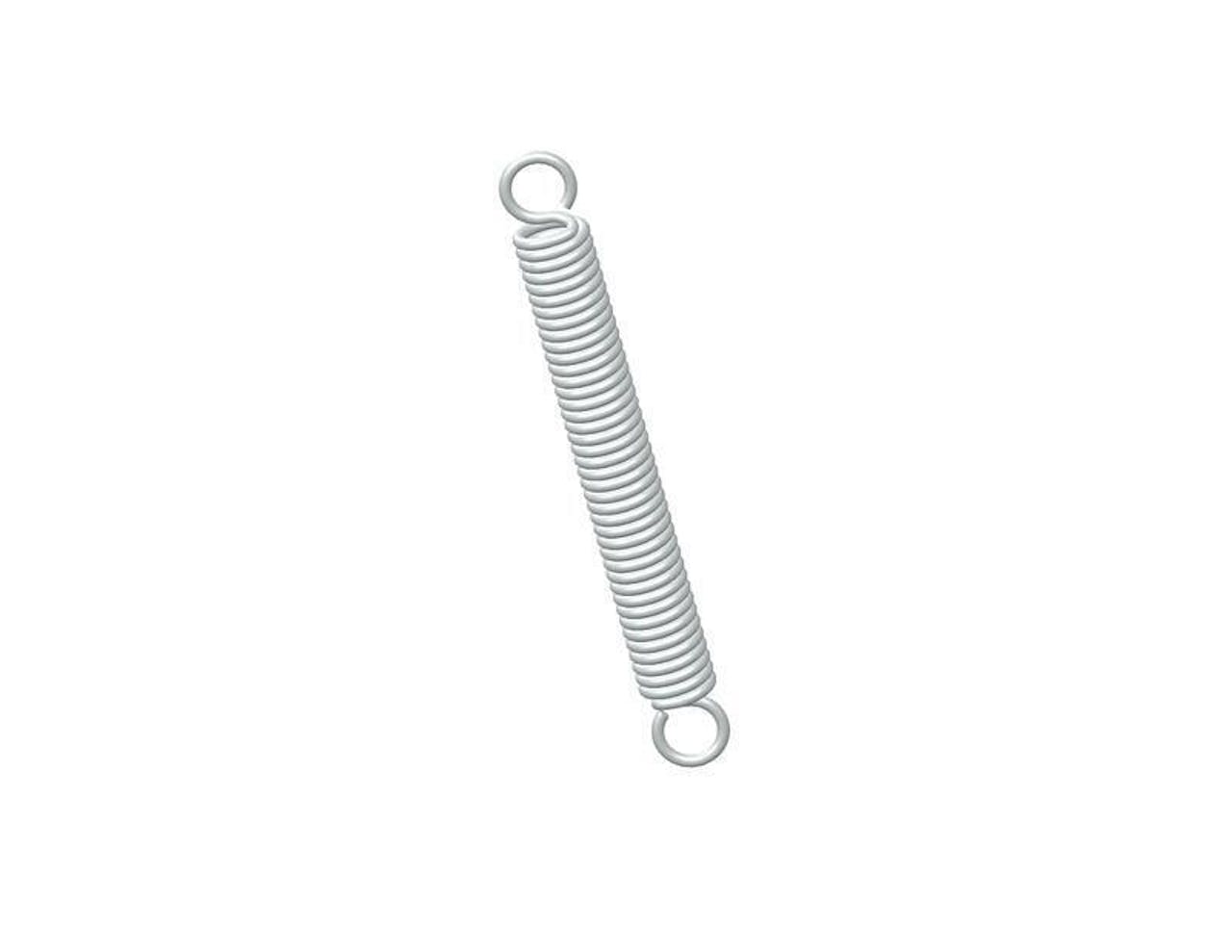

80588SCS - 3 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80588S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 3 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 11 lbs/in
SKU 80588SCS
Sugg Max Deflection 1.2 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.058 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80588S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 76.2 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 1.93 N/mm
SKU 80588SCS
Sugg Max Deflection 30.48 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 1.47 mm
