Century Spring

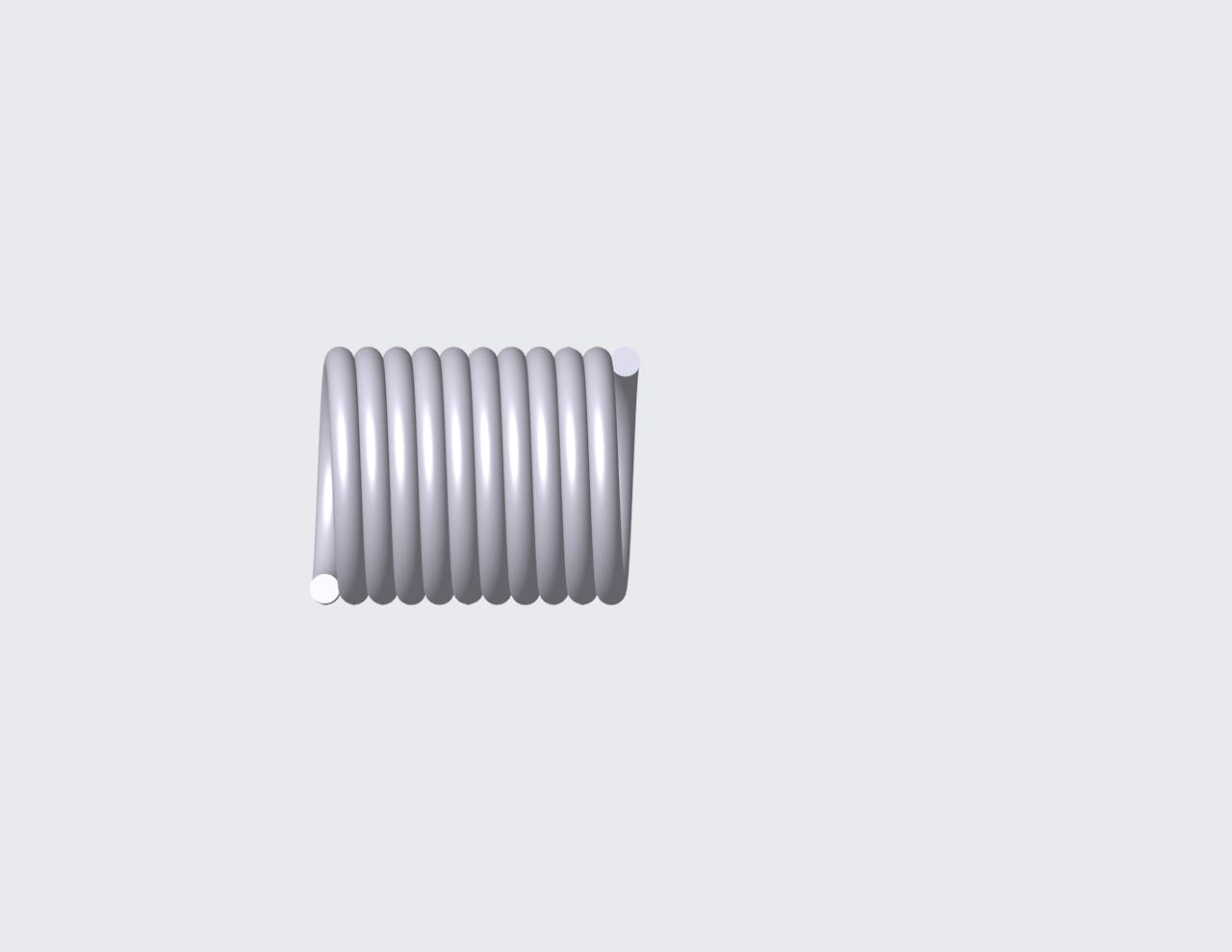

73010CS - 3" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 6.88 coils and closed & ground ends. This spring features an O.D. of 1.937", and an I.D. of 1.437".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 73010
Ends Closed & Ground
Finish None
Free Length 3 in
Inside Diameter 1.437 in
Material Music Wire
Outside Diameter 1.937 in
Part Type Standard
Rate 237 lbs/in
SKU 73010CS
Solid Length 1.72 in
Suggested Max Deflection 1.3 in
Suggested Max Load 304 lbf
Total Coils 6.88
Wire Diameter 0.25 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 73010
Ends Closed & Ground
Finish None
Free Length 76.2 mm
Inside Diameter 36.5 mm
Material Music Wire
Outside Diameter 49.2 mm
Part Type Standard
Rate 41.5 N/mm
SKU 73010CS
Solid Length 43.69 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 1352.19 N
Total Coils 6.88
Wire Diameter 6.35 mm
The 73010 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 73010CS compression spring is designed with a free length of 2.5" total of 6 coils, and a rate of 252 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 73010 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
