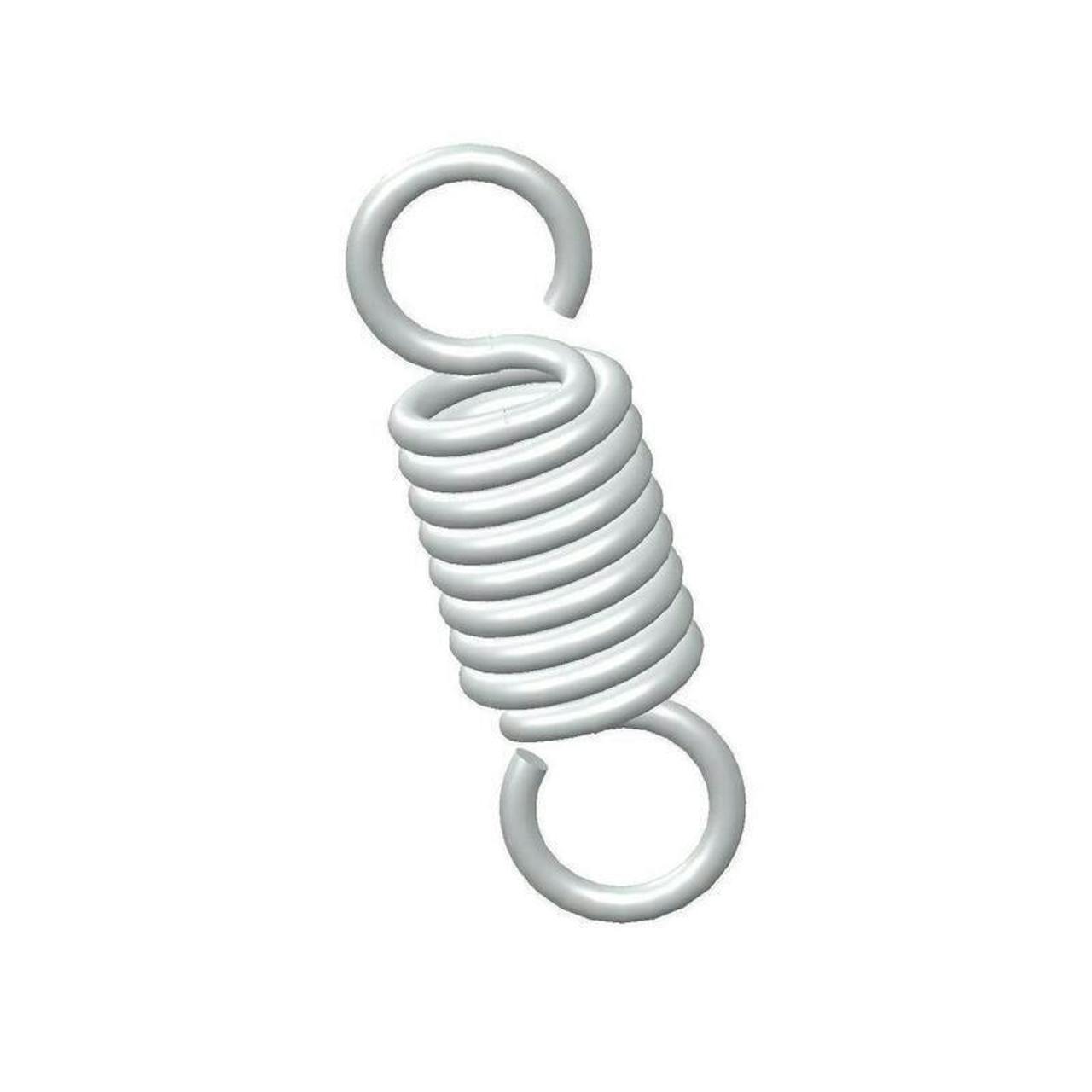

80090SCS - 0.38 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.12 Inch and an initial tension of 0.41 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80090S
Ends Full Loop
Finish None
Initial Tension 0.41 lb
Length 0.38 in
Material 302/304 Stainless Steel
Outside Diameter 0.12 in
Part Type Standard
Rate 12 lbs/in
SKU 80090SCS
Sugg Max Deflection 0.12 in
Sugg Max Load 1.6 lbf
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80090S
Ends Full Loop
Finish None
Initial Tension 0.19 kg
Length 9.65 mm
Material 302/304 Stainless Steel
Outside Diameter 3.05 mm
Part Type Standard
Rate 2.1 N/mm
SKU 80090SCS
Sugg Max Deflection 3.05 mm
Sugg Max Load 7.12 N
Wire Diameter 0.46 mm
