Century Spring

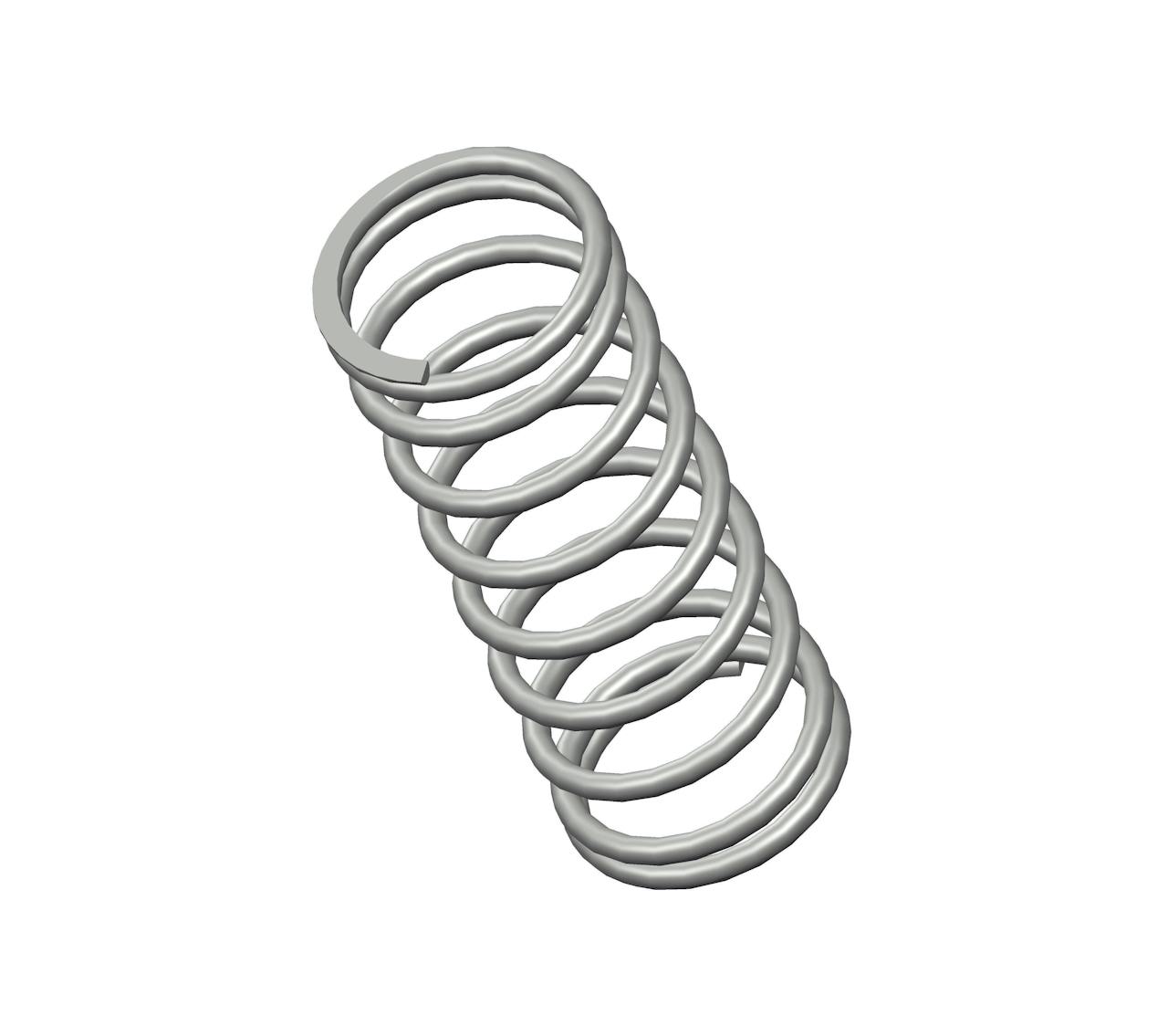

72894CS - 4.5" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9.5 coils and closed & ground ends. This spring features an O.D. of 1.687", and an I.D. of 1.375".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72894
Ends Closed & Ground
Finish None
Free Length 4.5 in
Inside Diameter 1.375 in
Material Music Wire
Outside Diameter 1.687 in
Part Type Standard
Rate 32 lbs/in
SKU 72894CS
Solid Length 1.48 in
Suggested Max Deflection 3 in
Suggested Max Load 95 lbf
Total Coils 9.5
Wire Diameter 0.156 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 72894
Ends Closed & Ground
Finish None
Free Length 114.3 mm
Inside Diameter 34.93 mm
Material Music Wire
Outside Diameter 42.85 mm
Part Type Standard
Rate 5.6 N/mm
SKU 72894CS
Solid Length 37.59 mm
Suggested Max Deflection 76.2 mm
Suggested Max Load 422.56 N
Total Coils 9.5
Wire Diameter 3.96 mm
The 72894 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 72894CS compression spring is designed with a free length of 4" total of 8.63 coils, and a rate of 31 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 72894 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
