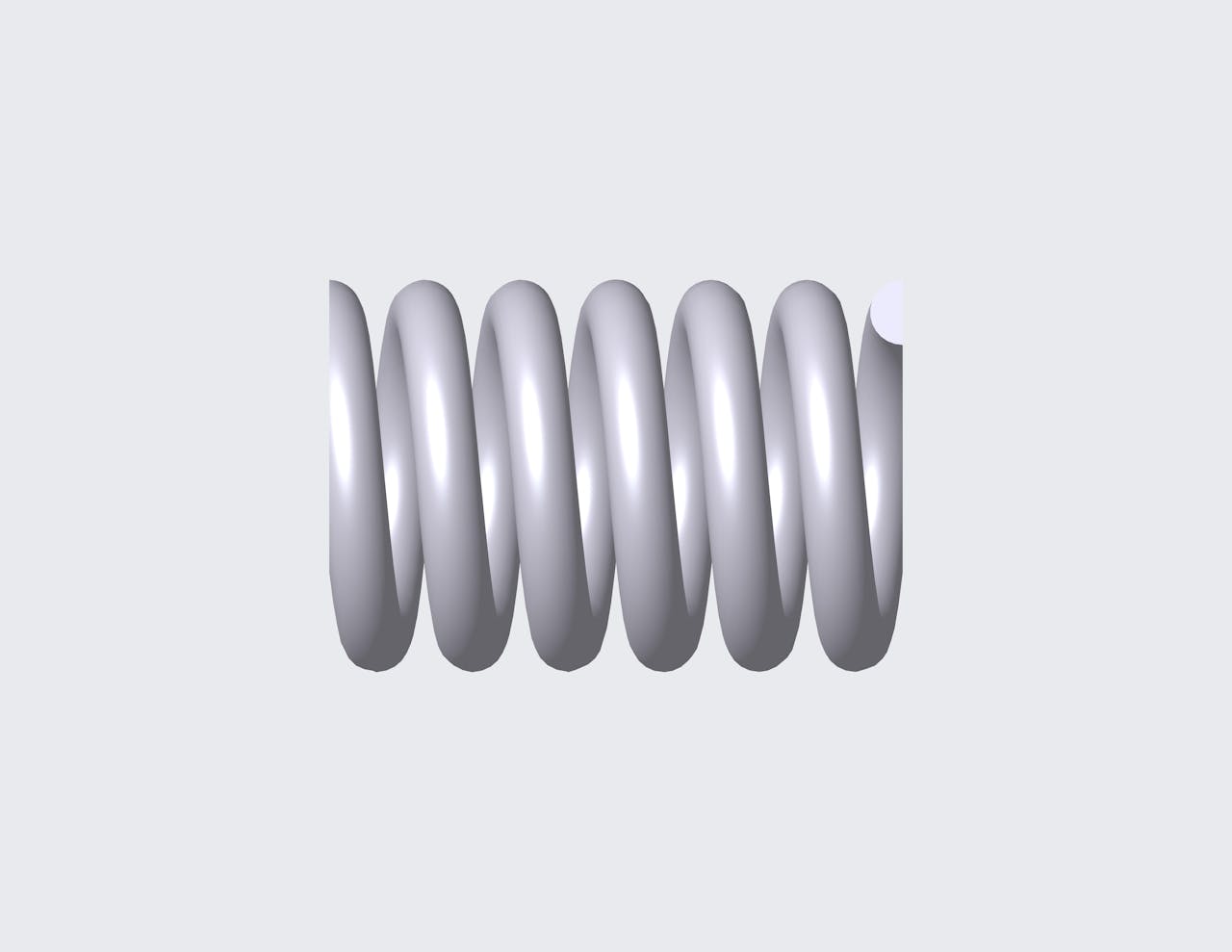

76438CS - 1.102" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 5.3 coils and closed & ground ends. This spring features an O.D. of 0.755", and an I.D. of 0.505".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76438
Ends Closed & Ground
Finish None
Free Length 1.102 in
Inside Diameter 0.505 in
Material Music Wire
Outside Diameter 0.755 in
Part Type Metric
Rate 428.164 lbs/in
SKU 76438CS
Solid Length 0.664 in
Suggested Max Deflection 0.258 in
Suggested Max Load 110.649 lbf
Total Coils 5.3
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76438
Ends Closed & Ground
Finish None
Free Length 27.99 mm
Inside Diameter 12.83 mm
Material Music Wire
Outside Diameter 19.18 mm
Part Type Metric
Rate 74.97 N/mm
SKU 76438CS
Solid Length 16.87 mm
Suggested Max Deflection 6.55 mm
Suggested Max Load 492.17 N
Total Coils 5.3
Wire Diameter 3.18 mm
The 76438CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter music wire, the 76438 spring design exhibits reliable strength across its 5.3 active coils, withstanding repeated compression cycles with a maximum load of 110.649 lbf without succumbing to fatigue.

We manufacture the 76438 design to provide a compression spring that is 1.102" long at rest and provides a consistent rate of 428.164 lbs/in along its recommended maximum of 0.258" deflection. For best results, your application should fully accommodate the inner (0.505") and outer (0.755") diameters of this spring and be designed for its closed & ground end configuration.
