76147CS - 0.709" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

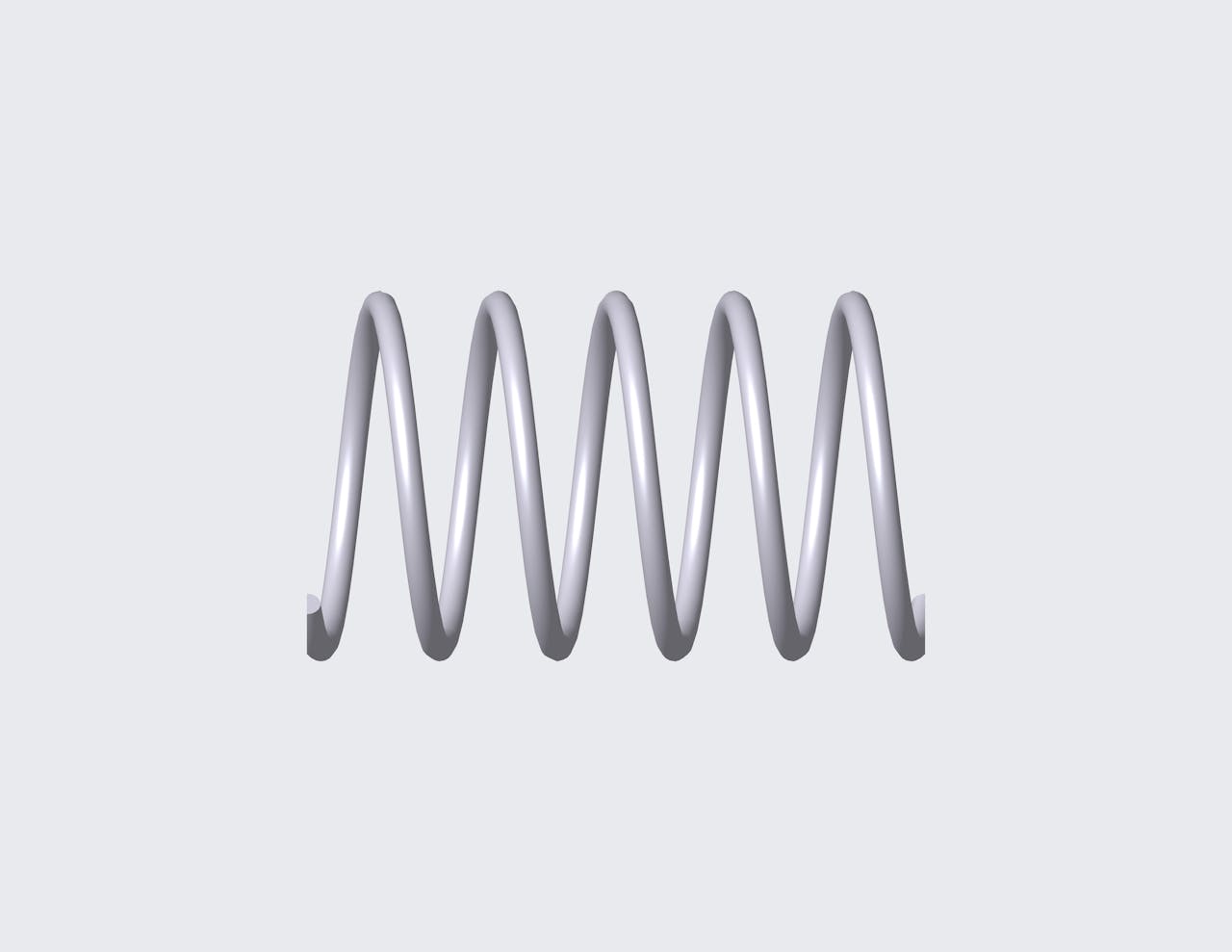

Compression spring manufactured from music wire with 5 coils and closed & ground ends. This spring features an O.D. of 0.425", and an I.D. of 0.362".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76147
Ends Closed & Ground
Finish None
Free Length 0.709 in
Inside Diameter 0.362 in
Material Music Wire
Outside Diameter 0.425 in
Part Type Metric
Rate 7.727 lbs/in
SKU 76147CS
Solid Length 0.157 in
Suggested Max Deflection 0.537 in
Suggested Max Load 4.152 lbf
Total Coils 5
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76147
Ends Closed & Ground
Finish None
Free Length 18.01 mm
Inside Diameter 9.19 mm
Material Music Wire
Outside Diameter 10.8 mm
Part Type Metric
Rate 1.35 N/mm
SKU 76147CS
Solid Length 3.99 mm
Suggested Max Deflection 13.64 mm
Suggested Max Load 18.47 N
Total Coils 5
Wire Diameter 0.79 mm
The 76147CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.031" diameter music wire, the 76147 spring design exhibits reliable strength across its 5 active coils, withstanding repeated compression cycles with a maximum load of 4.152 lbf without succumbing to fatigue.

We manufacture the 76147 design to provide a compression spring that is 0.709" long at rest and provides a consistent rate of 7.727 lbs/in along its recommended maximum of 0.537" deflection. For best results, your application should fully accommodate the inner (0.362") and outer (0.425") diameters of this spring and be designed for its closed & ground end configuration.
