Century Spring

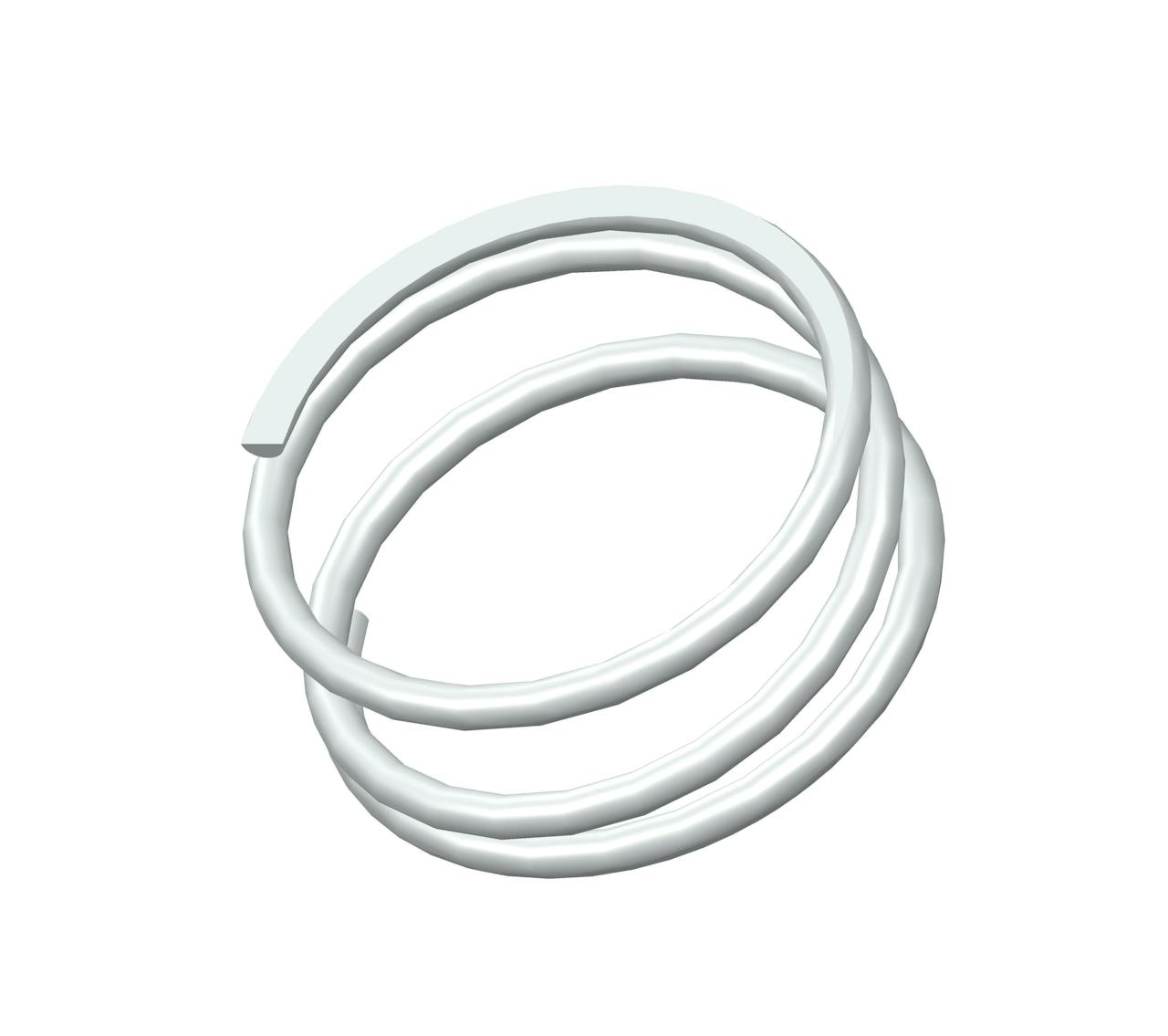

S-126CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 1.765", and an I.D. of 1.525".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-126
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 1.525 in
Material 302/304 Stainless Steel
Outside Diameter 1.765 in
Part Type Standard
Rate 58 lbs/in
SKU S-126CS
Solid Length 0.36 in
Suggested Max Deflection 0.39 in
Suggested Max Load 23 lbf
Total Coils 3
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-126
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 38.74 mm
Material 302/304 Stainless Steel
Outside Diameter 44.83 mm
Part Type Standard
Rate 10.16 N/mm
SKU S-126CS
Solid Length 9.14 mm
Suggested Max Deflection 9.91 mm
Suggested Max Load 102.3 N
Total Coils 3
Wire Diameter 3.05 mm
The compression spring S-126CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-126 compression spring design exhibits exceptional tensile strength and resilience.

The S-126 design is manufactured with a free length of 0.75", with an outer diameter of 1.765", an inner diameter of 1.525", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 58 lbs/in.

The S-126CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-126 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
