76045CS - 2.165" Music Wire Compression Spring

Inventory:
Estimated Lead Time

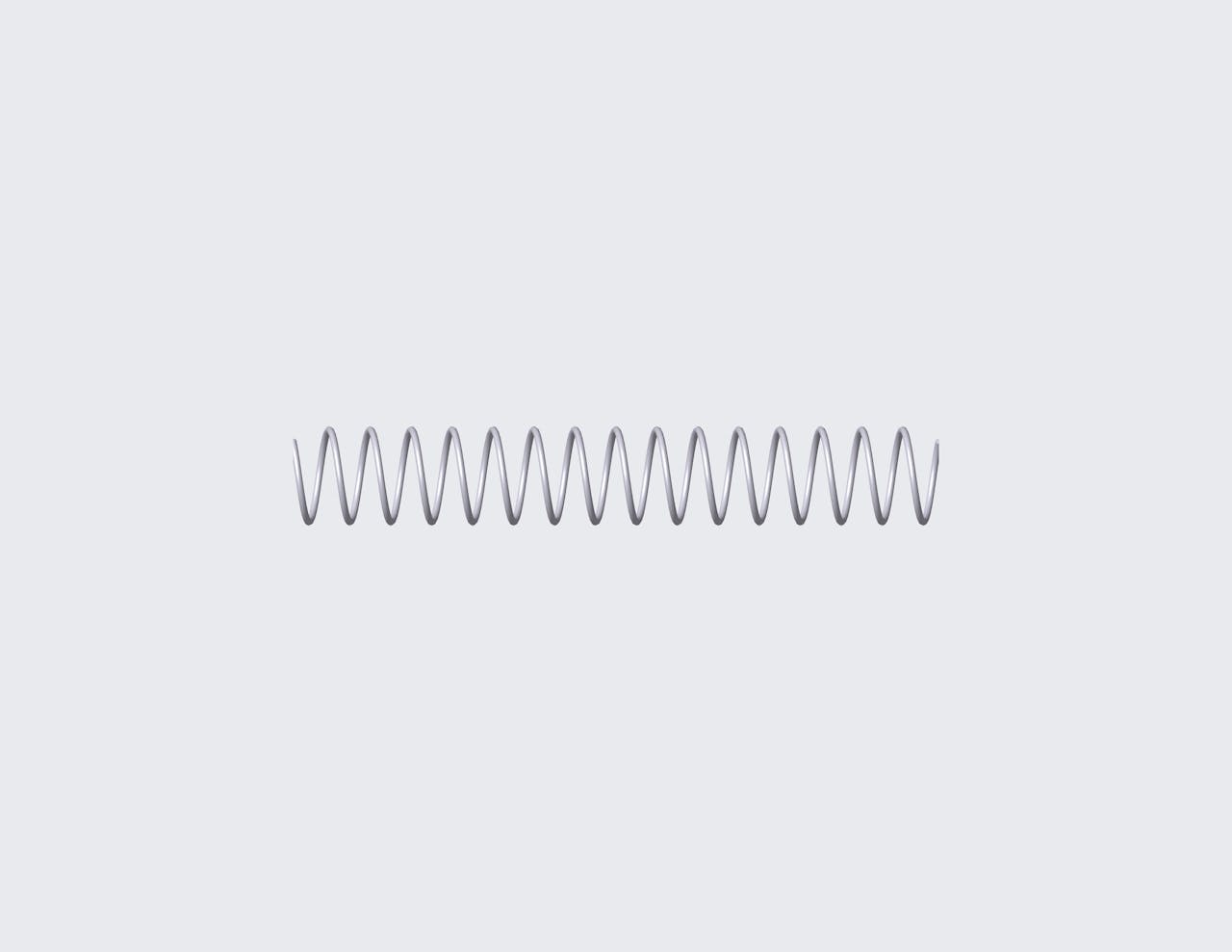

Compression spring manufactured from music wire with 15.6 coils and closed & ground ends. This spring features an O.D. of 0.333", and an I.D. of 0.285".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76045
Ends Closed & Ground
Finish None
Free Length 2.165 in
Inside Diameter 0.285 in
Material Music Wire
Outside Diameter 0.333 in
Part Type Metric
Rate 1.115 lbs/in
SKU 76045CS
Solid Length 0.369 in
Suggested Max Deflection 2.103 in
Suggested Max Load 2.345 lbf
Total Coils 15.6
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76045
Ends Closed & Ground
Finish None
Free Length 54.99 mm
Inside Diameter 7.24 mm
Material Music Wire
Outside Diameter 8.46 mm
Part Type Metric
Rate 0.2 N/mm
SKU 76045CS
Solid Length 9.37 mm
Suggested Max Deflection 53.42 mm
Suggested Max Load 10.43 N
Total Coils 15.6
Wire Diameter 0.61 mm
The compression spring 76045CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76045 compression spring design exhibits exceptional tensile strength and resilience.

The 76045 design is manufactured with a free length of 2.165", with an outer diameter of 0.333", an inner diameter of 0.285", and a total of 15.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.115 lbs/in.

The 76045CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 76045 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
