NN-77CS - 1.22" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

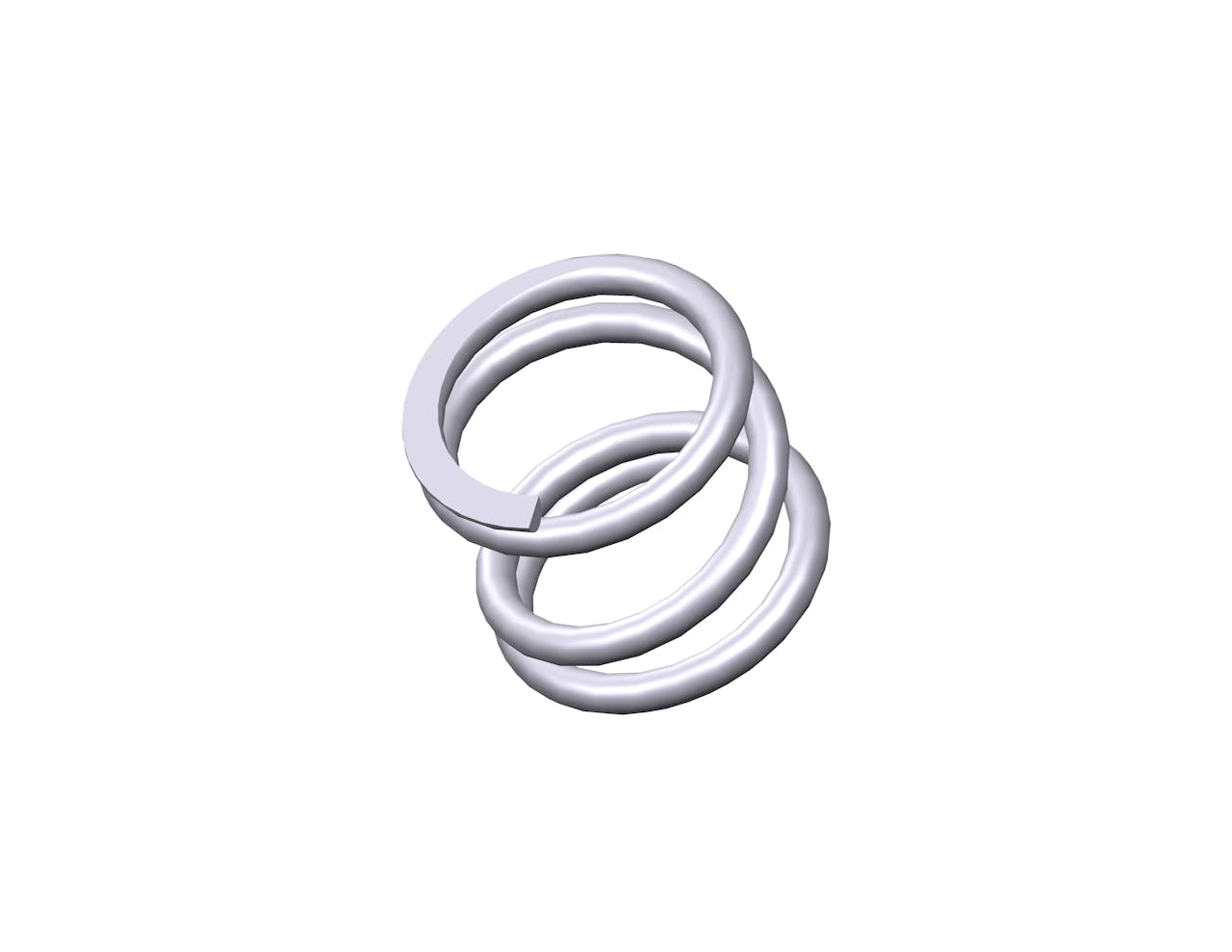

Compression spring manufactured from 302/304 stainless steel with 3.6 coils and closed & ground ends. This spring features an O.D. of 1.406", and an I.D. of 1.086".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name NN-77
Ends Closed & Ground
Finish None
Free Length 1.22 in
Inside Diameter 1.086 in
Material 302/304 Stainless Steel
Outside Diameter 1.406 in
Part Type Standard
Rate 288 lbs/in
SKU NN-77CS
Solid Length 0.576 in
Suggested Max Deflection 0.276 in
Suggested Max Load 80 lbf
Total Coils 3.6
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name NN-77
Ends Closed & Ground
Finish None
Free Length 30.99 mm
Inside Diameter 27.58 mm
Material 302/304 Stainless Steel
Outside Diameter 35.71 mm
Part Type Standard
Rate 50.43 N/mm
SKU NN-77CS
Solid Length 14.63 mm
Suggested Max Deflection 7.01 mm
Suggested Max Load 355.84 N
Total Coils 3.6
Wire Diameter 4.11 mm
The NN-77CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.162" diameter 302/304 stainless steel, the NN-77 spring design exhibits reliable strength across its 3.6 active coils, withstanding repeated compression cycles with a maximum load of 80 lbf without succumbing to fatigue.

We manufacture the NN-77 design to provide a compression spring that is 1.22" long at rest and provides a consistent rate of 288 lbs/in along its recommended maximum of 0.276" deflection. For best results, your application should fully accommodate the inner (1.086") and outer (1.406") diameters of this spring and be designed for its closed & ground end configuration.
