Century Spring

75831CS - 0.197" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

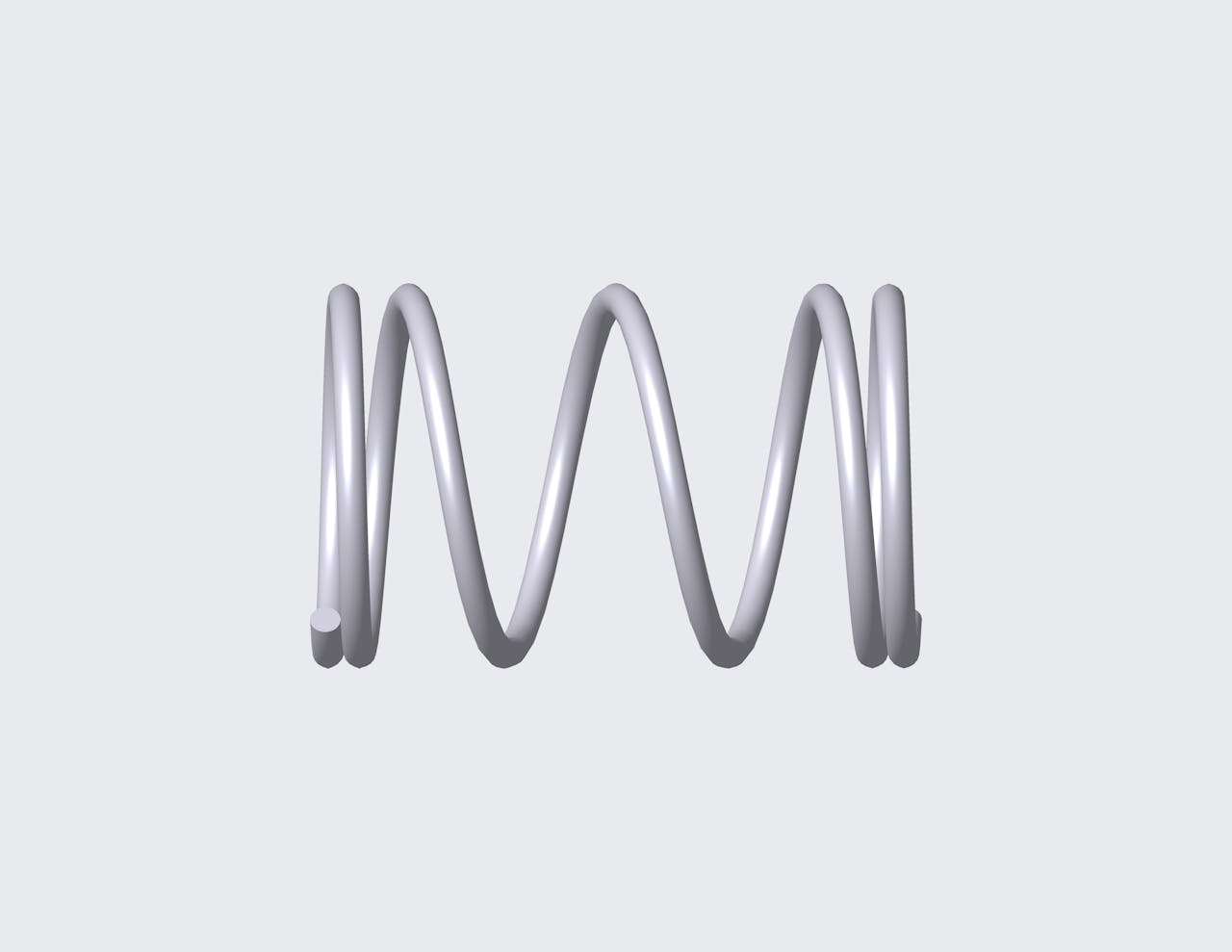

Compression spring manufactured from music wire with 5.2 coils and closed ends. This spring features an O.D. of 0.124", and an I.D. of 0.104".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75831
Ends Closed
Finish None
Free Length 0.197 in
Inside Diameter 0.104 in
Material Music Wire
Outside Diameter 0.124 in
Part Type Metric
Rate 2.833 lbs/in
SKU 75831CS
Solid Length 0.061 in
Suggested Max Deflection 0.182 in
Suggested Max Load 0.516 lbf
Total Coils 5.2
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75831
Ends Closed
Finish None
Free Length 5 mm
Inside Diameter 2.64 mm
Material Music Wire
Outside Diameter 3.15 mm
Part Type Metric
Rate 0.5 N/mm
SKU 75831CS
Solid Length 1.55 mm
Suggested Max Deflection 4.62 mm
Suggested Max Load 2.3 N
Total Coils 5.2
Wire Diameter 0.25 mm
The 75831CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.01" diameter music wire, the 75831 spring design exhibits reliable strength across its 5.2 active coils, withstanding repeated compression cycles with a maximum load of 0.516 lbf without succumbing to fatigue.

We manufacture the 75831 design to provide a compression spring that is 0.197" long at rest and provides a consistent rate of 2.833 lbs/in along its recommended maximum of 0.182" deflection. For best results, your application should fully accommodate the inner (0.104") and outer (0.124") diameters of this spring and be designed for its closed end configuration.
